Premium gray double-sided VHB tape with 25 mil acrylic foam core, paper liner, and exceptional bonding strength for industrial applications. 0.5 in x 36 yd rolls, 18 per case.

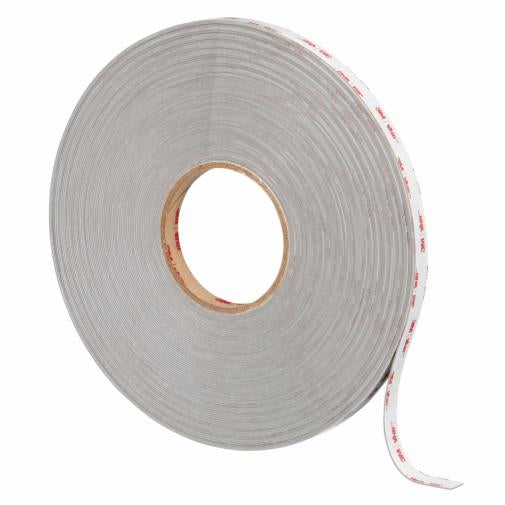

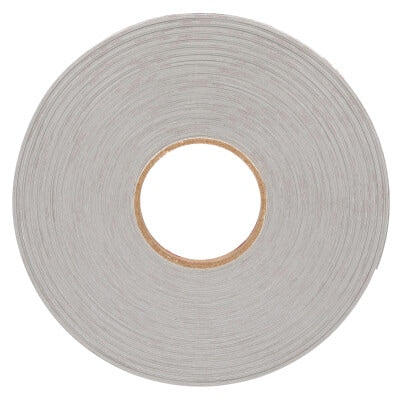

3M™ VHB™ Tape RP+060GP is a premium double-sided tape featuring a conformable acrylic foam core with paper liner construction, delivering exceptional bonding performance for industrial applications. With a total thickness of 25 mil (0.6 mm), this versatile tape combines high strength, viscoelasticity, and conformability to provide reliable adhesion to both high and medium surface energy metals and plastics. The pressure-sensitive adhesive technology ensures water resistance and tight sealing for long-term durability, making it an ideal alternative to mechanical fasteners such as rivets, welds, and screws.
The tape is compatible with a wide range of materials including aluminum, stainless steel, galvanized steel, composites, plastics, acrylic, polycarbonate, and ABS. It offers excellent indoor and outdoor durability, withstanding temperatures up to 450°F (230°C) for short-term use and up to 250°F (121°C) for long-term continuous applications. The seamless joining capability and minimal surface preparation requirements make installation quick and efficient, resulting in smooth and aesthetically pleasing finished surfaces.
Designed for applications across transportation, appliances, electronics, construction, signage, HVAC, and general industrial sectors, 3M™ VHB™ Tape RP+060GP enables the use of thinner, lighter-weight, and dissimilar materials compared to traditional fastening methods. The unique acrylic chemistry provides UV and chemical resistance, while the viscoelastic foam core offers exceptional energy absorption and stress relaxation properties. Each case contains 18 rolls of 36-yard length tape on 3-inch cores, providing substantial coverage for high-volume production environments.
Key Features
- Long-term durability with fast and easy-to-use all-acrylic bonding method providing immediate handling strength
- Smooth and seamless alternative to mechanical fasteners, rivets, welds, and screws with 25 mil thickness
- Paper liner construction for easier release and dimensional stability during converting
- Multi-surface adhesion to high and medium surface energy metals and plastics with minimal preparation
- Excellent bonding and sealing with closed-cell acrylic chemistry for extreme environment resistance
- Reliable indoor and outdoor performance withstanding temperatures up to 250°F for long-term use
- Vibration and fatigue resistant with high strength viscoelastic acrylic foam for energy absorption
- Compatible with aluminum, stainless steel, galvanized steel, composites, plastics, acrylic, polycarbonate, and ABS
- Enables use of thinner, lighter-weight, and dissimilar materials compared to traditional fastening
- Proven UV and chemical resistance for stable, dependable performance across diverse applications
Technical Specifications
| Specification |
Value |
| Product Name | 3M VHB Tape RP+060GP |
| Part Number | RP+060GP |
| UPC Code | 00068060002396 |
| Overall Width (Imperial) | 0.5 in |
| Overall Width (Metric) | 12.7 mm |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 32.9 m |
| Total Tape Thickness | 25 mil (0.6 mm) |
| Core Size (Imperial) | 3 in |
| Core Size (Metric) | 76.2 mm |
| Liner Material | Densified Kraft Paper |
| Adhesive Type | Modified Acrylic |
| Foam Type | Conformable |
| Product Color | Gray |
| Maximum Operating Temperature (Short-term) | 450°F (230°C) for up to 4 hours |
| Maximum Operating Temperature (Long-term) | 250°F (121°C) |
| Minimum Operating Temperature | 50°F (10°C) |
| Indoor/Outdoor Rating | Indoor/Outdoor |
| Shelf Life | 24 Months |
| Rolls Per Case | 18 Rolls |
| Brand | VHB |
| Surface Energy Compatibility | High Surface Energy (HSE) and Medium Surface Energy (MSE) |
| Compatible Materials | Aluminum, Stainless Steel, Galvanized Steel, Composites, Plastics, Acrylic, Polycarbonate, ABS |
| Smallest Saleable Unit | Roll |
| Industries | Appliance, Consumer Goods, Converter Solutions, General Industrial, MRO, Metalworking, Signage, Transportation |
