Industrial-grade double-sided foam adhesive tape with 45 mil thickness, polycoated kraft paper liner, and immediate handling strength for bonding painted and powder-coated surfaces without curing time.

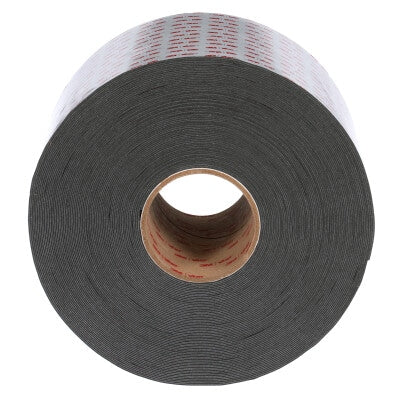

3M™ VHB™ Tape 5952P is a premium double-sided foam adhesive tape engineered for industrial bonding applications on painted and powder-coated surfaces. This advanced tape features a 45 mil (1.1 mm) thick acrylic foam core with multi-purpose modified acrylic adhesive that delivers immediate handling strength without requiring any curing time. The closed-cell acrylic chemistry provides exceptional bonding performance while maintaining conformability and flexibility, making it an ideal alternative to mechanical fasteners such as rivets, welds, and screws.
Designed for high-performance applications across multiple industries including transportation, appliances, electronics, construction, signage, and metalworking, this tape offers superior shear strength, vibration resistance, and fatigue resistance. The polycoated kraft paper liner ensures dimensional stability and efficient converting through automation processes such as kiss-cutting applications. With its black color and 6-inch width by 36-yard length configuration, it provides versatile coverage for large-scale industrial projects while maintaining professional aesthetics on thin, lightweight, and dissimilar materials.
The tape excels in both short-term use at temperatures up to 300°F (149°C) for up to four hours and long-term use withstanding continuous temperatures up to 200°F (93°C). Its viscoelastic properties provide unique energy-absorbing and stress-relaxing capabilities, making it a reliable solution for demanding bonding and sealing applications. The advanced acrylic technology offers excellent indoor and outdoor durability, UV resistance, and chemical resistance, ensuring stable and dependable performance in extreme environments.
Key Features
- Immediate handling strength with no curing time required
- Advanced closed-cell acrylic chemistry for secure bonding on painted and powder-coated surfaces
- 45 mil (1.1 mm) thickness provides optimal balance of strength and conformability
- Replaces mechanical fasteners like rivets, welds, and screws for faster production
- Viscoelastic acrylic foam provides vibration and fatigue resistance with energy absorption
- Polycoated kraft paper liner enables efficient automated converting and kiss-cutting applications
- Temperature resistant from -20°F to 300°F (-29°C to 149°C) for short-term use
- Long-term temperature durability up to 200°F (93°C) with excellent indoor/outdoor performance
- High shear strength and conformability for thin, lightweight, and dissimilar materials
- UV and chemical resistant for stable performance in extreme environments
Technical Specifications
| Specification |
Value |
| Product Model | 3M VHB Tape 5952P |
| Part Number | 5952P |
| 3M Product Number | 5952 |
| 3M ID | 7010535784 |
| Tape Thickness | 45 mil (1.1 mm) |
| Overall Width (Imperial) | 6 inches |
| Overall Width (Metric) | 152.4 mm |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.91 meters |
| Core Size (Imperial) | 3 inches |
| Product Color | Black |
| Liner Material | Polycoated Kraft Paper |
| Adhesive Type | Modified Acrylic |
| Foam Type | Very Conformable Acrylic Foam |
| Maximum Operating Temperature (Short-term) | 300°F (149°C) for up to 4 hours |
| Maximum Operating Temperature (Long-term) | 200°F (93°C) |
| Minimum Operating Temperature | -20°F (-29°C) |
| Indoor/Outdoor Rating | Indoor/Outdoor |
| Brand | 3M VHB |
| Smallest Saleable Unit | Roll |
| Shear Strength | High |
| Conformability | High |
| Vibration Resistance | Excellent |
| Surface Adhesion | Multi-purpose Modified Acrylic |
| UV Resistance | Excellent |
| Chemical Resistance | Excellent |
| Suitable Applications | Bonding glass to metal, panel bonding, vehicle roof vents, gasket assembly, rail car construction, mounting and trim attachment, TV stand trim |
| Industries | Transportation, Appliance, Electronics, Construction, Signage, Metalworking, General Industrial |
| Curing Time | No curing time required - immediate handling strength |
| Usage Classification | Industrial/Occupational use only |
