Premium gray acrylic foam tape for architectural panel bonding with 36-yard length, 1-inch width, and 90-mil thickness. Provides permanent, invisible fastening with high strength and long-term durability. UL GREENGUARD certified for LEED compliance.

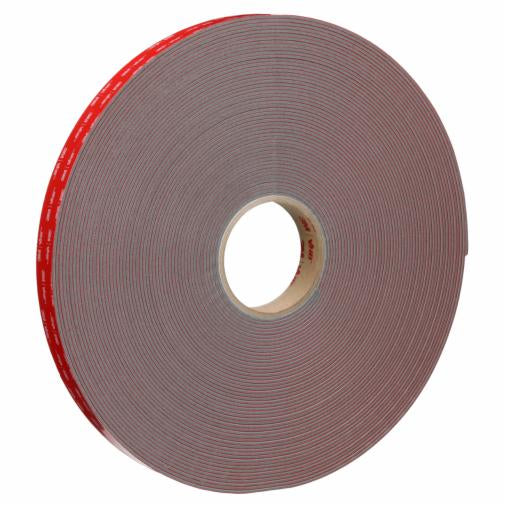

The 3M™ VHB™ Architectural Panel Tape G90F is a premium gray, 0.090 inch (2.3 mm) multi-purpose acrylic adhesive foam tape with conformable foam core and polyethylene film liner. This innovative bonding solution combines exceptional strength with superior conformability, making it ideal for architectural applications requiring permanent, invisible fastening. The tape features a durable acrylic adhesive with viscoelastic properties that provides extraordinarily strong bonding to a broad range of substrates including aluminum, stainless steel, galvanized steel, composites, plastics, acrylic, polycarbonate, ABS, and painted or sealed wood and concrete.
Designed specifically for architectural panel applications, this VHB tape serves as a proven alternative to structural silicone, spacer tapes, gaskets, screws, rivets, and welds. It provides fast and easy-to-use permanent bonding with high strength and long-term durability, creating a virtually invisible fastening that keeps surfaces smooth and aesthetically pleasing. The pressure-sensitive adhesive bonds on contact to provide immediate handling strength, allowing architects and builders to use thinner, lighter weight, and dissimilar materials with confidence.
With over 30 years of successful use in iconic buildings worldwide, the 3M VHB Architectural Panel Tape G90F is UL GREENGUARD and UL GREENGUARD Gold Certified, contributing to LEED credits. It creates a permanent seal against water, moisture, and environmental elements while maintaining excellent shear strength, surface adhesion, and temperature resistance. This trusted industrial-grade tape is chemically resistant, UV stable, and temperature stable, capable of withstanding extreme conditions from Dubai's heat to Canada's cold.
Key Features
- Fast and easy-to-use permanent bonding method with high strength and long-term durability
- Virtually invisible fastening keeps surfaces smooth and aesthetically pleasing
- Pressure-sensitive adhesive bonds on contact for immediate handling strength
- UL GREENGUARD and UL GREENGUARD Gold Certified, contributing to LEED credits
- Creates permanent seal against water, moisture, and environmental elements
- Excellent shear strength, conformability, surface adhesion and temperature resistance
- Compatible with aluminum, stainless steel, galvanized steel, composites, plastics, acrylic, polycarbonate, ABS, painted and sealed wood and concrete
- Allows use of thinner, lighter weight and dissimilar materials
- Proven alternative to structural silicone, spacer tapes, gaskets, screws, rivets and welds
- Chemically resistant, UV stable and temperature stable for extreme conditions
Technical Specifications
| Specification |
Value |
| Product Name | 3M VHB Architectural Panel Tape G90F |
| Part Number | G90F |
| 3M Product ID | 7010535678 |
| Overall Width (Imperial) | 1 in |
| Overall Width (Metric) | 25.4 mm |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 32.91 m |
| Thickness | 90 mil (2.3 mm) |
| Product Color | Gray |
| Adhesive Type | Acrylic |
| Core Material | Multi-purpose acrylic foam core |
| Liner Material | Polyethylene Film |
| Core Size (Imperial) | 3 in |
| Application Type | Architectural Panel |
| Brand | VHB™ |
| Industry | Construction |
| Smallest Saleable Unit | Roll |
| Package Quantity | 9 Roll/Case |
| Certifications | UL GREENGUARD, UL GREENGUARD Gold |
| Use Type | Industrial/Occupational use only |
