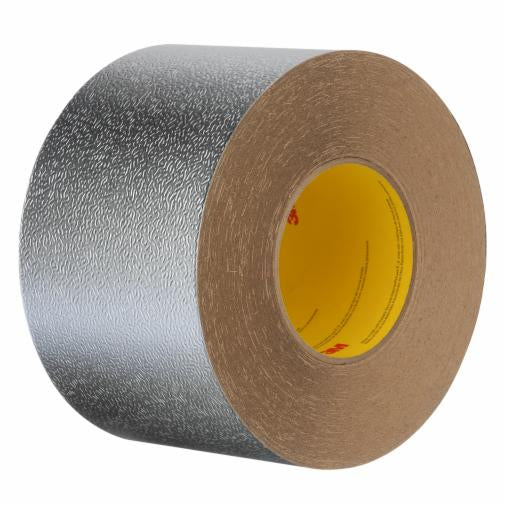

Shop 3M Ventureclad Enhanced Metal Jacketing Tape 1577 CWE-EMJ In Iraq Best Prices
Premium 4-inch x 50-yard metal jacketing tape with zero permeability vapor barrier protection, extreme weather resistance, and 10-year warranty for HVAC and insulation applications.
The 3M™ Ventureclad™ Enhanced Metal Jacketing 1577 CWE-EMJ is a premium all-weather jacketing solution designed for HVAC ductwork, pipes, and insulation protection. This multi-layered laminate tape features zero permeability construction that acts as a complete vapor barrier, protecting against moisture, mold, ultraviolet (UV) radiation, and extreme environmental conditions. The advanced clear coat layer provides superior durability and resistance to weathering, making it ideal for both interior and exterior applications in commercial, industrial, and marine environments.
This professional-grade tape measures 4 inches wide by 50 yards long per roll, with 4 rolls included per case for convenient bulk purchasing. The 6 mil thick acrylic-backed laminate construction delivers exceptional puncture and tear resistance without requiring specialized installation tools. It bonds and seals effectively in cold, hot, and humid conditions ranging from -10°F (-23°C) during installation to a service range of -40°F (-40°C) to 248°F (120°C), ensuring reliable performance across diverse climate conditions.
Backed by a comprehensive 10-year 3M warranty when applied according to 3M installation guidelines, this tape is Greenguard Gold Certified and qualifies for LEED credits. The silver embossed finish provides a clean, professional appearance with no sharp edges, fasteners, or banding required. Designed to protect insulation materials including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate, and conformable aerogel, it offers comprehensive protection against vapor and chemical atmospheres, water intrusion, fungi, corrosion, oil, and grease.
Key Features
- Quick and simple installation with no specialized tools required
- Highly resistant to punctures, tears, and extreme weathering conditions
- Zero permeability vapor barrier for complete moisture protection
- Bonds and seals effectively from -10°F to 248°F with service range of -40°F to -40°C
- Silver embossed finish with clean appearance and no sharp edges
- Greenguard Gold Certified and LEED credit qualified
- 10-year 3M warranty when applied per installation guidelines
- Protects against UV radiation, mold, fungi, corrosion, oil, and grease
- Multi-layered laminate construction with clear coat protection layer
- Suitable for fiberglass, polystyrene, mineral wool, and foam insulation materials
Technical Specifications
| Specification |
Value |
| Product Number | 1577 CWE-EMJ |
| 3M ID | 7100311481 |
| UPC Code | 00068060005267 |
| Overall Width (Imperial) | 4 inches |
| Overall Width (Metric) | 101.6 mm |
| Overall Length (Imperial) | 50 yards |
| Overall Length (Metric) | 45.72 meters |
| Backing Material | Multi-layered Laminate |
| Backing Thickness (Imperial) | 6 mil |
| Backing Thickness (Metric) | 0.15 mm |
| Total Tape Thickness without Liner (Imperial) | 9 mil |
| Total Tape Thickness without Liner (Metric) | 0.2286 mm |
| Primary Liner | Polycoated Natural Kraft Paper |
| Adhesive Type | Acrylic |
| Product Color | Silver |
| Finish | Embossed |
| Tensile Strength (Imperial) | 100 lb/in |
| Tensile Strength (Metric) | 27 N/25mm |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 248°F |
| Maximum Operating Temperature (Celsius) | 120°C |
| Installation Temperature Range | -10°F (-23°C) and above |
| Shelf Life | 24 months |
| Quantity per Case | 4 rolls |
| Brand | VentureClad™ |
| Specifications Met | UL 723, ASTM E84 (0/5 Flame/Smoke Rating) |
| Warranty | 10-year 3M warranty when applied per installation guidelines |
| Certifications | Greenguard Gold Certified, LEED credit qualified |
| Applications | Ductwork, Exterior Seams & Joints, HVAC Maintenance, Insulation, Sealing HVAC & Duct Work |
| Industries | Commercial, Construction, Food and Beverage, General Industrial, Industrial, MRO, Manufacturing, Marine, Military & Government |
