Shop 3M Ventureclad Enhanced Metal Jacketing 1577 46 in X 25 yd In Iraq Best Prices
Premium multi-layered metal jacketing tape with zero permeability for HVAC ductwork and pipe insulation protection. Features 5-mil thickness, acrylic adhesive, and operates from -40°F to 248°F with 10-year warranty.

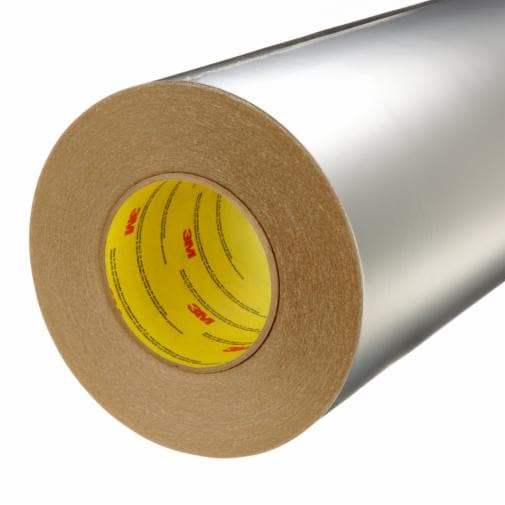

The 3M™ Ventureclad™ Enhanced Metal Jacketing 1577 CW-EMJ is a premium all-weather jacketing solution designed for various HVAC and insulation applications. This multi-layered laminate tape features zero permeability and acts as a complete vapor barrier, protecting insulated ductwork and pipes against moisture, mold, ultraviolet (UV) radiation, and extreme environmental conditions. The product comes in a convenient 46-inch width by 25-yard length roll format with a single roll per case.
This advanced jacketing tape offers exceptional durability and weather resistance with a clear coat layer of protection that enhances its resistance to harsh environmental factors. The 5-mil thick backing material is highly resistant to punctures and tears, ensuring long-lasting performance in demanding applications. It bonds and seals effectively in cold, hot, and humid conditions, maintaining service performance from -40°F (-40°C) to 248°F (120°C), making it suitable for diverse climatic conditions.
Designed to protect various insulation materials including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate, and conformable aerogel, the Ventureclad tape provides comprehensive protection against vapor and chemical atmospheres as well as water, fungi, corrosion, oil, and grease intrusion. The product features a smooth silver finish with no sharp edges, fasteners, or banding required for installation. Backed by a 10-year 3M warranty when applied per 3M installation guidelines and Greenguard Gold Certified for LEED credit qualification, this is a professional-grade solution for insulation jacketing.
Key Features
- Quick and simple installation with no specialized tools required
- Highly resistant to punctures, tears, and extreme weather conditions
- Zero permeability vapor barrier protection for HVAC systems
- Operates reliably from -40°F (-40°C) to 248°F (120°C)
- Protects against moisture, mold, UV, fungi, corrosion, oil and grease
- Multi-layered laminate with clear coat protection layer
- Greenguard Gold Certified for LEED credit qualification
- Bonds and seals in cold, hot and humid conditions
- Smooth silver finish with no sharp edges or fasteners
- Backed by 10-year 3M warranty when applied per guidelines
Technical Specifications
| Specification |
Value |
| Product Number | 3M 1577 CW-EMJ |
| 3M ID | 7100311664 |
| UPC Code | 50068060005309 |
| Overall Width (Imperial) | 46 inches |
| Overall Width (Metric) | 1,168.4 mm |
| Overall Length (Imperial) | 25 yards |
| Overall Length (Metric) | 22.86 meters |
| Backing Material | Multi-layered Laminate |
| Backing Thickness (Imperial) | 5 mil |
| Backing Thickness (Metric) | 0.13 mm |
| Total Tape Thickness without Liner (Imperial) | 7 mil |
| Total Tape Thickness without Liner (Metric) | 0.177 mm |
| Adhesive Type | Acrylic |
| Primary Liner | Polycoated Natural Kraft Paper |
| Product Color | Silver |
| Tensile Strength (Imperial) | 100 lb/in |
| Tensile Strength (Metric) | 27 N/25mm |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 248°F |
| Maximum Operating Temperature (Celsius) | 120°C |
| Shelf Life | 24 months |
| Specifications Met | UL 723, ASTM E84 (0/5 Flame/Smoke Rating) |
| Brand | VentureClad™ |
| Warranty | 10-year 3M warranty when applied per installation guidelines |
| Certifications | Greenguard Gold Certified - Qualifies for LEED credits |
| Packaging | 1 Roll per Case |
Order 3M Ventureclad Enhanced Metal Jacketing 1577 46 in X 25 yd at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
