Industrial-grade ASJ facing tape with cold weather acrylic adhesive, white kraft/scrim/foil backing, ideal for HVAC ductwork sealing and vapor barriers in extreme temperatures from -40°F to 240°F.

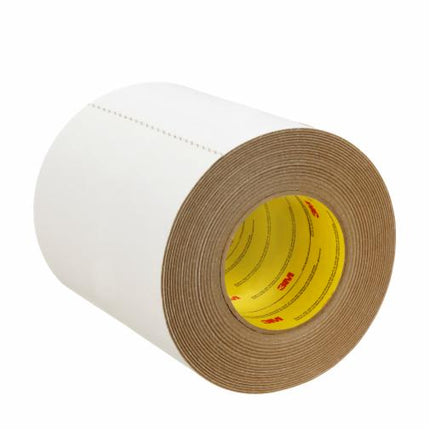

3M™ Venture Tape™ ASJ Facing Tape 1540CW is a premium industrial-grade sealing tape specifically engineered for cold weather and high humidity applications. This 10.8 mil tri-directional reinforced tape features a white kraft, scrim, and foil laminate backing coated with a proprietary pressure-sensitive solvent acrylic adhesive designed for superior performance in demanding temperature and humidity conditions. The tape is ideal for use as a closure seal on all service jacket (ASJ) faced duct piping systems or as a vapor seal on ASJ-faced ductboard and pipe insulation.
The cold weather acrylic adhesive is specifically formulated to perform exceptionally well in extreme temperature ranges from -40°F/-40°C to 240°F/116°C, while maintaining excellent holding power for extended periods. The flexible backing conforms seamlessly to curved and irregular surfaces, ensuring consistent application even in challenging installation environments. With integrated mold inhibitor agents, this tape helps prevent mold buildup in the adhesive caused by humid and damp conditions, maintaining adhesive strength and effectiveness over time.
This versatile tape offers high puncture and tear resistance, ensuring long-term durability in various applications and environments. UL723 Classified with a 5/0 Flame/Smoke Rating and meeting ASTM1136 Types I, II, III, and IV standards, the tape applies easily without special tools or application methods. Each case contains 8 rolls of 45.7 meters (50 yards) each, providing comprehensive coverage for large-scale HVAC and ductwork projects.
Key Features
- White kraft, scrim and foil laminate backing ideal as vapor seal on ductboard and pipe insulation
- Cold weather acrylic adhesive specifically designed for -40°F to 240°F temperature range performance
- Mold inhibitor helps maintain adhesive strength and effectiveness in humid conditions
- High puncture and tear resistance ensuring long-term durability in demanding applications
- Flexible backing conforms to curved and irregular surfaces for consistent application
- Tri-directional reinforcement resists out-of-plane shear loads and maintains placement
- UL723 Classified with 5/0 Flame/Smoke Rating for safety compliance
- ASTM1136 Type I, II, III and IV compliant for industry standards
- Easy installation without special tools or application methods required
- Excellent aging properties resist lifting and curling over extended periods
Technical Specifications
| Specification |
Value |
| Product Number | 1540CW |
| 3M ID | 7100087495 |
| UPC | 00051128956571 |
| Backing Material | White kraft, scrim and foil laminate |
| Backing Thickness (Imperial) | 6.5 mil |
| Backing Thickness (Metric) | 0.16 mm |
| Overall Thickness | 10.8 mil |
| Overall Width (Imperial) | 4.87 in |
| Overall Width (Metric) | 123.75 mm |
| Overall Length (Imperial) | 50 yd |
| Overall Length (Metric) | 45.7 m |
| Rolls Per Case | 8 |
| Adhesive Type | Cold weather acrylic, pressure-sensitive solvent acrylic |
| Product Color | White |
| Elongation at Break | 2% |
| Tensile Strength (Imperial) | 40 lb/in |
| Tensile Strength (Metric) | 70.1 N/100mm |
| Service Temperature Range | -40°F to 240°F (-40°C to 116°C) |
| Shelf Life | 12 months |
| UL Classification | UL723 Classified (5/0 Flame/Smoke Rating) |
| ASTM Compliance | ASTM1136, Type I, II, III and IV |
| Brand | Venture Tape™ |
| Application | Exterior seams & joints, interior seams & joints, sealing HVAC & ductwork |
| Reinforcement | Tri-directional reinforced |
| Special Features | Mold inhibitor, cold weather performance, flexible backing |
Order 3M Venture Tape ASJ Facing Tape 1540CW White 123.75mm at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
