Professional-grade ASJ facing tape with cold weather acrylic adhesive for HVAC ductwork sealing. Features mold inhibitor, high tear resistance, and flexible backing. UL 723 classified, ASTM1136 compliant.

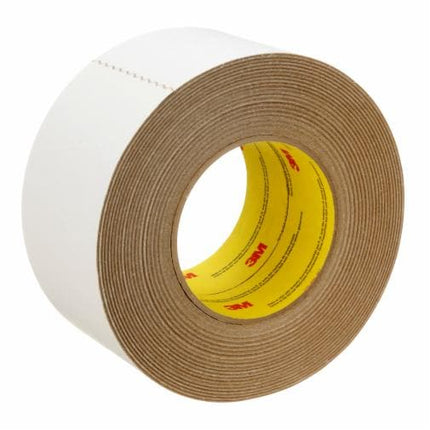

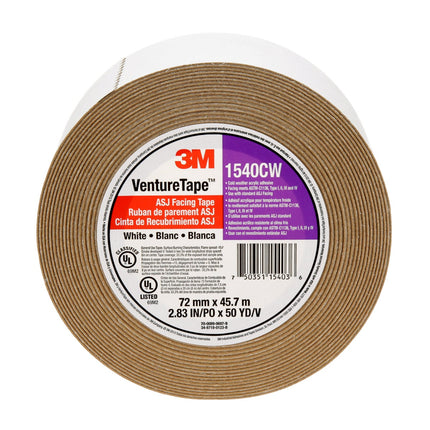

3M™ Venture Tape™ ASJ Facing Tape 1540CW is a premium industrial-grade duct sealing tape specifically engineered for cold weather and high humidity applications. This advanced tape features a white kraft, scrim and foil laminate backing combined with a proprietary cold weather acrylic adhesive, making it ideal for sealing all service jacket (ASJ) faced duct piping systems and as a vapor seal on ASJ-faced ductboard and pipe insulation. The tape measures 99mm in width with a total length of 45.7 meters per roll, packaged in convenient 12-roll cases for bulk applications.
Designed for demanding HVAC and duct work environments, this 10.8 mil tri-directional reinforced tape delivers exceptional performance across extreme temperature ranges from -40°F to 240°F (-40°C to 116°C). The flexible backing conforms seamlessly to curved and irregular surfaces, while the cold weather acrylic adhesive provides quick stick at normal temperatures and excellent low-temperature performance. Built-in mold inhibitor agents help prevent mold buildup in humid and damp conditions, ensuring long-term adhesive strength and effectiveness.
With its high puncture and tear resistance, this tape provides solid holding power for extended periods while resisting lifting and curling. The product is UL 723 Classified with a 15/0 Flame/Smoke Rating and meets ASTM1136 standards for Types I, II, III, and IV. Installation is straightforward and requires no special tools or application methods, making it suitable for professional contractors and industrial applications. Each case contains 12 rolls for maximum convenience and cost efficiency.
Key Features
- White kraft, scrim and foil laminate backing ideal for vapor sealing on ductboard and pipe insulation
- Cold weather acrylic adhesive specifically formulated for extreme temperature performance from -40°F to 240°F
- Integrated mold inhibitor maintains adhesive strength and prevents mold buildup in humid conditions
- High puncture and tear resistance ensures durability and long-term holding power with no lifting or curling
- Flexible backing conforms to curved and irregular surfaces for consistent application without special tools
- 10.8 mil tri-directional reinforced construction provides superior strength and out-of-plane shear load resistance
- UL 723 Classified with 15/0 Flame/Smoke Rating meets ASTM1136 Type I, II, III, and IV standards
- Quick stick at normal temperatures with excellent low-temperature bonding and aging properties
Technical Specifications
| Specification |
Value |
| Product Number | 1540CW |
| 3M ID | 7100043969 |
| UPC | 00051128956588 |
| Brand | 3M Venture Tape™ |
| Product Color | White |
| Overall Width (Metric) | 99 mm |
| Overall Width (Imperial) | 3.89 inches |
| Overall Length (Metric) | 45.7 m |
| Overall Length (Imperial) | 50 yards |
| Backing Thickness (Metric) | 0.16 mm |
| Backing Thickness (Imperial) | 6.5 mil |
| Total Tape Thickness | 10.8 mil |
| Adhesive Type | Cold Weather Acrylic |
| Backing Material | White kraft, scrim and foil laminate |
| Tensile Strength (Metric) | 70.1 N/100mm |
| Tensile Strength (Imperial) | 40 lb/in |
| Elongation at Break | 2% |
| Service Temperature Range | -40°F to 240°F (-40°C to 116°C) |
| Shelf Life | 12 months |
| UL Classification | UL 723 Classified (15/0 Flame/Smoke Rating) |
| ASTM Standard | ASTM1136 Type I, II, III, and IV |
| Rolls Per Case | 12 rolls |
| Application | Exterior Seams & Joints, Interior Seams & Joints, Sealing HVAC & Duct Work |
| Reinforcement | Tri-directional reinforced |
| Special Features | Mold inhibitor, pressure-sensitive, solvent acrylic adhesive |
Order 3M Venture Tape ASJ Facing 1540CW White 99mm at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
