Professional aluminum foil tape with cold-weather acrylic adhesive for HVAC, ductwork, and heat shielding applications. Hand-tearable, conformable, and rated for extreme temperatures from -40°F to 260°F. UL723 certified with 24 rolls per case.

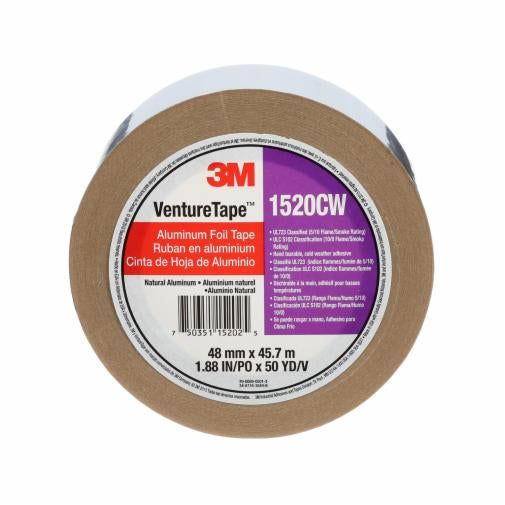

3M™ Venture Tape™ Aluminum Foil Tape 1520CW is a professional-grade, conformable adhesive tape designed for multi-purpose sealing and masking applications in HVAC, ductwork, and general-purpose heat shielding. This durable tape features a nominal 1.8 mil aluminum foil backing coated with cold-weather acrylic adhesive, specifically engineered to perform in extreme temperature conditions ranging from -40°F (-40°C) to 260°F (127°C). The flexible foil construction easily conforms to curved, irregular surfaces, and both fibrous and sheet metal ductwork, making it ideal for professional installers and maintenance professionals.
With a total tape thickness of 3.2 mil and dimensions of 48 mm x 45.7 m (1.88 in x 50 yd), this pressure-sensitive tape is hand-tearable and requires no special tools or application methods for installation. The tape maintains excellent adhesion and form without lifting or curling over extended periods. It meets rigorous safety standards including UL723 flame/smoke rating (10/10) and CAN/ULC S102 classification, ensuring compliance with building codes and safety regulations. Each case contains 24 rolls, providing ample supply for large-scale projects.
The polycoated kraft liner provides easy release and clean application. This industrial-grade tape excels in demanding environments where temperature fluctuations and humidity variations are common. Its superior tensile strength of 21 lb/in and 9% elongation at break ensure reliable performance in critical sealing operations. With a 12-month shelf life, this tape is suitable for exterior seams and joints, interior seams and joints, and all types of HVAC and duct work applications.
Key Features
- Multi-purpose foil tape suitable for various industrial applications including HVAC and ductwork
- Nominal 1.8 mil aluminum foil backing provides excellent performance on fibrous and sheet metal ducts
- Cold-weather acrylic adhesive specifically designed for adhesion at temperatures as low as -10°F (-23°C)
- Flexible foil backing conforms easily to curved and irregular surfaces without cracking or splitting
- Hand-tearable and easy to install without special tools, application methods, or additional equipment
- Pressure-sensitive adhesive with quick bonding and excellent holding power over extended periods
- UL723 classified with 10/10 flame/smoke rating and CAN/ULC S102 certification for building code compliance
- Service temperature range from -40°F (-40°C) to 260°F (127°C) for demanding environmental conditions
- Polycoated kraft liner provides easy release and clean, mess-free application
- Maintains form without lifting or curling, ensuring long-lasting durability and reliability
Technical Specifications
| Specification |
Value |
| Product Number | 1520CW |
| Brand | 3M Venture Tape™ |
| Adhesive Type | Cold-Weather Acrylic (Pressure-Sensitive) |
| Backing Material | Aluminum Foil |
| Backing Thickness (Imperial) | 1.8 mil |
| Backing Thickness (Metric) | 0.05 mm |
| Total Tape Thickness (Imperial) | 3.2-3.3 mil |
| Total Tape Thickness (Metric) | 0.08 mm |
| Width (Imperial) | 1.88 inches |
| Width (Metric) | 48 mm |
| Length (Imperial) | 50 yards |
| Length (Metric) | 45.7 meters |
| Tensile Strength (Imperial) | 21 lb/in |
| Tensile Strength (Metric) | 36.8 N/100mm |
| Elongation at Break | 9% |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 260°F |
| Maximum Operating Temperature (Celsius) | 127°C |
| Application Temperature (Fahrenheit) | -10°F and above |
| Application Temperature (Celsius) | -23°C and above |
| Primary Liner | Polycoated Kraft |
| Product Color | Silver |
| Shelf Life | 12 months |
| Quantity per Case | 24 rolls |
| UPC Code | 00750351152025 |
| 3M ID | 7100043715 |
| Safety Rating | UL723 (10/10 Flame/Smoke Rating) |
| Additional Certification | CAN/ULC S102 Classification |
| Recommended Applications | HVAC ductwork, fibrous ductboard, sheet metal ducts, heat shielding, light reflecting, exterior and interior seams and joints |
Order 3M Venture Tape Aluminum Foil Tape 1520CW Silver 48mm at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
