Description

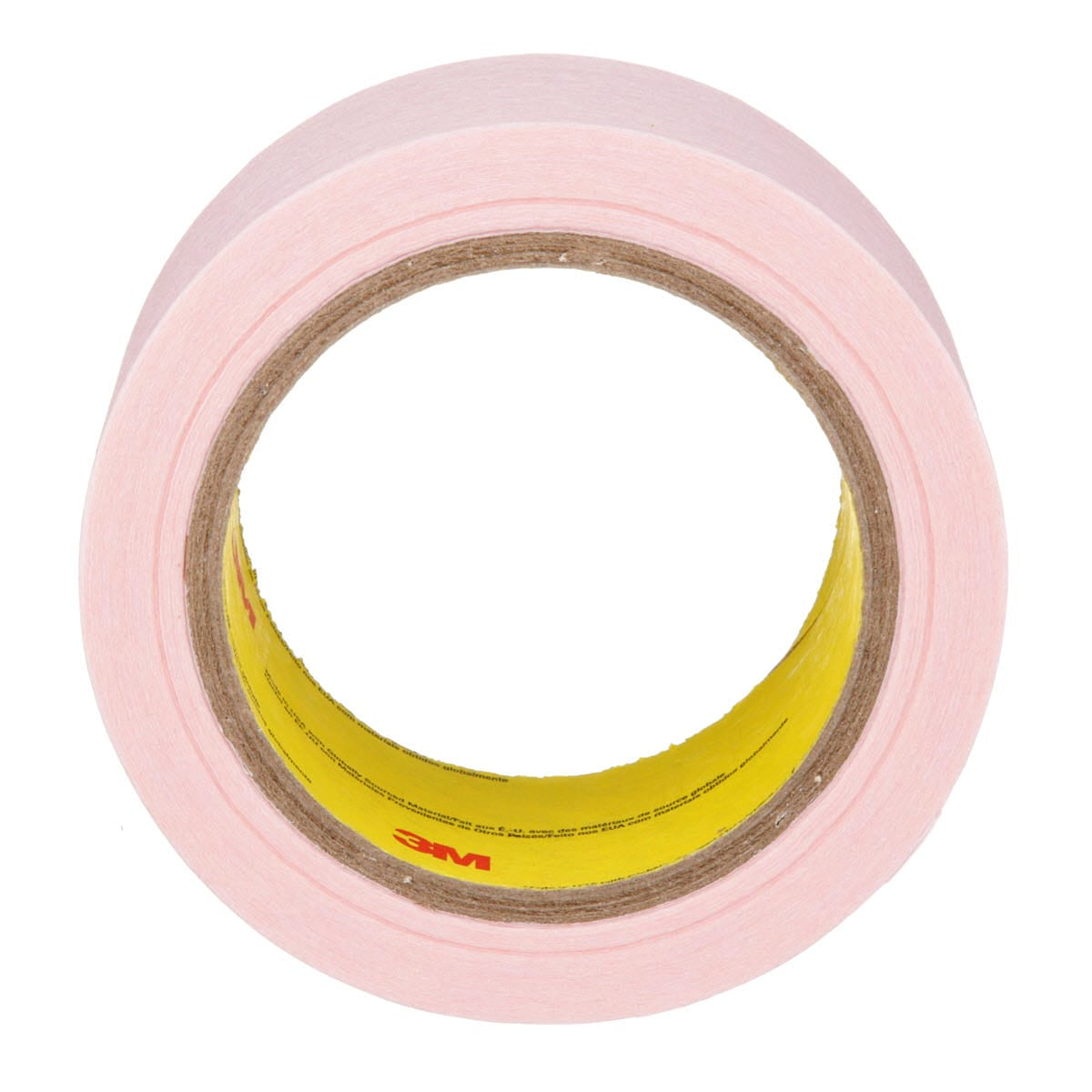

Shop 3M Venting Tape 3294 Pink 1.5 Inch 36 Yard Roll In Iraq Best Prices

Pink non-woven venting tape with high air/gas permeability for foam-in-place insulation in appliance manufacturing. Strip-coated acrylic adhesive minimizes foaming voids while maintaining effective sealing.

3M™ Venting Tape 3294 is a specialized pink non-woven synthetic backing tape with strip-coated low-tack pressure sensitive acrylic adhesive designed for high-performance venting applications. This industrial-grade tape features a unique non-woven conformable backing with exceptional air and gas permeability, making it ideal for foam-in-place insulation processes in appliance manufacturing. The strip-coated adhesive design ensures uncoated areas maintain higher permeability to minimize foaming voids while keeping solids securely in place. The tape is specifically engineered to meet stringent outgassing requirements for refrigerator and freezer manufacturing, where it effectively allows foam insulation gases to escape while maintaining foam containment within appliance cavities and door assemblies. The conformable non-woven backing provides excellent burst strength for effective sealing with minimal foaming voids, reducing manufacturing cleanup requirements and improving overall production efficiency. With a thickness of 5 mil and dimensions of 1.5 inches wide by 36 yards long, each case contains 24 rolls providing comprehensive coverage for large-scale manufacturing operations. This product meets ASTM D3330, ASTM D3652, and ASTM D3759 specifications and is manufactured to the highest 3M standards for industrial adhesive applications. The tape operates effectively at temperatures up to 120°F (49°C) and maintains a shelf life of 18 months from the date of manufacture, ensuring reliable performance throughout extended storage periods.

Key Features

Unique non-woven conformable backing with exceptional air and gas permeability
Strip-coated acrylic adhesive minimizes foaming voids and reduces cleanup
Meets stringent outgassing requirements for foam-in-place insulation processes
Excellent burst strength for effective sealing in appliance manufacturing
Case of 24 rolls provides comprehensive coverage for large-scale operations
Operates reliably at temperatures up to 120°F (49°C)
18-month shelf life from date of manufacture
Conforms easily to irregular surfaces and cavities

Technical Specifications

Specification	Value
Product Type	Pressure Sensitive Tape
Backing Material	Non-woven synthetic
Adhesive Type	Acrylic, strip-coated, low-tack
Overall Width (Imperial)	1.5 inches
Overall Width (Metric)	38.1 mm
Overall Length (Imperial)	36 yards
Overall Length (Metric)	32.91 meters
Total Tape Thickness (Imperial)	5 mil
Total Tape Thickness (Metric)	0.13 mm
Backing Thickness (Imperial)	4 mil
Backing Thickness (Metric)	0.1 mm
Adhesive Thickness (Metric)	0.1 mm
Product Color	Pink
Number of Sides	Single-sided
Adhesion Strength (Imperial)	9 oz/in
Adhesion Strength (Metric)	9.9 N/100mm
Tensile Strength (Metric)	14 N/100mm
Elongation at Break	15%
Maximum Operating Temperature (Fahrenheit)	120°F
Maximum Operating Temperature (Celsius)	49°C
Shelf Life	18 months from date of manufacture
Units per Case	24 rolls
Product Form	Roll
Smallest Saleable Unit	Roll
Specifications Met	ASTM D3330, ASTM D3652, ASTM D3759
Application	Outgas venting in appliances
Brand	3M™
Part Number	3294
3M Product Number	3294
3M ID	7010312339
UPC	00021200266652

Order 3M Venting Tape 3294 Pink 1.5 Inch 36 Yard Roll at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
