Professional-grade 10 mil vinyl corrosion protection tape with rubber-resin adhesive, UV-resistant backing, wide temperature range, and RoHS compliant for industrial pipe and conduit protection.

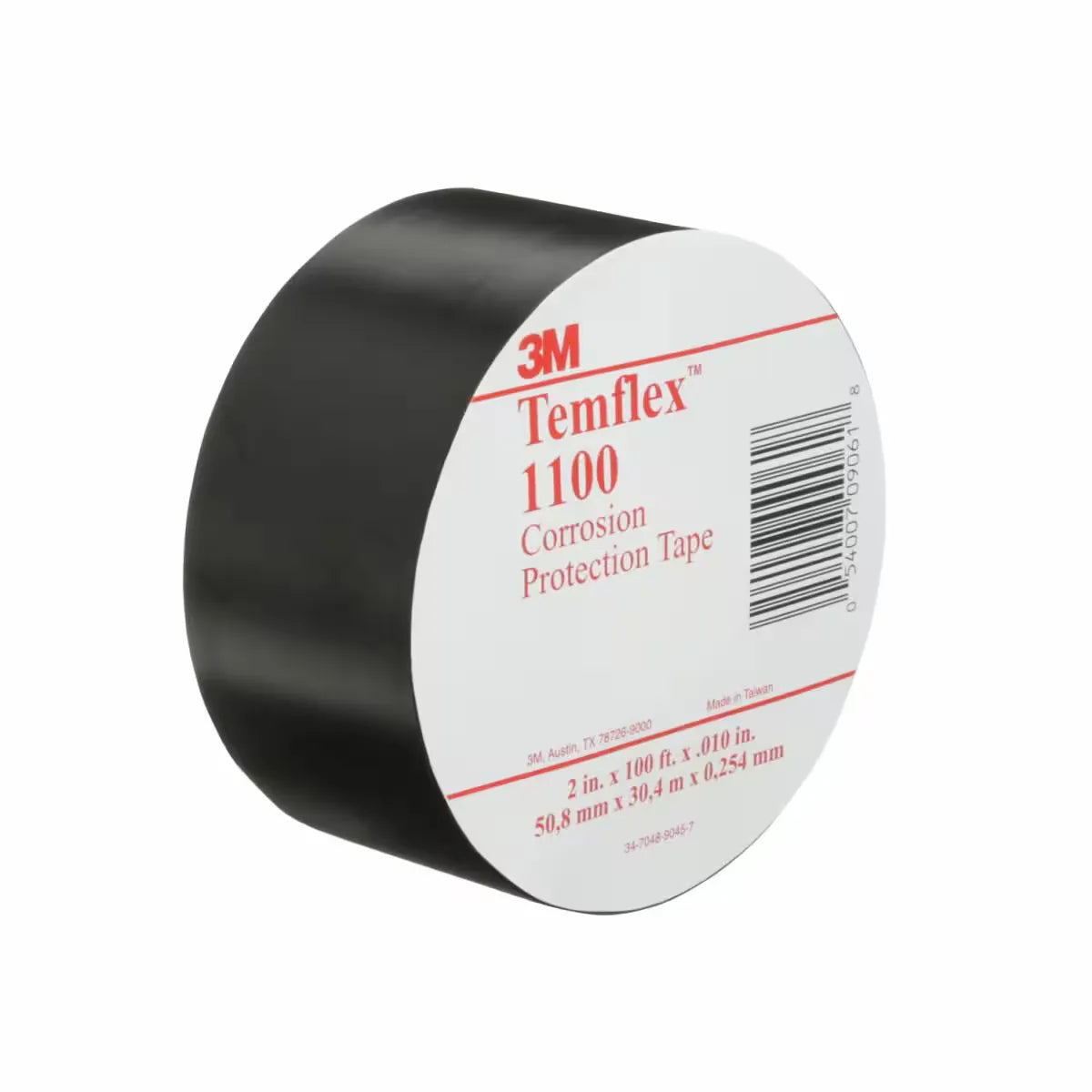

3M™ Temflex™ Vinyl Corrosion Protection Tape 1100 is a premium industrial-grade protective tape specifically engineered for corrosion prevention applications. This 10 mil thick, general-purpose tape features a specially formulated pressure-sensitive rubber-resin adhesive that provides optimized adherence to various surfaces. Designed to protect conduits, pipes, and metallic cable jackets, this tape offers exceptional resistance to abrasion, punctures, and electrolytic actions in both above-ground and below-ground installations.
The tape is constructed with a durable PVC backing that resists salt water, sunlight, alkalis, and other corrosive materials including chlorine, bromine, sodium, and lithium compounds. It withstands a wide temperature range from -12°C to 49°C (10°F to 120°F), making it suitable for diverse environmental conditions. The printed tape format provides excellent electrical strength and moisture sealing capabilities for threaded conduit joints, ensuring long-lasting protection in demanding industrial environments.
This RoHS 2011/65/EU compliant product comes in a convenient case of 24 rolls, each measuring 2 inches in width by 100 feet in length. The highly conformable nature of the tape allows it to conform to irregular surfaces while maintaining superior adhesion. With its UV-resistant properties and 200% elongation at break, this professional-grade tape delivers reliable performance in construction, general industrial, and metalworking applications.
Key Features
- Highly conformable rubber-resin adhesive provides optimized adherence to irregular surfaces
- PVC backing resists salt water, sunlight, alkalis, chlorine, bromine, sodium and lithium
- 10 mil thickness offers superior protection against abrasion and punctures
- Wide temperature range from -12°C to 49°C (-55°F to 120°F) for diverse applications
- UV-resistant with 200% elongation at break for durability and flexibility
Technical Specifications
| Specification |
Value |
| Product Type | Vinyl Corrosion Protection Tape |
| Brand | 3M Temflex |
| Model Number | 1100 |
| Part Number | 1100UP-2X100FT |
| 3M ID | 7000005813 |
| UPC Code | 00054007090618 |
| Overall Width (Imperial) | 2 inches |
| Overall Width (Metric) | 50.8 millimeters |
| Overall Length (Imperial) | 100 feet |
| Overall Length (Metric) | 30.5 meters |
| Total Tape Thickness (Imperial) | 10 mil |
| Total Tape Thickness (Metric) | 0.3 millimeters |
| Overall Thickness (Imperial) | 0.01 inch |
| Overall Thickness (Metric) | 0.25 millimeters |
| Adhesive Type | Pressure-sensitive Rubber-Resin |
| Backing Material | PVC (Polyvinyl Chloride) |
| Color | Black |
| Adhesion Strength (Imperial) | 25 pounds |
| Elongation at Break | 200 percent |
| Minimum Operating Temperature (Celsius) | -12°C |
| Minimum Operating Temperature (Fahrenheit) | -55°F |
| Maximum Operating Temperature (Celsius) | 49°C |
| Maximum Operating Temperature (Fahrenheit) | 176°F |
| Maximum Installation Temperature (Celsius) | 49°C |
| Maximum Installation Temperature (Fahrenheit) | 120°F |
| Application | Corrosion Protection |
| Tape Type | Corrosion Protection |
| Performance Level | General Use |
| Features | Printed Tape, UV-resistant |
| UV Resistant | Yes |
| Industries | Construction, General Industrial, Metalworking |
| Specifications Met | RoHS 2011/65/EU Compliant |
| Package Quantity | 24 rolls per case |
| Use Classification | Industrial/Occupational Use Only |
