Premium pressure-sensitive tabbing and splicing tape with silicone adhesive for automotive trim attachment, offering high tack and strong liner bonds with easy manual application.

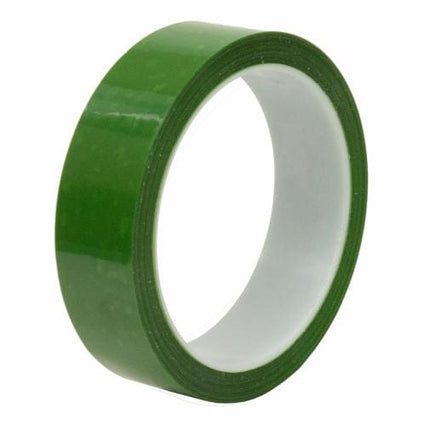

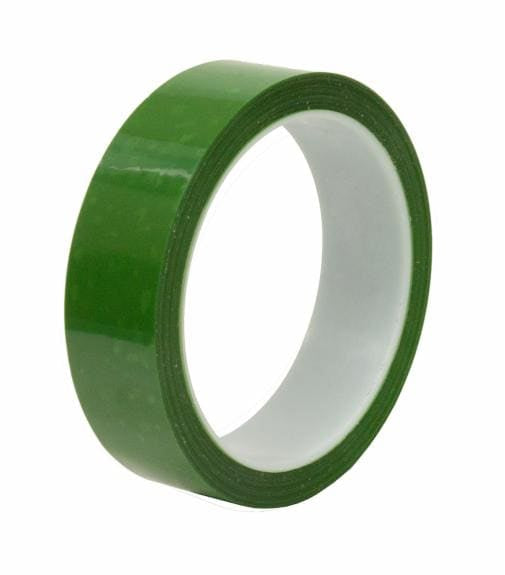

3M™ Tabbing and Splicing Tape 5699 is a premium pressure-sensitive adhesive-backed film engineered specifically for automotive exterior trim attachment applications. This specialized tape provides a strong, reliable bond to the liners of 3M™ Acrylic Plus Tapes, ensuring efficient liner removal in high-volume production environments. The tape features a silicone adhesive applied to a durable polyester backing, offering exceptional performance for both manual and automated tabbing operations.
Designed for versatility and ease of use, this clear tape measures 3.75 inches (95.25mm) in width with a precise 0.10mm thickness, making it ideal for various material applications. The high tack and excellent strength characteristics enable efficient manual applications without requiring special equipment, while the undertab capability provides a more robust tabbing solution. Available in standard widths up to 1200mm (48 inches) for compatibility with different production requirements, this tape delivers consistent performance across diverse manufacturing operations.
The 5699 tabbing tape is engineered to perform optimally when positioned at an angle over corners, enhancing functionality and ensuring reliable adhesion. With its rubber/resin adhesive formulation and single-sided application, this transparent tape is the ideal choice for automotive manufacturers and trim attachment specialists seeking dependable, high-performance tabbing and splicing solutions that meet demanding production standards.
Key Features
- Strong bond to 3M Acrylic Plus Tape liners for reliable automotive trim attachment
- Silicone adhesive on polyester backing for easy liner removal in production environments
- High tack and excellent strength characteristics for efficient manual applications
- Clear, 0.10mm thickness for versatile use with various materials
- Undertab capability for robust tabbing solutions and enhanced functionality
- Available in standard widths up to 1200mm (48 inches) for diverse production requirements
- Single-sided adhesive application for precision tabbing operations
- Optimal performance when positioned at angles over corners
Technical Specifications
| Specification |
Value |
| Product Number | 5699 |
| 3M ID | 7010414037 |
| UPC Code | 00051115555817 |
| Overall Width (Imperial) | 3.75 inches |
| Overall Width (Metric) | 95.25 mm |
| Total Tape Thickness without Liner (Imperial) | 0.004 inches |
| Total Tape Thickness without Liner (Metric) | 0.1 mm |
| Product Color | Transparent/Clear |
| Adhesive Type | Rubber/Resin with Silicone |
| Number of Adhesive Sides | Single-sided |
| Backing Material | Polyester |
| Roll Length | 72 yards |
| Maximum Available Width | 1200 mm (48 inches) |
| Brand | 3M™ |
| Application | Automotive exterior trim attachment and tabbing |
Order 3M Tabbing and Splicing Tape 5699 Clear 0.10mm at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
