Premium transparent polyester film tape with aggressive rubber resin adhesive for bonding low surface energy materials. Ideal for splicing, sealing, and reinforcement in industrial applications. 4.1 mil thickness, 140 oz/in adhesion strength, temperature range 40°F to 200°F.

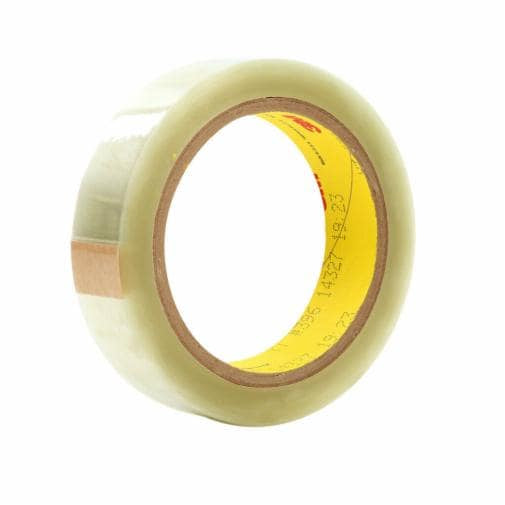

3M™ Super Bond™ Film Tape 396 is a premium transparent polyester-backed adhesive tape specifically engineered for demanding industrial applications requiring aggressive adhesion to low surface energy materials. This single-sided splicing and core starting tape features a rubber resin adhesive that provides immediate and aggressive holding strength, making it ideal for bonding to polyethylene, polypropylene, and other difficult-to-adhere-to surfaces. The thin caliper design combined with exceptional tensile strength ensures reliable performance in butt splicing, core starting, and reinforcement applications.
The tape's polyester backing delivers exceptional abrasion, chemical, and thermal resistance, maintaining its integrity across a wide temperature range from 40°F to 200°F (4°C to 93°C). With a total thickness of 4.1 mil and adhesion strength of 140 oz/in, this tape provides superior holding power without excessive bulk. The transparent color allows for discreet application while maintaining visibility of underlying materials, making it perfect for photographic transparencies, rip-stop nylon repairs, and polyethylene barrel liner applications.
Each case contains 24 rolls of 36-yard tape, providing substantial coverage for high-volume industrial operations. Compliant with ASTM D3330, ASTM D3652, and ASTM D3759 specifications, this tape delivers consistent performance and reliability for critical bonding applications across multiple industries including automotive, appliance manufacturing, print production, and specialty vehicle applications.
Key Features
- Polyester backing offers superior abrasion, chemical and thermal resistance
- Rubber resin adhesive provides aggressive grab to irregular and low surface energy surfaces
- Thin caliper design with exceptional tensile strength of 43 lb/in
- Transparent color allows visibility of underlying materials for precise application
- Temperature resistance range from 40°F to 200°F for diverse industrial environments
- Single-sided adhesive configuration for splicing and core starting applications
- Elongation at break of 140% provides flexibility and conformability
- ASTM D3330, D3652, and D3759 specifications compliance ensures quality standards
- Case quantity of 24 rolls with 36-yard length provides substantial coverage
- Ideal for polyethylene, polypropylene, and difficult-to-adhere materials
Technical Specifications
| Specification |
Value |
| Product Type | Single-sided Adhesive Splicing and Core Starting Tape |
| Backing Material | Polyester |
| Adhesive Type | Rubber Resin |
| Product Color | Transparent |
| Overall Width (Imperial) | 1.5 inches |
| Overall Width (Metric) | 3.8 centimeters |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.9 meters |
| Total Tape Thickness (Imperial) | 4.1 mil |
| Total Tape Thickness (Metric) | 0.1 millimeter |
| Backing Thickness (Imperial) | 1.7 mil |
| Backing Thickness (Metric) | 0.04 millimeter |
| Adhesive Thickness (Imperial) | 2.4 mil |
| Adhesive Thickness (Metric) | 0.06 millimeter |
| Adhesion Strength (Imperial) | 140 ounces per inch |
| Adhesion Strength (Metric) | 153 Newtons per 100 millimeters |
| Tensile Strength (Imperial) | 43 pounds per inch |
| Tensile Strength (Metric) | 75.3 Newtons per 100 millimeters |
| Elongation at Break | 140 percent |
| Minimum Operating Temperature (Fahrenheit) | 40°F |
| Minimum Operating Temperature (Celsius) | 4°C |
| Maximum Operating Temperature (Fahrenheit) | 200°F |
| Maximum Operating Temperature (Celsius) | 93°C |
| Shelf Life | 18 months from date of manufacture |
| Case Quantity | 24 rolls per case |
| Number of Adhesive Sides | Single-sided |
| Application Type | General Industrial |
| Product Form | Roll |
| Smallest Saleable Unit | Roll |
| Specifications Met | ASTM D3330, ASTM D3652, ASTM D3759 |
| Part Number | 396 |
| 3M Product Number | 396 |
| 3M ID | 7000123761 |
| UPC Code | 00021200393815 |
