Premium 20 mil vinyl corrosion protection tape with rubber adhesive, 1 inch x 100 feet, black color, 24 rolls per case. Temperature range -55 to 176°F. UV, chemical, and salt water resistant.

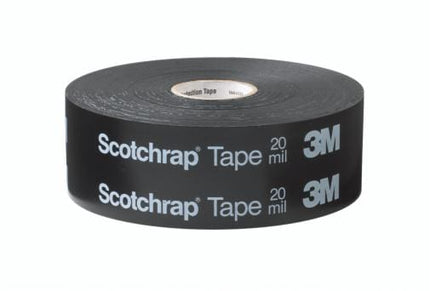

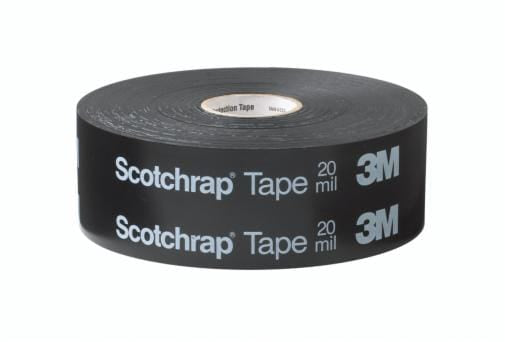

3M™ Scotchrap™ Vinyl Corrosion Protection Tape 51 is a premium grade, 20 mil thick, all-weather tape specifically engineered for corrosion protection applications. This professional-grade tape features a pressure-sensitive rubber adhesive that provides optimized adherence and excellent tacking properties, making it ideal for protecting metal piping systems, conduits, fittings, and field joints both above and below ground. The flexible PVC backing offers superior mechanical strength and electrical insulation properties while maintaining excellent conformability to curved and irregular surfaces.
This corrosion protection tape withstands an impressive temperature range of -55 to 176°F (-48 to 80°C), ensuring reliable performance in extreme environmental conditions. The tape is highly resistant to UV rays, corrosive salt water, soil acids, alkalis, salts, and various chemicals, making it suitable for diverse industrial applications. With an elongation at break of 150%, the tape provides flexibility and resilience against punctures and abrasion. Each case contains 24 rolls of 100 feet length, with each roll measuring 1 inch in width.
The printed surface design enhances visibility and allows for easy identification and tracking of wrapped applications. RoHS 2011/65/EU compliant, this tape meets stringent regulatory requirements for industrial and occupational use. It features flame retardant properties and maintains a 5-year shelf life when properly stored. The adhesion strength of 20 oz/in ensures lasting protection against corrosion, making it an essential product for infrastructure maintenance, utility work, and industrial piping protection.
Key Features
- Pressure-sensitive rubber adhesive for optimized adherence and excellent tacking
- Black PVC backing provides superior mechanical strength and electrical insulation properties
- Withstands extreme temperature range of -55 to 176°F (-48 to 80°C)
- Highly resistant to UV rays, corrosive salt water, soil acids, alkalis, salts, and chemicals
- 150% elongation at break for flexibility and puncture resistance
- Flame retardant properties for enhanced safety
- Printed surface for easy identification and tracking
- RoHS 2011/65/EU compliant for regulatory compliance
- 5-year shelf life when properly stored
- 20 oz/in adhesion strength for lasting protection
Technical Specifications
| Specification |
Value |
| Product Type | Corrosion Protection Tape |
| Brand | 3M Scotchrap™ |
| Part Number | 51P-1X100FT |
| UPC | 00054007428022 |
| Overall Width (Imperial) | 1 inch |
| Overall Width (Metric) | 25.4 mm |
| Overall Length (Imperial) | 100 feet |
| Overall Length (Metric) | 30.5 meters |
| Total Tape Thickness (Imperial) | 20 mil |
| Total Tape Thickness (Metric) | 0.5 mm |
| Backing Thickness (Imperial) | 19.7 mil |
| Backing Thickness (Metric) | 0.5 mm |
| Product Color | Black |
| Adhesive Type | Pressure-Sensitive Rubber |
| Backing Material | PVC (Polyvinyl Chloride) |
| Adhesion Strength (Imperial) | 20 oz/in |
| Adhesion Strength (Metric) | 21.9 N/100mm |
| Elongation at Break | 150% |
| Minimum Operating Temperature (Fahrenheit) | -55°F |
| Minimum Operating Temperature (Celsius) | -48°C |
| Maximum Operating Temperature (Fahrenheit) | 149°F |
| Maximum Operating Temperature (Celsius) | 80°C |
| Minimum Installation Temperature (Fahrenheit) | 10°F |
| Minimum Installation Temperature (Celsius) | -12°C |
| Maximum Installation Temperature (Fahrenheit) | 150°F |
| Maximum Installation Temperature (Celsius) | 80°C |
| Chemical Resistant | Yes |
| UV Resistant | Yes |
| Flame Retardant | Yes |
| Electrolytic Corrosion Factor | 0.9 |
| Performance Level | Professional Grade |
| Shelf Life | 5 Years |
| Regulatory Compliance | RoHS 2011/65/EU Compliant |
| Rolls Per Case | 24 |
| Application | Corrosion Protection for Metal Piping, Conduits, and Fittings |
| Manufacturing Origin | USA |
| Intended Use | Industrial/Occupational Use Only |
