Premium 20 mil thick corrosion protection tape with rubber adhesive, PVC backing, and superior temperature resistance from -55 to 176°F. UV and chemical resistant for metal piping, conduits, and field joints.

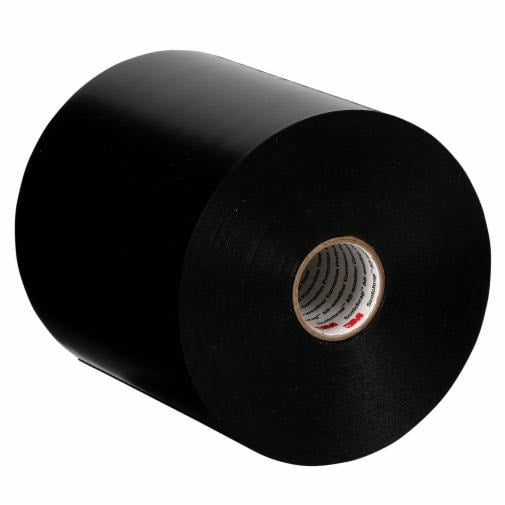

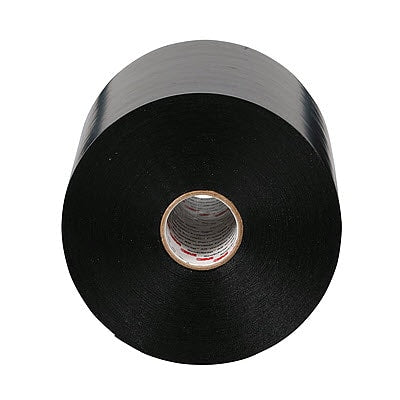

3M™ Scotchrap™ Vinyl Corrosion Protection Tape 51 is a premium-grade, professional-level corrosion protection solution designed for industrial applications. This 20 mil thick, all-weather tape features a flexible PVC backing that offers excellent mechanical strength and electrical insulation properties. The tape is engineered with a pressure-sensitive rubber adhesive that provides optimized adherence and high conformability, making it ideal for protecting metal piping systems, conduits, and fittings both above and below ground.
This corrosion protection tape withstands an impressive temperature range of -55 to 176°F (-48 to 80°C), ensuring reliable performance in extreme weather conditions. The black vinyl backing is highly resistant to UV rays, corrosive salt water, soil acids, alkalis, salts, and various chemicals. With 150% elongation at break, the tape offers superior flexibility and conformability to irregular surfaces, field joints, and mill-coated pipes.
The Scotchrap™ Tape 51 is RoHS 2011/65/EU compliant and manufactured in the USA. Each case contains 4 rolls of 100 feet length and 6 inches width, providing 2,400 linear feet of protection. This industrial-grade tape is flame retardant and UV-resistant, making it the preferred choice for professional contractors and industrial maintenance teams requiring long-lasting corrosion protection.
Key Features
- Pressure-sensitive rubber adhesive provides optimized adherence and high conformability
- Black PVC backing offers excellent mechanical strength and electrical insulation properties
- Withstands extreme temperature range from -55 to 176°F (-48 to 80°C)
- Highly resistant to UV rays, corrosive salt water, soil acids, alkalis, and chemicals
- 150% elongation at break for superior flexibility on irregular surfaces
- Flame retardant and professional-grade for industrial applications
- RoHS 2011/65/EU compliant and manufactured in USA
- Ideal for metal piping, conduits, fittings, and field joints protection
Technical Specifications
| Specification |
Value |
| Product Type | Corrosion Protection Tape |
| Brand | 3M Scotchrap™ |
| Model Number | Tape 51 |
| Part Number | 51UP-6X100FT |
| 3M ID | 7100007740 |
| UPC | 00054007428091 |
| Overall Width (Imperial) | 6 inches |
| Overall Width (Metric) | 152.4 mm |
| Overall Length (Imperial) | 100 feet |
| Overall Length (Metric) | 30.5 meters |
| Total Tape Thickness without Liner (Imperial) | 20 mil |
| Total Tape Thickness without Liner (Metric) | 0.5 mm |
| Backing Thickness (Imperial) | 19.7 mil |
| Backing Thickness (Metric) | 0.5 mm |
| Product Color | Black |
| Adhesive Type | Rubber, Pressure-Sensitive |
| Backing Material | Polyvinyl Chloride (PVC) |
| Adhesion Strength (Imperial) | 20 oz/in |
| Adhesion Strength (Metric) | 21.9 N/100mm |
| Elongation at Break | 150% |
| Minimum Operating Temperature (Fahrenheit) | -55°F |
| Minimum Operating Temperature (Celsius) | -48°C |
| Maximum Operating Temperature (Fahrenheit) | 149°F |
| Maximum Operating Temperature (Celsius) | 80°C |
| Minimum Installation Temperature (Fahrenheit) | 10°F |
| Minimum Installation Temperature (Celsius) | -12°C |
| Maximum Installation Temperature (Fahrenheit) | 150°F |
| Maximum Installation Temperature (Celsius) | 80°C |
| Chemical Resistant | Yes - resistant to salt water, soil acids, alkalis, and chemicals |
| UV Resistant | Yes |
| Flame Retardant | Yes |
| Electrolytic Corrosion Factor | 0.9 |
| Performance Level | Professional Grade |
| Shelf Life | 5 Years |
| Specifications Met | RoHS 2011/65/EU Compliant |
| Quantity per Case | 4 rolls |
| Total Length per Case | 400 feet (2,400 linear feet) |
| Manufacturing Origin | USA |
| Application | Corrosion Protection for metal piping, conduits, fittings, and field joints |
| Use Type | Industrial/Occupational Use Only |
