Premium 20 mil thick corrosion protection tape with rubber adhesive, PVC backing, and temperature range of -55°F to 176°F. Ideal for metal piping, conduits, and field joints with UV and chemical resistance.

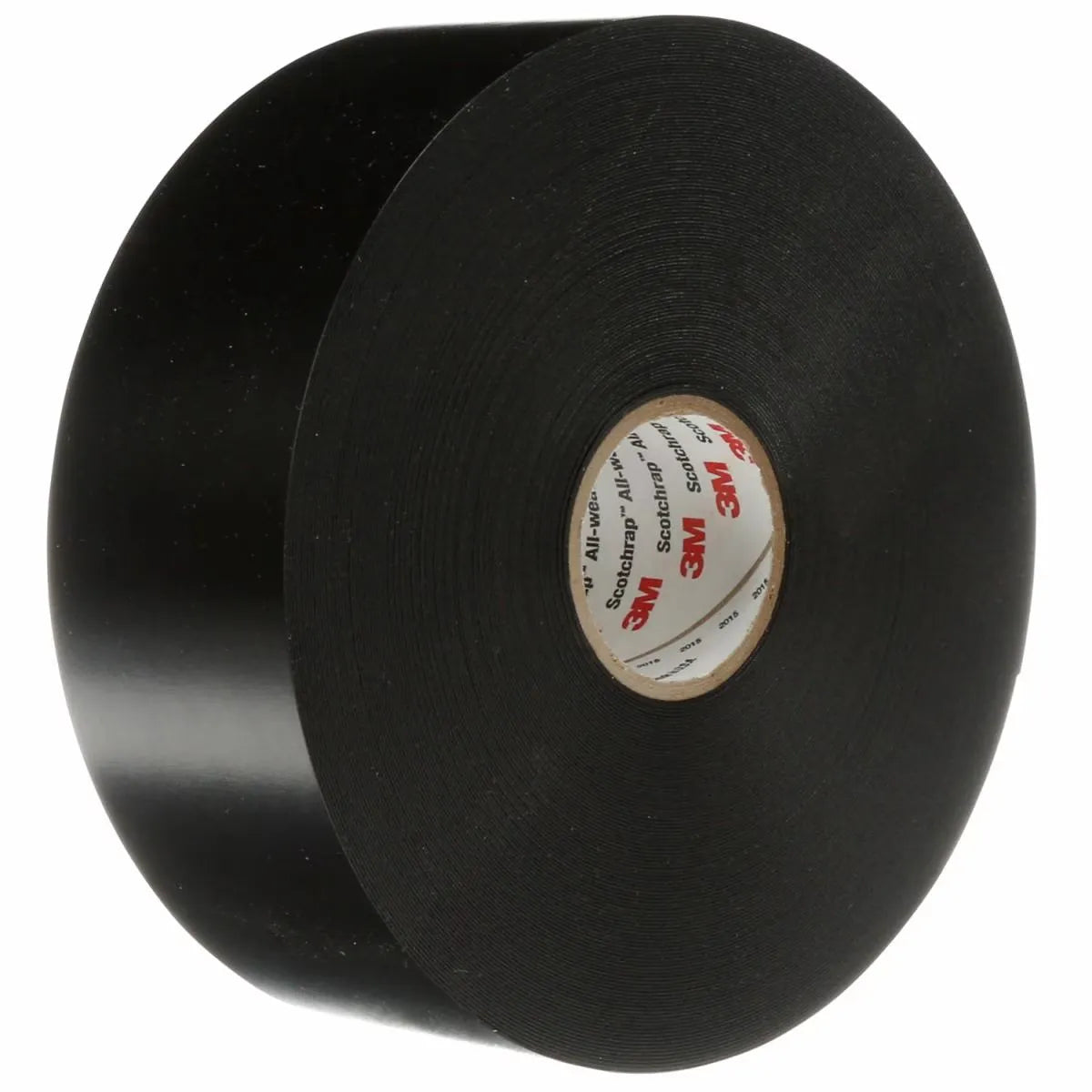

3M™ Scotchrap™ Vinyl Corrosion Protection Tape 51 is a premium-grade, 20 mil thick all-weather tape specifically engineered for corrosion protection applications. This professional-grade tape features a pressure-sensitive rubber adhesive that provides optimized adherence and excellent tacking properties, combined with a flexible PVC backing that offers superior mechanical strength and electrical insulation properties. The tape withstands extreme temperature ranges from -55°F to 176°F (-48°C to 80°C), making it ideal for both above-ground and below-ground applications.
Designed for use on metal piping systems, conduits, fittings, and field joints on mill-coated pipes, this corrosion protection tape is highly resistant to UV rays, corrosive salt water, soil acids, alkalis, salts, and various chemicals. Its robust construction provides excellent resistance to abrasion and punctures, ensuring long-lasting protection in demanding industrial environments. The tape's high conformability allows it to wrap smoothly around pipes and irregular surfaces while maintaining consistent adhesion.
Each case includes 12 rolls, with each roll measuring 2 inches wide by 100 feet long, providing 1,200 total feet of protection per case. The tape is RoHS 2011/65/EU compliant and manufactured in the USA, meeting strict industrial standards. With a 5-year shelf life and professional-grade performance level, this tape is the ideal solution for industrial and occupational corrosion protection needs.
Key Features
- Pressure-sensitive rubber adhesive for optimized adherence and excellent tacking
- Black PVC backing provides mechanical strength and electrical insulation properties
- Extreme temperature range of -55°F to 176°F (-48°C to 80°C)
- Highly resistant to UV rays, salt water, soil acids, alkalis, and chemicals
- Superior abrasion and puncture resistance for long-lasting protection
- Flame retardant and UV-resistant construction
- RoHS 2011/65/EU compliant and manufactured in the USA
- 5-year shelf life with professional-grade performance
- High conformability for smooth wrapping around pipes and irregular surfaces
- Suitable for above-ground and below-ground applications
Technical Specifications
| Specification |
Value |
| Part Number | 51UP-2X100FT |
| 3M ID | 7000006135 |
| UPC | 00054007428077 |
| Overall Width (Imperial) | 2 inches |
| Overall Width (Metric) | 50.8 mm |
| Overall Length (Imperial) | 100 feet |
| Overall Length (Metric) | 30.5 meters |
| Overall Thickness (Imperial) | 20 mil |
| Overall Thickness (Metric) | 0.51 mm |
| Total Tape Thickness without Liner (Imperial) | 20 mil |
| Total Tape Thickness without Liner (Metric) | 0.5 mm |
| Adhesive Type | Rubber |
| Backing Material | PVC |
| Adhesion Strength (Imperial) | 20 oz/in |
| Adhesion Strength (Metric) | 21.9 N/100mm |
| Elongation at Break | 150% |
| Minimum Operating Temperature (Fahrenheit) | -55°F |
| Minimum Operating Temperature (Celsius) | -48°C |
| Maximum Operating Temperature (Fahrenheit) | 149°F |
| Maximum Operating Temperature (Celsius) | 80°C |
| Minimum Installation Temperature (Fahrenheit) | 10°F |
| Minimum Installation Temperature (Celsius) | -12°C |
| Maximum Installation Temperature (Fahrenheit) | 150°F |
| Maximum Installation Temperature (Celsius) | 80°C |
| Chemical Resistant | Yes |
| UV Resistant | Yes |
| Electrolytic Corrosion Factor | 0.9 |
| Tape Type | Corrosion Protection |
| Application | Corrosion Protection |
| Brand | Scotchrap™ |
| Performance Level | Professional Grade |
| Features | Flame Retardant, Printed Tape, UV-resistant |
| Shelf Life | 5 Years |
| Specifications Met | RoHS 2011/65/EU |
| Quantity per Case | 12 rolls |
| Manufacturing Origin | USA |
