Professional-grade 20 mil black PVC corrosion protection tape with rubber adhesive, rated for -55 to 176°F, ideal for metal pipes and conduits. 2 in x 100 ft per roll, 12 rolls per case.

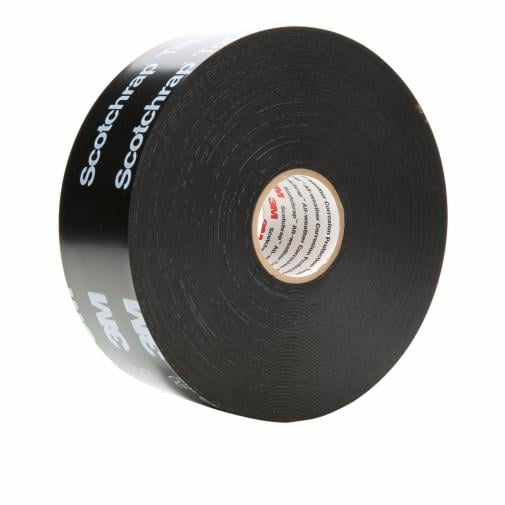

3M™ Scotchrap™ Vinyl Corrosion Protection Tape 51 is a premium grade, professional-level corrosion protection solution designed for metal piping systems, conduits, and fittings both above and below ground. This 20 mil thick all-weather tape features a pressure-sensitive rubber adhesive that provides optimized adherence and excellent tacking with high conformability. The flexible black PVC backing offers superior mechanical strength and electrical insulation properties, making it ideal for protecting metal infrastructure from corrosion damage.
The tape withstands an impressive temperature range of -55 to 176°F (-48 to 80°C) and resists abrasion, punctures, UV rays, corrosive salt water, soil acids, alkalis, salts, and various chemicals. With an elongation at break of 150%, this printed tape delivers exceptional flexibility and durability in harsh environmental conditions. The 20 oz/in adhesion strength ensures reliable long-term performance on straight pipes, conduits, and field joints on mill-coated pipes.
This industrial-grade tape is RoHS 2011/65/EU compliant and manufactured in the USA. Each case contains 12 rolls, with each roll measuring 2 inches wide by 100 feet long, providing ample coverage for large-scale industrial applications. The 5-year shelf life ensures product reliability and performance consistency for extended storage periods.
Key Features
- Pressure-sensitive rubber adhesive provides optimized adherence and excellent tacking
- Black PVC backing offers superior mechanical strength and electrical insulation properties
- Withstands wide temperature range of -55 to 176°F (-48 to 80°C)
- Highly resistant to UV rays, corrosive salt water, soil acids, alkalis, and chemicals
- RoHS 2011/65/EU compliant with 5-year shelf life and flame-retardant properties
Technical Specifications
| Specification |
Value |
| Product Type | Corrosion Protection Tape |
| Backing Material | PVC (Polyvinyl Chloride) |
| Adhesive Type | Rubber (Pressure-sensitive) |
| Overall Width | 2 inches (50.8 mm) |
| Overall Length | 100 feet (30.5 m) |
| Total Tape Thickness | 20 mil (0.5 mm) |
| Backing Thickness | 19.7 mil (0.5 mm) |
| Product Color | Black |
| Adhesion Strength | 20 oz/in (21.9 N/100mm) |
| Operating Temperature Range | -55 to 176°F (-48 to 80°C) |
| Installation Temperature Range | 10 to 150°F (-12 to 80°C) |
| Elongation at Break | 150% |
| Electrolytic Corrosion Factor | 0.9 |
| Performance Level | Professional Grade |
| Shelf Life | 5 Years |
| Features | Flame Retardant, Printed Tape, UV-resistant |
| Chemical Resistant | Yes |
| UV Resistant | Yes |
| Compliance | RoHS 2011/65/EU |
| Quantity per Case | 12 Rolls |
| Part Number | 51P-2X100FT |
| 3M ID | 7000132743 |
| UPC Code | 00054007428039 |
| Manufacturing Origin | USA |
| Application | Corrosion Protection for Metal Piping Systems, Conduits, and Fittings |
Order 3M Scotchrap Vinyl Corrosion Protection Tape 51 Black at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
