Premium 20 mil thick corrosion protection tape with rubber adhesive and PVC backing. Resists temperatures from -55°F to 176°F, UV rays, salt water, and chemicals. Professional-grade for metal piping, conduits, and fittings.

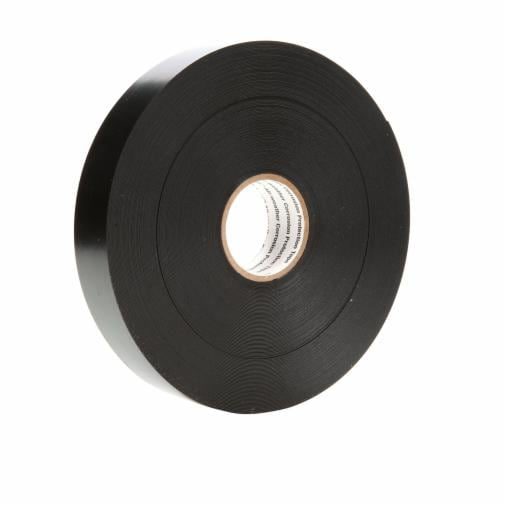

3M™ Scotchrap™ Vinyl Corrosion Protection Tape 51 is a premium grade, 20 mil thick, all-weather protective tape engineered for superior corrosion protection on metal piping systems, conduits, and fittings both above and below ground. This professional-grade tape features a flexible PVC backing that provides excellent mechanical strength and electrical insulation properties, combined with a pressure-sensitive rubber adhesive that ensures optimized adherence and high conformability to irregular surfaces.
The tape withstands an impressive temperature range from -55°F to 176°F (-48°C to 80°C), making it suitable for diverse environmental conditions and climates. It delivers exceptional resistance to UV rays, corrosive salt water, soil acids, alkalis, salts, and various chemicals, ensuring long-lasting protection in harsh outdoor environments. With an elongation at break of 150% and adhesion strength of 20 oz/in, this tape maintains integrity even under stress and mechanical strain.
3M™ Scotchrap™ Tape 51 is RoHS 2011/65/EU compliant and manufactured in the USA. It features flame-retardant properties and is specifically formulated for use on straight pipes, conduits, and field joints on mill-coated pipes. The product comes in a convenient 24-roll case format, with each roll measuring 1 inch wide by 100 feet long, providing comprehensive coverage for industrial applications. This professional-grade corrosion protection solution is designed exclusively for industrial and occupational use by trained professionals.
Key Features
- Pressure-sensitive rubber adhesive provides optimized adherence and high conformability
- Flexible PVC backing offers excellent mechanical strength and electrical insulation properties
- Withstands extreme temperature range from -55°F to 176°F (-48°C to 80°C)
- Superior resistance to UV rays, corrosive salt water, soil acids, alkalis, and chemicals
- Flame-retardant properties with 150% elongation at break for durability under stress
- RoHS 2011/65/EU compliant and manufactured in the USA
- 20 mil thickness provides premium-grade protection against abrasion and punctures
- Ideal for use on metal piping systems, conduits, and field joints both above and below ground
Technical Specifications
| Specification |
Value |
| Product Name | 3M Scotchrap Vinyl Corrosion Protection Tape 51 |
| Part Number | 51UP-1X100FT |
| 3M ID | 7000006134 |
| UPC Code | 00054007428060 |
| Overall Width (Imperial) | 1 inch |
| Overall Width (Metric) | 25.4 mm |
| Overall Length (Imperial) | 100 feet |
| Overall Length (Metric) | 30.5 meters |
| Total Tape Thickness (Imperial) | 20 mil |
| Total Tape Thickness (Metric) | 0.5 mm |
| Adhesive Type | Rubber, Pressure-Sensitive |
| Backing Material | PVC (Polyvinyl Chloride) |
| Adhesion Strength (Imperial) | 20 oz/in |
| Adhesion Strength (Metric) | 21.9 N/100mm |
| Elongation at Break | 150% |
| Minimum Operating Temperature (Fahrenheit) | -55°F |
| Minimum Operating Temperature (Celsius) | -48°C |
| Maximum Operating Temperature (Fahrenheit) | 149°F |
| Maximum Operating Temperature (Celsius) | 80°C |
| Minimum Installation Temperature (Fahrenheit) | 10°F |
| Minimum Installation Temperature (Celsius) | -12°C |
| Maximum Installation Temperature (Fahrenheit) | 150°F |
| Maximum Installation Temperature (Celsius) | 80°C |
| Electrolytic Corrosion Factor | 0.9 |
| Chemical Resistant | Yes |
| UV Resistant | Yes |
| Flame Retardant | Yes |
| Application | Corrosion Protection |
| Tape Type | Corrosion Protection |
| Performance Level | Professional Grade |
| Shelf Life | 5 Years |
| Specifications Met | RoHS 2011/65/EU Compliant |
| Case Quantity | 24 rolls |
| Manufacturing Origin | USA |
| Brand | Scotchrap |
