Premium 10 mil PVC corrosion protection tape with extreme temperature resistance (-55°F to 176°F), high-tack rubber adhesive, and superior UV and chemical resistance for industrial piping and electrical applications.

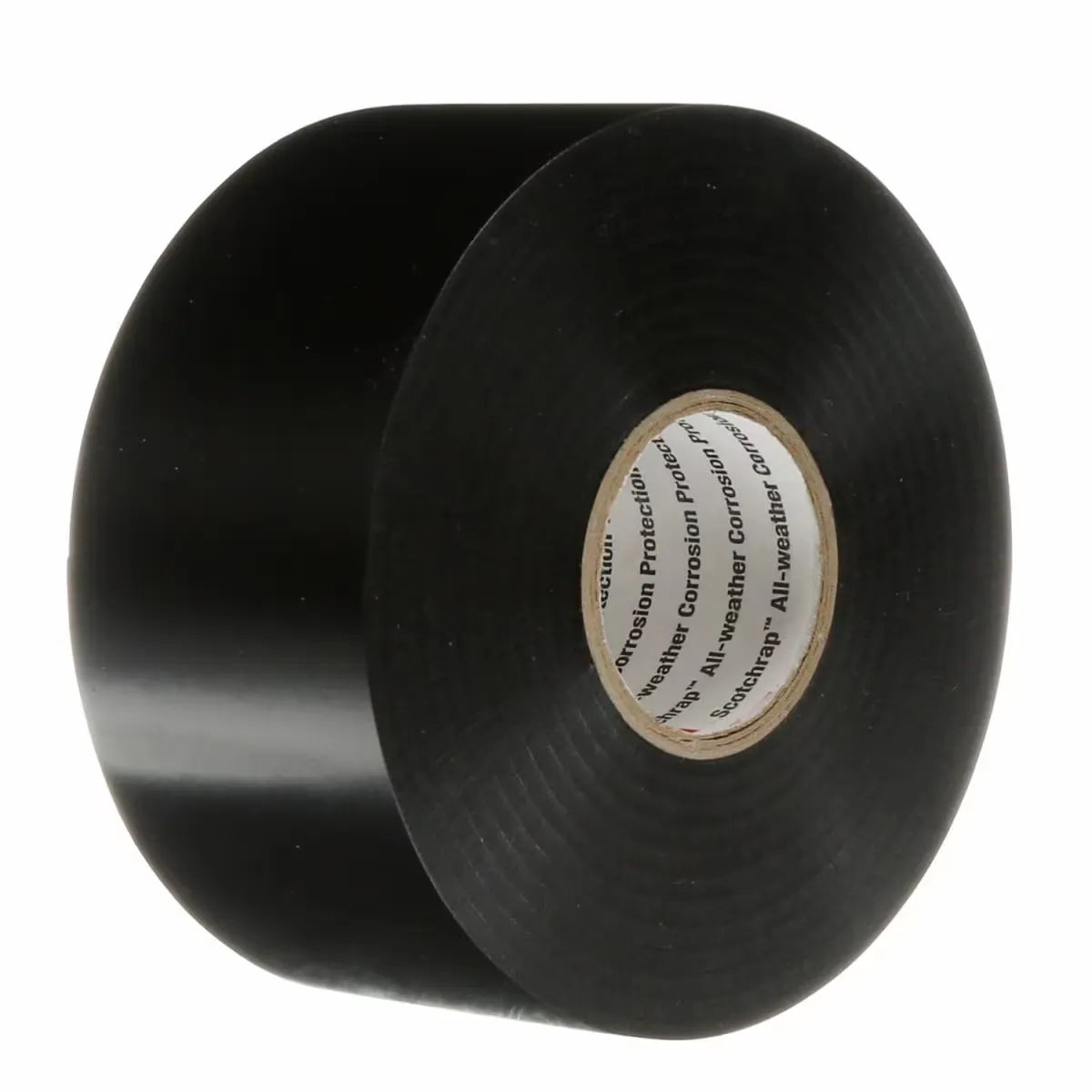

The 3M™ Scotchrap™ Vinyl Corrosion Protection Tape 50 is a premium-grade, 10 mil thick all-weather protective tape designed for industrial applications requiring superior corrosion resistance. This professional-grade tape features a flexible PVC backing with a high-tack rubber adhesive that provides excellent conformability and reliable adhesion on metal piping systems, conduits, and fittings both above and below ground. The tape withstands extreme temperatures ranging from -55°F to 176°F (-48°C to 80°C), making it suitable for diverse environmental conditions.
Engineered with advanced corrosion protection capabilities, this tape offers exceptional resistance to impact, abrasion, and puncture damage. The pressure-sensitive rubber adhesive ensures strong tacking performance and high conformability on straight pipes, conduits, and field joints on mill-coated pipes. Its flexible PVC backing provides excellent mechanical strength and electrical insulation properties, making it ideal for electrical system maintenance and repair applications.
The tape is highly resistant to UV rays, corrosive salt water, soil acids, alkalis, salts, and various chemicals, ensuring long-lasting protection in challenging weather conditions. With a shelf life of 5 years and compliance with RoHS 2011/65/EU regulations, this tape is suitable for use in construction, irrigation, mining, utility, and energy industries. Each carton contains 1 roll, with 12 rolls per case, measuring 101.6 mm (4 inches) wide and 30.48 m (100 feet) long.
Key Features
- Extreme temperature adhesive withstands -55°F to 176°F (-48°C to 80°C)
- High-tack rubber adhesive provides resistance to corrosion, impact, abrasion and puncture
- Highly resistant to UV rays, soil acids, alkalis, salts, chemicals and weather conditions
- Flexible PVC backing offers mechanical strength and electrical insulation properties
- Professional-grade 10 mil thickness suitable for metal piping systems, conduits and fittings
Technical Specifications
| Specification |
Value |
| Product Type | Corrosion Protection Tape |
| Brand | 3M Scotchrap |
| Model Number | Tape 50 |
| Part Number | 50UP-4X100FT-K |
| UPC Code | 00054007106463 |
| Overall Width (Metric) | 101.6 mm |
| Overall Width (Imperial) | 4 inches |
| Overall Length (Metric) | 30.48 m |
| Overall Length (Imperial) | 100 feet |
| Total Tape Thickness without Liner (Metric) | 0.3 mm |
| Total Tape Thickness without Liner (Imperial) | 10 mil |
| Backing Thickness (Metric) | 0.25 mm |
| Backing Thickness (Imperial) | 9.8 mil |
| Backing Material | PVC (Polyvinyl Chloride) |
| Adhesive Type | Pressure Sensitive Rubber |
| Product Color | Black |
| Adhesion Strength (Metric) | 21.9 N/100mm |
| Adhesion Strength (Imperial) | 20 oz/in |
| Elongation at Break | 200% |
| Minimum Operating Temperature (Celsius) | -48°C |
| Minimum Operating Temperature (Fahrenheit) | -55°F |
| Maximum Operating Temperature (Celsius) | 80°C |
| Maximum Operating Temperature (Fahrenheit) | 176°F |
| Minimum Installation Temperature (Celsius) | -12°C |
| Minimum Installation Temperature (Fahrenheit) | 10°F |
| Maximum Installation Temperature (Celsius) | 65°C |
| Maximum Installation Temperature (Fahrenheit) | 150°F |
| Electrolytic Corrosion Factor | 0.9 |
| Chemical Resistant | Yes |
| UV Resistant | Yes |
| Performance Level | Professional Grade |
| Shelf Life | 5 Years |
| Packaging | 1 Roll per Carton, 12 Rolls per Case |
| Specifications Met | RoHS 2011/65/EU |
| Manufacturing Origin | USA |
| Application | Corrosion Protection for Metal Piping, Conduits, and Electrical Systems |
