Premium industrial-grade corrosion protection tape with extreme temperature resistance, high-tack rubber adhesive, and UV protection for metal piping systems and conduits.

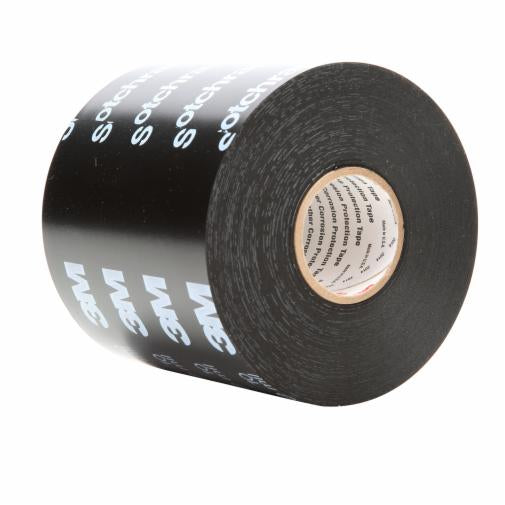

3M Scotchrap Vinyl Corrosion Protection Tape 50 is a premium-grade, all-weather protective tape designed for industrial applications requiring superior corrosion resistance. With a 10 mil thick flexible PVC backing and high-tack rubber adhesive, this professional-grade tape withstands extreme temperatures ranging from -55°F to 176°F (-48°C to 80°C), making it ideal for use in harsh environmental conditions. The tape offers exceptional resistance to corrosion, impact, abrasion, and puncture, ensuring long-lasting protection for metal piping systems, conduits, and fittings both above and below ground.
The Scotchrap Tape 50 features excellent tacking and high conformability properties that ensure secure adhesion to straight pipes, conduits, and field joints on mill-coated pipes. Its flexible PVC backing provides both mechanical strength and electrical insulation properties, making it suitable for electrical system maintenance and repair applications. The tape is highly resistant to UV rays, corrosive salt water, soil acids, alkalis, salts, chemicals, and varying weather conditions, ensuring reliable performance in construction, irrigation, mining, utility, and energy industry applications.
This industrial-grade tape comes in a case of 12 rolls, each measuring 4 inches wide by 100 feet long, with a printed black surface for easy identification. The product meets RoHS 2011/65/EU specifications and is manufactured in the USA. Designed exclusively for industrial and occupational use, this tape delivers professional-grade corrosion protection that extends the lifespan of critical infrastructure components.
Key Features
- Extreme temperature adhesive withstands -55°F to 176°F (-48°C to 80°C)
- High-tack rubber adhesive resists corrosion, impact, abrasion, and puncture
- Highly resistant to UV rays, soil acids, alkalis, salts, and chemicals
- Flexible PVC backing provides mechanical strength and electrical insulation
- Professional-grade 10 mil thickness for superior durability and protection
Technical Specifications
| Specification |
Value |
| Product Type | Vinyl Corrosion Protection Tape |
| Brand | 3M Scotchrap |
| Model Number | Tape 50 |
| Part Number | 50P-4X100FT-K |
| Overall Width (Imperial) | 4 inches |
| Overall Width (Metric) | 101.6 mm |
| Overall Length (Imperial) | 100 feet |
| Total Tape Thickness without Liner (Imperial) | 10 mil |
| Total Tape Thickness without Liner (Metric) | 0.3 mm |
| Product Color | Black with printed surface |
| Adhesive Type | Rubber, pressure-sensitive |
| Backing Material | Flexible PVC |
| Adhesion Strength (Imperial) | 20 oz/in |
| Adhesion Strength (Metric) | 21.9 N/100mm |
| Elongation at Break | 200% |
| Minimum Operating Temperature (Fahrenheit) | -55°F |
| Minimum Operating Temperature (Celsius) | -48°C |
| Maximum Operating Temperature (Fahrenheit) | 176°F |
| Maximum Operating Temperature (Celsius) | 80°C |
| Minimum Installation Temperature (Fahrenheit) | 10°F |
| Minimum Installation Temperature (Celsius) | -12°C |
| Maximum Installation Temperature (Fahrenheit) | 150°F |
| Maximum Installation Temperature (Celsius) | 65°C |
| Chemical Resistant | Yes |
| UV Resistant | Yes |
| Flame Retardant | Yes |
| Electrolytic Corrosion Factor | 0.9 |
| Shelf Life | 5 years |
| Performance Level | Professional Grade |
| Application | Corrosion Protection |
| Tape Type | Corrosion Protection |
| Features | Flame Retardant, Printed Tape, UV-resistant |
| Specifications Met | RoHS 2011/65/EU |
| Quantity per Case | 12 rolls |
| UPC | 00054007000181 |
| 3M ID | 7010397563 |
| Manufacturing Origin | USA |
| Intended Use | Industrial and occupational use only |
Order 3M Scotchrap Vinyl Corrosion Protection Tape 50 4 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
