High-visibility black and yellow safety stripe vinyl tape for marking hazard zones and lanes. Features wear-resistant embedded color, unique stretchability, and rubber adhesive for secure, long-lasting performance in industrial environments.

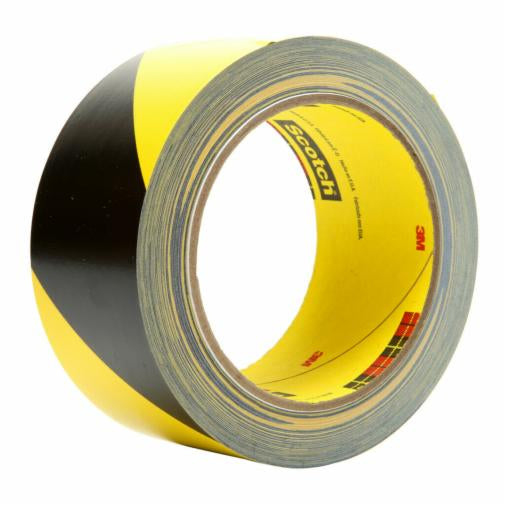

3M™ Safety Stripe Vinyl Tape 5702 is a premium industrial-grade safety marking solution designed for high-visibility lane and hazard area identification in factories, warehouses, hospitals, and public spaces. This durable black and yellow striped tape features a vinyl backing with embedded color that resists abrasion, scuffing, and moisture while maintaining superior visibility in demanding environments. The tape combines advanced adhesive technology with unique stretch properties to conform seamlessly to irregular, curved, and convex surfaces without lifting or retracting after application.
Engineered with a powerful rubber adhesive that provides quick stick and excellent holding strength on most surfaces, this tape prevents edge lifting and maintains secure placement even in high-traffic areas. The wear-resistant stripe pattern is printed below the surface to prevent rubbing off through normal wear, ensuring long-lasting performance. Each case contains 24 individually wrapped rolls of 36-yard length, making it convenient for bulk storage and distribution. The tape removes cleanly in one piece from most surfaces, significantly reducing cleanup and labor costs compared to traditional painting methods.

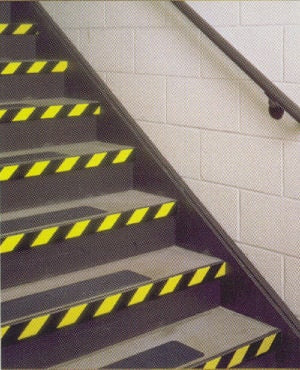

With a maximum operating temperature of 77°C (170°F) and minimum of 4°C (40°F), this tape delivers consistent performance across diverse industrial applications. The 5.4 mil thickness provides optimal balance between durability and flexibility, while the 170% elongation at break ensures excellent conformability. Ideal for marking driving and walking lanes, designating hazardous areas, and protecting protruding equipment and low-hanging objects, this tape represents a faster, more versatile, and cost-effective alternative to paint-based marking systems.
Key Features
- Wear-resistant stripe pattern printed below surface to prevent rubbing off during normal use
- Unique stretchability with slight elasticity for tight conformance to uneven, curved, and convex surfaces
- Powerful rubber adhesive with quick stick and excellent holding strength on most surfaces
- Embedded color technology resists abrasion, scuffing, and moisture for superior visibility
- Clean one-piece removal from most surfaces to minimize cleanup and labor costs
- High-visibility black and yellow stripes for attention-grabbing safety and hazard zone designation
- Resists harsh solvents, acids, and alkaline chemicals for extended service life
- Quick application with minimal prep work and cleanup compared to paint marking
- 170% elongation at break for superior flexibility and conformability
- Industrial-grade construction rated for temperatures from 40°F to 170°F
Technical Specifications
| Specification |
Value |
| Product Number | 5702 |
| Brand | 3M™ |
| Color | Black and Yellow |
| Backing Material | Vinyl |
| Adhesive Type | Rubber |
| Overall Width (Imperial) | 2 inches |
| Overall Width (Metric) | 50.8 mm |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.91 meters |
| Total Tape Thickness (Imperial) | 5.4 mil |
| Total Tape Thickness (Metric) | 0.14 mm |
| Backing Thickness (Imperial) | 4.2 mil |
| Backing Thickness (Metric) | 0.11 mm |
| Adhesive Thickness (Imperial) | 1.2 mil |
| Adhesive Thickness (Metric) | 0.11 mm |
| Tensile Strength (Imperial) | 240 oz/in |
| Tensile Strength (Metric) | 26 N/100mm |
| Elongation at Break | 170% |
| Maximum Operating Temperature (Fahrenheit) | 170°F |
| Maximum Operating Temperature (Celsius) | 77°C |
| Minimum Operating Temperature (Fahrenheit) | 40°F |
| Minimum Operating Temperature (Celsius) | 4°C |
| Shelf Life | 18 months |
| Case Quantity | 24 rolls |
| Units per Case | 24 individually wrapped rolls |
| Smallest Saleable Unit | Roll |
| Performance Level | High Performance |
| Application | Safety and Hazard Marking |
| Industries | Automotive, General Industrial, MRO, Military & Government, Specialty Vehicles, Transportation |
| Application/Industry | Maintenance and Repair Operations |
| UPC Code | 00051115688270 |
| 3M ID | 7010335133 |
Order 3M Safety Stripe Vinyl Tape 5702 Black Yellow 2 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
