Professional-grade black and yellow safety stripe vinyl tape featuring wear-resistant embedded color, unique stretchability, and rubber adhesive for industrial hazard marking in factories, warehouses, and hospitals.

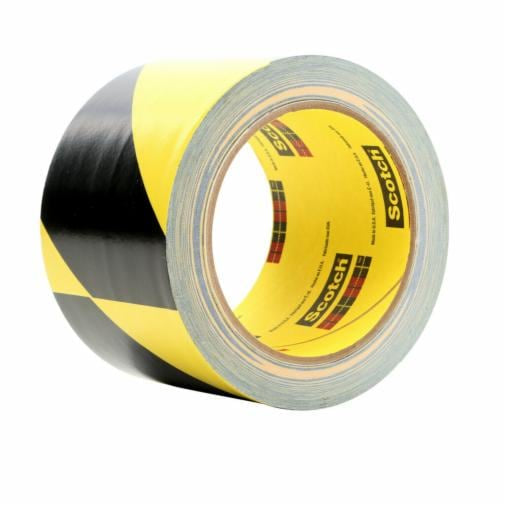

3M™ Safety Stripe Vinyl Tape 5702 is a professional-grade safety marking solution designed for industrial applications requiring high-visibility hazard identification. This durable tape features a distinctive black and yellow striped pattern that is embedded directly into the vinyl backing, ensuring the color resists abrasion, scuffing, and moisture that could compromise visibility. The tape comes in a convenient 12-roll case with each roll measuring 3 inches wide by 36 yards long, making it ideal for marking lanes, corridors, and hazardous areas in factories, warehouses, hospitals, and public spaces.
Engineered with unique stretch properties, this safety tape conforms seamlessly to irregular, curved, and convex surfaces while maintaining its stretched position without lifting after application. The rubber adhesive provides quick stick and excellent holding strength on most surfaces, preventing edge lifting and ensuring long-term durability. The 5.4 mil thickness combined with the vinyl backing creates a robust solution that resists common solvents, acids, and alkaline chemicals, extending the service life of your safety markings.
Unlike traditional paint-based marking methods, 3M Safety Stripe Vinyl Tape 5702 offers a faster, more versatile, and cost-effective solution with minimal preparation and cleanup requirements. The tape removes cleanly in one piece from most surfaces, significantly reducing labor costs and downtime. Each roll is individually wrapped for convenient storage and transportation, and the product is specifically formulated for industrial and occupational use, meeting professional workplace safety standards.
Key Features
- Wear-resistant embedded stripe pattern prevents rubbing off through normal wear and abrasion
- Unique stretchability conforms to irregular, curved, and convex surfaces without lifting or retracting
- Clean one-piece removal minimizes cleanup and labor costs significantly
- Powerful rubber adhesive provides excellent holding strength on most surfaces with quick stick
- Resistant to harsh solvents, acids, and alkaline chemicals for extended service life
- Attention-grabbing black and yellow stripes clearly designate safety and hazard zones
- Quick application without extensive prep work compared to traditional paint marking methods
- 18-month shelf life ensures product reliability and availability
- 170% elongation at break provides superior flexibility and durability
- Individually wrapped rolls in convenient 12-roll case for easy storage and transportation
Technical Specifications
| Specification |
Value |
| Brand | 3M |
| Product Number | 5702 |
| UPC Code | 00051115688263 |
| Overall Width (Imperial) | 3 inches |
| Overall Width (Metric) | 76.2 mm |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.91 meters |
| Total Tape Thickness (Imperial) | 5.4 mil |
| Total Tape Thickness (Metric) | 0.14 mm |
| Backing Material | Vinyl |
| Backing Thickness (Imperial) | 4.2 mil |
| Backing Thickness (Metric) | 0.11 mm |
| Adhesive Type | Rubber |
| Adhesive Thickness (Imperial) | 1.2 mil |
| Adhesive Thickness (Metric) | 0.11 mm |
| Product Color | Black and Yellow |
| Tensile Strength (Imperial) | 240 oz/in |
| Tensile Strength (Metric) | 26 N/100mm |
| Elongation at Break | 170% |
| Minimum Operating Temperature (Fahrenheit) | 40°F |
| Minimum Operating Temperature (Celsius) | 4°C |
| Maximum Operating Temperature (Fahrenheit) | 170°F |
| Maximum Operating Temperature (Celsius) | 77°C |
| Application Temperature Range (Fahrenheit) | 60°F to 80°F |
| Application Temperature Range (Celsius) | 16°C to 27°C |
| Shelf Life | 18 months |
| Units per Case | 12 rolls |
| Smallest Saleable Unit | Roll |
| Performance Level | High Performance |
| Primary Application | Safety and Hazard Marking |
| Application Industry | Maintenance and Repair Operations |
| Recommended Industries | Automotive, General Industrial, MRO, Military & Government, Specialty Vehicles, Transportation |
| Recommended Applications | Lane marking, Safety marking, Identify hazard areas |
| Packaging | Individually wrapped rolls in 12-roll case |
| Chemical Resistance | Resistant to solvents, acids, and alkaline chemicals |
Order 3M Safety Stripe Vinyl Tape 5702 Black Yellow 3 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
