High-performance black and white safety stripe vinyl tape with embedded color pattern, rubber adhesive, and unique stretchability for durable lane and hazard marking in industrial environments.

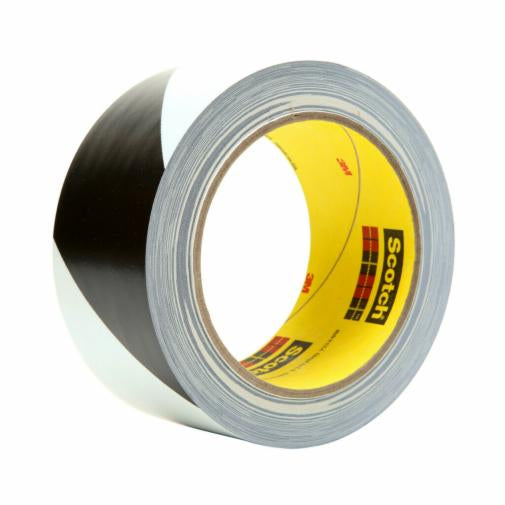

3M™ Safety Stripe Vinyl Tape 5700 is a high-performance safety marking solution designed for industrial and occupational applications. This durable vinyl tape features a distinctive black and white striped pattern that is embedded directly into the backing material, providing superior wear resistance and visibility. The tape is engineered with unique stretch properties that allow it to conform seamlessly to irregular, curved, and convex surfaces while maintaining tension and preventing edge lifting after application.
The tape utilizes a powerful rubber adhesive with quick-stick technology that provides excellent holding strength on most surfaces, ensuring secure and long-lasting adhesion in demanding workplace environments. The color is embedded into the vinyl backing to resist abrasion, scuffing, moisture, and harsh solvents, maintaining visibility and integrity throughout its service life. With an 18-month shelf life and high-performance construction, this tape is ideal for marking driving and walking lanes, hazardous areas, protruding equipment, and low-hanging objects in factories, warehouses, hospitals, and public areas.
Offering superior durability compared to traditional paint-based marking methods, 3M Safety Stripe Vinyl Tape 5700 requires minimal surface preparation and cleanup, reducing labor costs and downtime. The tape removes cleanly in one piece from most surfaces, making maintenance and updates simple and efficient. Each case contains 24 rolls of 36-yard tape, providing ample coverage for comprehensive safety marking programs. This product meets specifications D-3330, D-3652, and D-3759, and is specifically designed for industrial and occupational use only.
Key Features
- Wear-resistant embedded stripe pattern prevents rubbing off through normal wear and abrasion
- Unique stretchability allows tight conformance to uneven, curved, and convex surfaces without lifting
- Comes off clean in one piece for minimal cleanup and reduced labor costs
- Powerful rubber adhesive with quick-stick technology for excellent holding strength on most surfaces
- Resists harsh solvents, acids, alkaline chemicals, moisture, and scuffing for long service life
Technical Specifications
| Specification |
Value |
| Product Number | 5700 |
| Overall Width | 2 inches (5.1 cm) |
| Overall Length | 36 yards (32.91 meters) |
| Total Tape Thickness | 5.4 mil (0.14 mm) |
| Backing Material | Vinyl |
| Adhesive Type | Rubber |
| Backing Thickness | 4.2 mil (0.11 mm) |
| Adhesive Thickness | 1.2 mil (0.11 mm) |
| Tensile Strength | 240 oz/in (26 N/100mm) |
| Elongation at Break | 170% |
| Product Color | Black and White |
| Case Quantity | 24 rolls per case |
| Minimum Operating Temperature | 40°F (4°C) |
| Maximum Operating Temperature | 170°F (77°C) |
| Shelf Life | 18 months |
| Application | Safety and Hazard Marking |
| Performance Level | High Performance |
| Specifications Met | D-3330, D-3652, D-3759 |
| UPC Code | 00021200043673 |
| 3M ID | 7000048413 |
Order 3M Safety Stripe Vinyl Tape 5700 Black White 2 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
