High-visibility black and yellow safety stripe tape with embedded color, rubber adhesive, and unique stretchability for marking hazards and lanes in industrial facilities

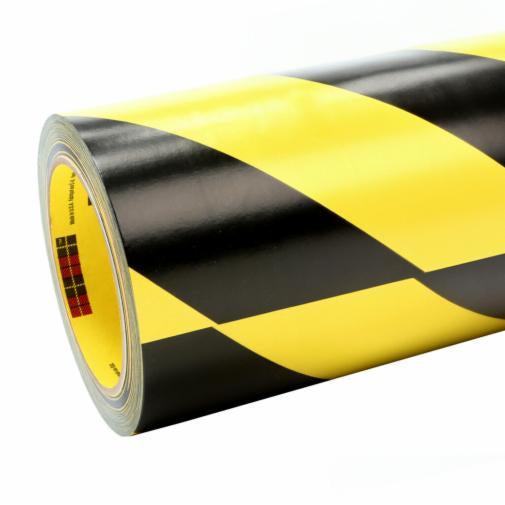

3M™ Safety Stripe Tape 5702 is a premium high-visibility vinyl safety marking tape engineered for industrial and occupational applications. Featuring bold black and yellow stripes, this durable tape is specifically designed to clearly mark lanes, corridors, hazardous areas, and safety zones in factories, warehouses, hospitals, and public facilities. The color is embedded directly into the vinyl backing to provide exceptional resistance to abrasion, scuffing, and moisture that could compromise visibility over time.
This innovative tape combines unique stretch properties with a powerful rubber adhesive for superior performance on both smooth and irregular surfaces. The slight elasticity allows the tape to conform perfectly to uneven, curved, and convex surfaces while remaining securely stretched without lifting or retracting after application. The rubber adhesive provides quick stick and excellent holding strength on most surfaces, preventing edge lifting and maintaining tape integrity throughout its service life. The construction is engineered to resist harsh solvents, acids, and alkaline chemicals commonly found in industrial environments.
Designed for rapid application without extensive surface preparation, 3M Safety Stripe Tape 5702 offers a faster, more versatile, and cost-effective alternative to traditional painting methods. The tape removes cleanly in one piece from most surfaces, significantly reducing cleanup and labor costs. Each case contains 4 rolls of 48-inch wide tape with 20 yards of length per roll, providing 320 total linear yards of safety marking material. With an 18-month shelf life and proven durability in demanding workplace environments, this tape is the ideal choice for comprehensive safety marking and hazard identification solutions.
Key Features
- Wear-resistant embedded color pattern prevents rubbing off through normal wear and maintains visibility
- Unique stretchability allows tight conformance to uneven, curved, and convex surfaces without lifting
- Powerful rubber adhesive provides excellent holding strength with quick stick on most surfaces
- Clean one-piece removal minimizes cleanup and labor costs while preventing surface damage
- Resists harsh solvents, acids, and alkaline chemicals for extended service life in industrial environments
Technical Specifications
| Specification |
Value |
| Product Number | 5702 |
| Overall Width | 48 inches (1,219.2 mm) |
| Overall Length | 20 yards (18.28 meters) per roll |
| Total Tape Thickness | 5.4 mil (0.14 mm) |
| Backing Material | Vinyl |
| Backing Thickness | 4.2 mil (0.11 mm) |
| Adhesive Type | Rubber |
| Adhesive Thickness | 1.2 mil (0.11 mm) |
| Color | Black and Yellow |
| Elongation at Break | 170% |
| Tensile Strength | 240 oz/in (26 N/100mm) |
| Minimum Operating Temperature | 40°F (4°C) |
| Maximum Operating Temperature | 170°F (77°C) |
| Application Temperature | 60°F to 80°F (16°C to 27°C) |
| Shelf Life | 18 months |
| Units per Case | 4 rolls |
| Total Linear Yards per Case | 80 yards (4 rolls × 20 yards) |
| UPC Code | 00051115236693 |
| 3M ID | 7010334365 |
| Performance Level | High Performance |
Order 3M Safety Stripe Tape 5702 Black Yellow 48 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
