Professional-grade black and yellow safety stripe vinyl tape with rubber adhesive, featuring wear-resistant embedded stripes, exceptional stretchability, and clean removal for industrial hazard marking and lane identification.

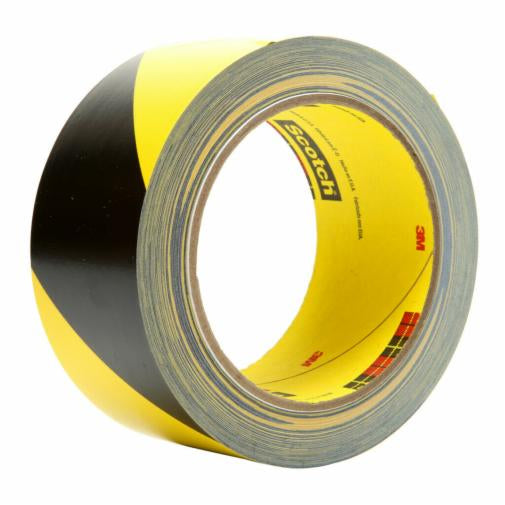

3M™ Safety Stripe Tape 5702 is a professional-grade vinyl safety marking tape designed for high-visibility hazard identification in industrial, commercial, and public environments. This durable tape features a distinctive black and yellow striped pattern that is embedded directly into the vinyl backing, providing exceptional resistance to abrasion, scuffing, and moisture that could compromise visibility. The tape is engineered with unique stretch properties that allow it to conform seamlessly to irregular, curved, and convex surfaces while maintaining tension and preventing edge lifting after application.
The rubber adhesive provides quick stick and excellent holding strength on most surfaces, ensuring reliable performance in demanding workplace conditions. With a thickness of 5.4 mil and a width of 1 inch, each roll contains 36 yards of tape, and the case includes 36 individually wrapped rolls for convenient storage and distribution. The tape is specifically formulated to resist common solvents, acids, and alkaline chemicals, making it suitable for use in factories, warehouses, hospitals, and public areas where safety marking is critical.
Unlike traditional paint-based marking systems, 3M Safety Stripe Tape 5702 offers rapid application with minimal surface preparation and cleanup requirements. The tape removes cleanly in one piece from most surfaces, significantly reducing labor costs and downtime. This combination of durability, visibility, ease of application, and clean removal makes it an ideal solution for lane marking, safety zone designation, hazard area identification, and protection of protruding equipment and low-hanging objects in industrial and commercial settings.
Key Features
- Wear-resistant embedded stripes prevent rubbing off through normal wear and surface abrasion
- Unique stretchability with slight elasticity conforms to uneven, curved, and convex surfaces without lifting
- Clean one-piece removal minimizes cleanup and labor costs
- Powerful rubber adhesive provides excellent holding strength and quick stick on most surfaces
- Highly visible black and yellow striped pattern clearly designates safety and hazard zones
- Long service life with construction resistant to harsh solvents, acids, and alkaline chemicals
- Faster application than paint with minimal surface preparation and no ventilation requirements
- Prevents edge lifting and maintains tape position through backing and adhesive properties
- Suitable for factories, warehouses, hospitals, and public area applications
- Individually wrapped rolls for convenient storage and distribution
Technical Specifications
| Specification |
Value |
| Product Number | 5702 |
| Brand | 3M™ |
| Color | Black and Yellow |
| Backing Material | Vinyl |
| Adhesive Type | Rubber |
| Overall Width (Imperial) | 1 inch |
| Overall Width (Metric) | 25.4 mm |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.91 meters |
| Total Tape Thickness without Liner (Imperial) | 5.4 mil |
| Total Tape Thickness without Liner (Metric) | 0.14 mm |
| Backing Thickness (Imperial) | 4.2 mil |
| Backing Thickness (Metric) | 0.11 mm |
| Adhesive Thickness (Imperial) | 1.2 mil |
| Adhesive Thickness (Metric) | 0.11 mm |
| Tensile Strength (Imperial) | 240 oz/in |
| Tensile Strength (Metric) | 26 N/100mm |
| Elongation at Break | 170% |
| Minimum Operating Temperature (Fahrenheit) | 40°F |
| Minimum Operating Temperature (Celsius) | 4°C |
| Maximum Operating Temperature (Fahrenheit) | 170°F |
| Maximum Operating Temperature (Celsius) | 77°C |
| Application Temperature Range (Fahrenheit) | 60°F to 80°F |
| Application Temperature Range (Celsius) | 16°C to 27°C |
| Shelf Life | 18 months |
| Units per Case | 36 rolls |
| Smallest Saleable Unit | Roll |
| Packaging | Individually wrapped rolls |
| Performance Level | High Performance |
| Application Type | Safety & Hazard Marking |
| Industries | Automotive, General Industrial, MRO, Military & Government, Specialty Vehicles, Transportation |
| UPC | 00051115688294 |
| 3M ID | 7010375080 |
