Highly visible black and yellow safety stripe vinyl tape with rubber adhesive for marking hazardous areas, lanes, and safety zones. Features wear-resistant stripes, unique stretchability, and clean removal properties for industrial applications.

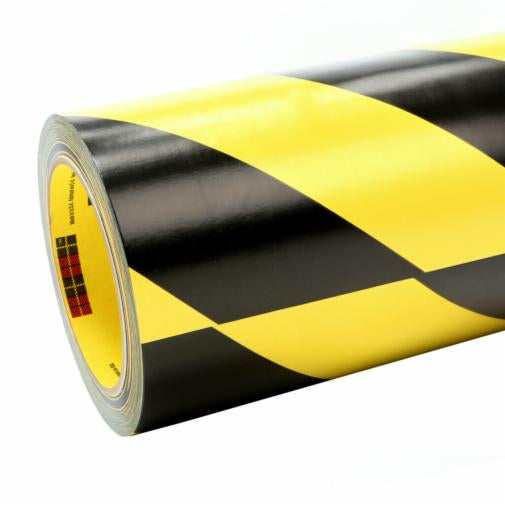

3M™ Safety Stripe Tape 5702 is a premium industrial-grade vinyl tape specifically engineered for highly visible safety indication in driving and walking lanes, hazardous areas, protruding equipment and low hanging objects. The black and yellow striped pattern is embedded directly into the vinyl backing to provide superior resistance against abrasion, scuffing, and moisture that could compromise visibility. This durable tape features a rubber adhesive that provides quick stick and excellent holding strength on most surfaces, ensuring reliable performance in demanding workplace environments.
Designed with unique stretch properties, this safety stripe tape conforms perfectly to irregular, curved, and convex surfaces while remaining stretched and without lifting after application. The 5.4 mil thickness provides optimal durability for long-term outdoor and indoor use. The combination of the vinyl backing and rubber adhesive properties work together to prevent edge lifting and keep the tape securely in place. Unlike traditional paint-based marking solutions, this vinyl tape offers faster application with minimal prep work and cleanup, making it an economical choice for facilities managers and maintenance professionals.
The tape removes cleanly in one piece from most surfaces, significantly reducing cleanup and labor costs. With an 18-month shelf life and maximum operating temperature of 170°F (77°C), this tape is ideal for use in factories, warehouses, hospitals, and public areas. The 170% elongation at break ensures flexibility and durability, while the tensile strength of 240 oz/in provides reliable holding power. For best results, apply to clean, dry surfaces at temperatures between 60°F (16°C) to 80°F (27°C), avoiding exposure to ketones, esters, and chlorinated hydrocarbons.
Key Features
- Wear-resistant stripes printed below surface to prevent rubbing off through normal wear
- Unique stretchability with slight elasticity for tight conformance to uneven surfaces without lifting
- Engineered for tidy one-piece removal to minimize cleanup and labor costs
- Attention-grabbing wide black and yellow stripes for clear hazard zone designation
- Powerful rubber adhesive provides excellent holding strength on most surfaces
- Long service life with construction resistant to harsh solvents, acids, and alkaline chemicals
- Quick application with minimal prep work and cleanup compared to traditional paint
- Vinyl backing resists abrasion, scuffing, and moisture for extended visibility
- 170% elongation at break ensures flexibility and durability on curved surfaces
- Suitable for factories, warehouses, hospitals, and public areas
Technical Specifications
| Specification |
Value |
| Product Number | 5702 |
| Total Tape Thickness without Liner | 5.4 mil (0.14 mm) |
| Backing Material | Vinyl |
| Adhesive Type | Rubber |
| Backing Thickness | 4.2 mil (0.11 mm) |
| Adhesive Thickness | 1.2 mil (0.11 mm) |
| Product Color | Black and Yellow |
| Elongation at Break | 170% |
| Tensile Strength | 240 oz/in (26 N/100mm) |
| Minimum Operating Temperature | 40°F (4°C) |
| Maximum Operating Temperature | 170°F (77°C) |
| Shelf Life | 18 Months |
| Application | Safety & Hazard Marking |
| Performance Level | High Performance |
| Smallest Saleable Unit | Roll |
| Brand | 3M™ |
| Industries | Automotive, General Industrial, MRO, Military & Government, Specialty Vehicles, Transportation |
| Application/Industry | Maintenance and Repair Operations |
| Recommended Application Temperature | 60°F to 80°F (16°C to 27°C) |
| Recommended Use | Lane marking, hazard area identification, safety zone designation |
