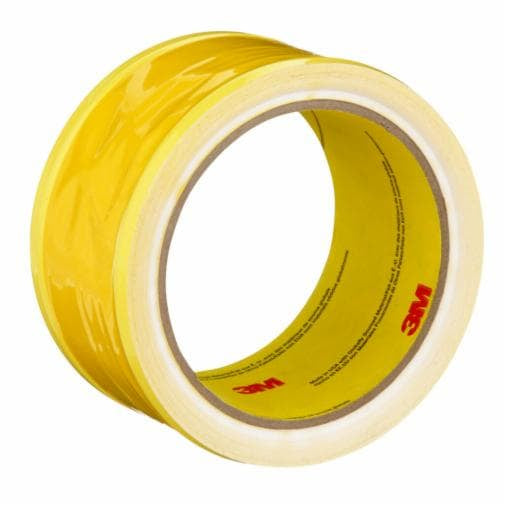

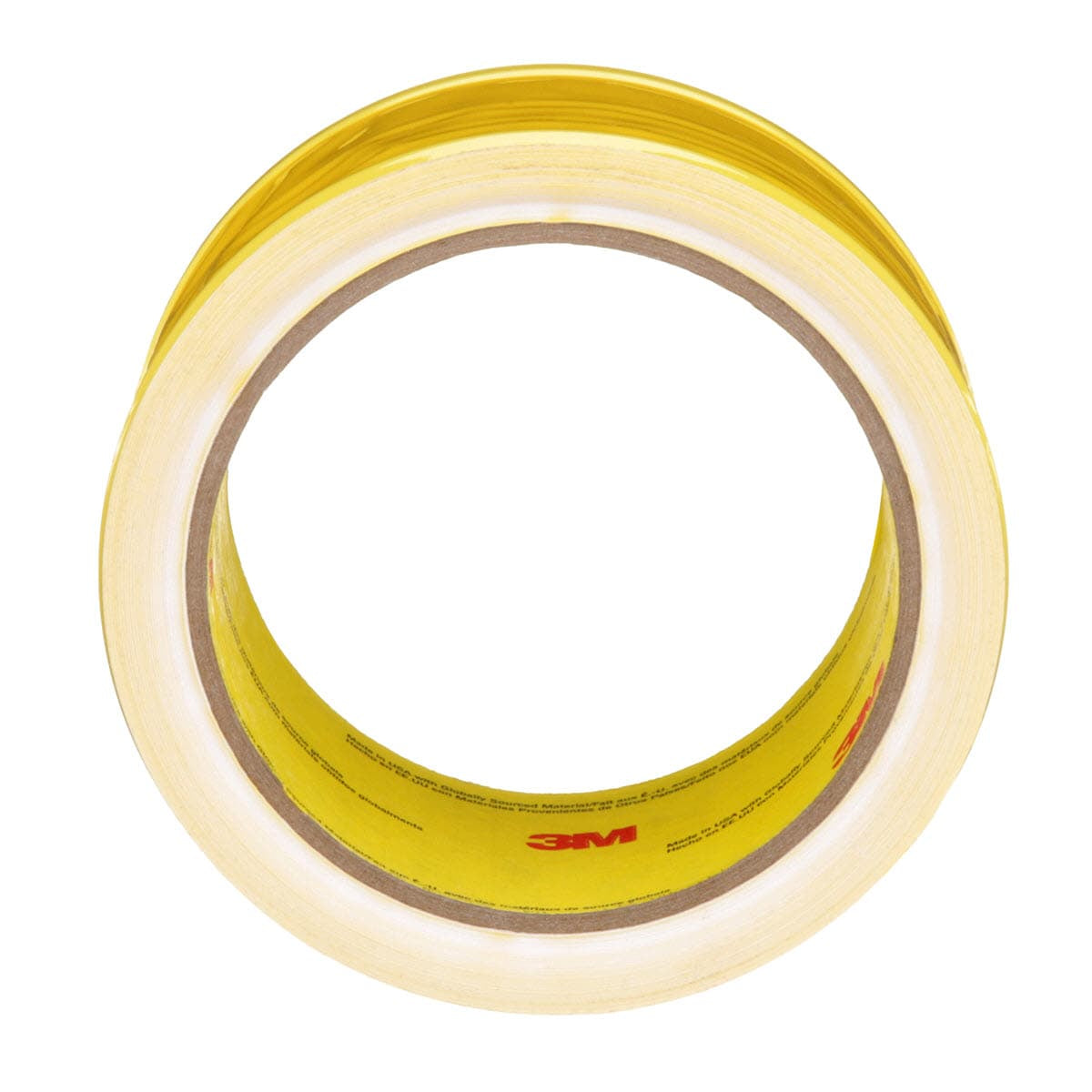

3M Riveters Tape 695 with polyethylene backing and acrylic adhesive for holding rivets during assembly. Yellow transparent center provides visibility, 2 in x 36 yd per roll, 24 rolls per case.
3M™ Riveters Tape 695 is a specialized industrial adhesive tape designed for holding rivets firmly in place during the riveting assembly process. This high-performance tape features a polyethylene film backing with acrylic adhesive coating along both edges, creating a zone-coated design that sticks to the substrate without adhering to the rivet itself. The transparent, tack-free yellow center window provides clear visibility of the rivet below, reducing rework and improving assembly efficiency. With dimensions of 2 inches wide by 36 yards long and a 3 mil thickness, this tape offers aggressive adhesion that bonds well to many surfaces while removing cleanly without leaving residue.
The conformable polyethylene backing ensures a tight hold on rivets during the entire assembly process and allows for use on irregular surfaces and tight work areas. This tape meets ASTM D3330, ASTM D3652, and ASTM D3759 specifications, making it suitable for automotive, metalworking, military, government, and transportation applications. With a shelf life of 12 months and operating temperatures ranging from -20°F to 120°F (-29°C to 49°C), the tape maintains consistent performance across various industrial environments. Each case contains 24 rolls, providing ample supply for high-volume production operations.
Designed exclusively for industrial and occupational use, 3M Riveters Tape 695 significantly decreases product rework and improves operational efficiency by ensuring rivets remain perfectly positioned throughout the assembly process. The tape's unique zone-coated adhesive technology and transparent center window make it an essential tool for precision riveting applications requiring both reliability and visibility.
Key Features
- Zone coated adhesive sticks to substrate without adhering to the rivet
- Polyethylene backing maintains tight hold on rivet during assembly process
- Transparent yellow center provides clear visibility to rivet below
- Aggressive adhesive bonds well to many surfaces yet removes cleanly
- Decreases product rework and improves efficiency
- Conformable backing allows use on irregular surfaces and tight work areas
- Meets ASTM D3330, D3652, and D3759 specifications
- Operating temperature range -20°F to 120°F (-29°C to 49°C)
- 12-month shelf life for extended storage
- Case quantity of 24 rolls for high-volume operations
Technical Specifications
| Specification |
Value |
| Product Name | 3M™ Riveters Tape 695 |
| Part Number | 695 |
| UPC | 00021200679483 |
| Overall Width (Imperial) | 2 in |
| Overall Width (Metric) | 5.1 cm |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 32.9 m |
| Total Tape Thickness without Liner (Imperial) | 3 mil |
| Total Tape Thickness without Liner (Metric) | 0.1 mm |
| Overall Thickness (Imperial) | 3 mil |
| Overall Thickness (Metric) | 0.08 mm |
| Backing Material | Polyethylene |
| Backing Thickness (Imperial) | 2 mil |
| Backing Thickness (Metric) | 0.05 mm |
| Back Side Adhesive Thickness (Imperial) | 1.181 mil |
| Back Side Adhesive Thickness (Metric) | 0.03 mm |
| Adhesive Type | Acrylic |
| Adhesion Strength (Imperial) | 15 oz/in |
| Adhesion Strength (Metric) | 16 N/100mm |
| Tensile Strength (Metric) | 14 N/100mm |
| Product Color | Yellow with White Adhesive |
| Maximum Operating Temperature (Fahrenheit) | 120°F |
| Maximum Operating Temperature (Celsius) | 49°C |
| Minimum Operating Temperature (Fahrenheit) | -20°F |
| Minimum Operating Temperature (Celsius) | -29°C |
| Case Quantity | 24 rolls |
| Smallest Saleable Unit | Roll |
| Shelf Life | 12 months |
| Brand | 3M™ |
| Specifications Met | ASTM D3330, ASTM D3652, ASTM D3759 |
| Industries | Automotive, Metalworking, Military & Government, Specialty Vehicles, Transportation |
| Recommended Applications | Holding rivets in place prior to and during the riveting process |
| Use Type | Industrial/Occupational Use Only |
