Premium transparent polyurethane protective tape for aircraft erosion protection with 18 mil thickness, pressure-sensitive acrylic adhesive, and exceptional abrasion resistance. Ideal for leading edges and high-wear aerospace applications.

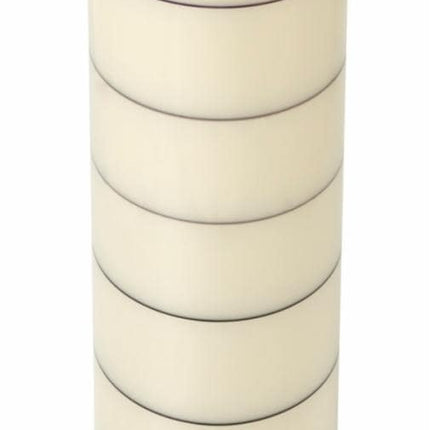

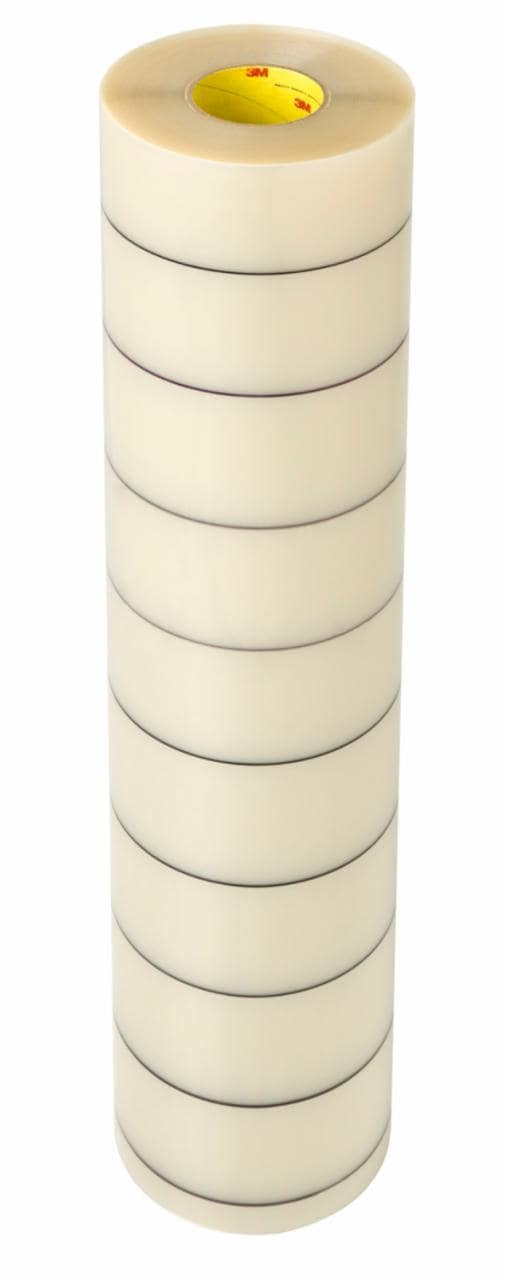

3M™ Polyurethane Protective Tape 8663 is a premium erosion protection tape specifically engineered for aircraft leading edges such as vertical stabilizers, wings, and control surfaces. This transparent 18 mil polyurethane elastomer tape provides exceptional protection against rain, sand, and environmental erosion while maintaining structural integrity. The tape is constructed with a tough, thermoplastic polyurethane backing that delivers superior abrasion, scratch, erosion, tear, and puncture resistance, making it ideal for high-wear applications in aerospace environments.
The tape features a long-aging, solvent-resistant, pressure-sensitive acrylic adhesive protected by a transparent easy-release liner. This advanced adhesive formulation bonds effectively to a wide variety of substrates including bare metal, painted surfaces, and composite materials, while retaining exceptional bond strength over extended periods and through various climate and temperature changes. The transparent nature of the tape allows for easy application and conforms smoothly over curved surfaces, and it can be painted or applied over existing paint without compromising performance.
Qualified to leading aircraft manufacturer specifications, this protective tape helps reduce maintenance costs, extends service life, and prevents beam corrosion. Airlines worldwide rely on 3M Polyurethane Protective Tapes to enhance operational efficiency, reduce process times, and lower overall aircraft maintenance burden. Each case contains 2 rolls of 36-yard length tape at 4 inches width, providing comprehensive coverage for aircraft protection applications.
Key Features
- Tough thermoplastic polyurethane elastomer backing with superior abrasion, scratch, erosion, tear and puncture resistance
- Long-aging, solvent-resistant pressure-sensitive acrylic adhesive protected by transparent easy-release liner
- Transparent design allows easy application and conforms over curved surfaces without visual obstruction
- Qualified to leading aircraft manufacturer specifications for sand and rain erosion protection
- Can be painted or applied to painted surfaces while maintaining exceptional bond strength and environmental resistance
- Effective adhesion to wide variety of substrates including metal, painted surfaces, and composite materials
- Removes easily when needed without leaving residue or causing substrate damage
- Reduces maintenance costs and extends aircraft service life while preventing beam corrosion
Technical Specifications
| Specification |
Value |
| Product Name | 3M™ Polyurethane Protective Tape 8663 |
| Part Number | 8663 |
| UPC Code | 00021200243370 |
| Backing Material | Thermoplastic Polyurethane Elastomer |
| Adhesive Type | Pressure-Sensitive Acrylic |
| Product Color | Transparent |
| Overall Width (Imperial) | 4 inches |
| Overall Width (Metric) | 101.6 mm |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.9 meters |
| Backing Thickness (Imperial) | 16 mil |
| Backing Thickness (Metric) | 0.41 mm |
| Overall Thickness (Imperial) | 18 mil |
| Overall Thickness (Metric) | 0.457 mm |
| Adhesion Strength (Imperial) | 84 lb. |
| Adhesion Strength (Metric) | 92 N/100mm |
| Tensile Strength (Imperial) | 117 lb/in |
| Tensile Strength (Metric) | 2049 N/100mm |
| Minimum Operating Temperature (Fahrenheit) | -40 °F |
| Minimum Operating Temperature (Celsius) | -40 °C |
| Maximum Operating Temperature (Fahrenheit) | 180 °F |
| Maximum Operating Temperature (Celsius) | 82 °C |
| Minimum Installation Temperature (Fahrenheit) | 60 °F |
| Minimum Installation Temperature (Celsius) | 15 °C |
| Case Quantity | 2 rolls per case |
| Liner Type | Polyethylene Skip Slit Liner |
| Application | Aircraft Erosion Protection |
| Primary Use | Leading Edges, Vertical Stabilizers, Wings |
| Brand | 3M™ |
Order 3M Polyurethane Protective Tape 8663 Transparent 4 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
