Premium aerospace-grade polyurethane protective tape with acrylic adhesive for leading edge erosion protection and anti-chafing applications on aircraft fuel cells and bladders

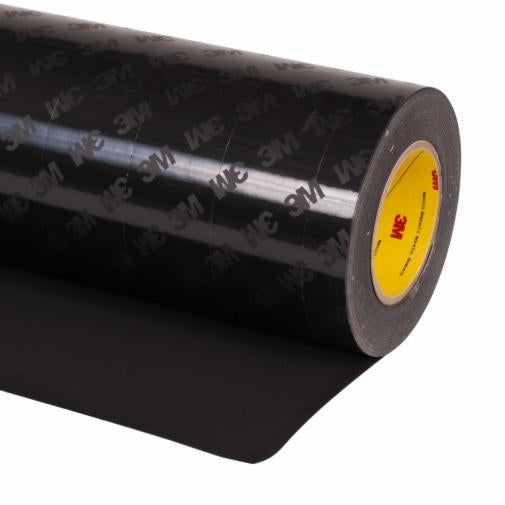

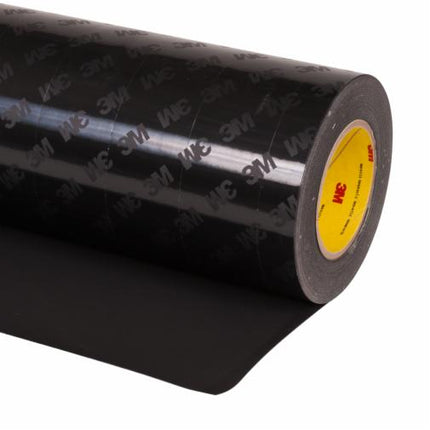

3M™ Polyurethane Protective Tape 8544 is a premium aerospace-grade glossy black protective tape featuring a 9 mil thick thermoplastic polyurethane backing combined with a high-shear acrylic adhesive. This specialized tape is engineered to provide exceptional leading edge erosion protection while resisting minor scratches, tears, erosion, and punctures. The thin and conformable design allows for easy application over curved surfaces, making it ideal for aircraft production and maintenance applications.
This tape is specifically designed for prevention of chafing on rivets in aircraft fuel cells and bladders, offering superior protection in demanding aerospace environments. The polyurethane backing delivers durability and flexibility, while the acrylic adhesive adheres reliably to a wide variety of substrates including painted and unpainted surfaces. The tape maintains consistent adhesion over time and can be removed cleanly when necessary. With UV-resistant properties and qualification to aerospace specifications, this tape represents the gold standard in surface protection for the aviation industry.
The 3M Polyurethane Protective Tape 8544 is part of 3M's comprehensive aerospace surface protection portfolio, trusted by major aircraft OEMs worldwide. It can be painted over or applied to already-painted surfaces, providing versatile protection solutions for both interior and exterior applications. Engineers and maintenance professionals rely on this tape to reduce costs through improved efficiency, reduced rework, and extended component life in critical aerospace applications.
Key Features
- Tough thermoplastic polyurethane elastomer with high shear strength acrylic adhesive
- Resists minor scratches, tears, erosion and punctures for extended durability
- Thin and conformable design easily applies to curved surfaces and contours
- UV-resistant properties maintain performance in outdoor and high-altitude environments
- Qualified to aerospace specifications for critical aircraft applications
- Can be painted over or applied to painted surfaces for versatile installation
- Removes cleanly without residue when replacement is needed
- Prevents chafing of rivets on aircraft fuel cells and bladders
Technical Specifications
| Specification |
Value |
| Product Number | 8544 |
| Backing Material | Polyurethane (Thermoplastic Polyurethane Elastomer) |
| Product Color | Glossy Black |
| Adhesive Type | Acrylic (High Shear Strength) |
| Overall Thickness | 9 mil (0.229 mm) |
| Backing Thickness | 6 mil (0.15 mm) |
| Adhesion Strength | 58 lb (63 N/100mm) |
| Tensile Strength | 2900 lb/in (2000 N/100mm) |
| Maximum Operating Temperature | 180°F (82°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Minimum Installation Temperature | 60°F (15°C) |
| Liner Material | PET (Polyethylene Terephthalate) |
| UV Resistant | Yes |
| Brand | 3M™ |
| Application | Anti-chafing, Erosion Protection, Surface Protection |
| Case Quantity | 1.0 |
| Aerospace Qualification | Yes - Qualified to Aerospace Specifications |
Order 3M Polyurethane Protective Tape 8544 Glossy Black at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
