Premium silicone adhesive polyester tape for high-temperature masking and splicing with clean removal, chemical resistance, and aerospace-grade durability in extreme conditions.

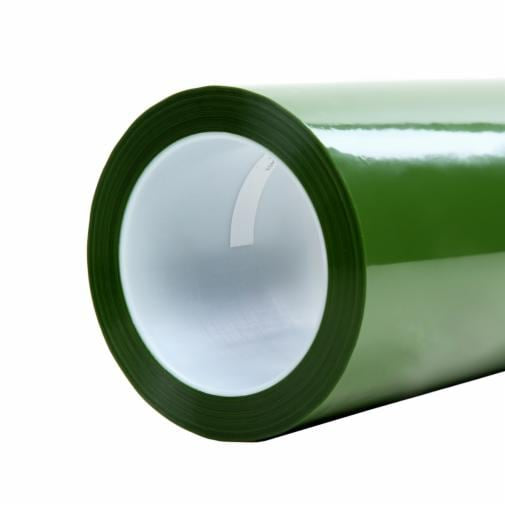

3M™ Polyester Tape 8403 is a premium high-temperature masking and splicing tape engineered for demanding industrial applications. This translucent green polyester tape features a pressure-sensitive silicone adhesive that provides exceptional bond strength on difficult-to-adhere surfaces, including silicone-coated papers and films. The tape maintains flexibility and adhesive performance across an impressive temperature range from -60°F (-50°C) to 425°F (218°C), making it ideal for aerospace, automotive, and composite manufacturing applications.
Designed as a thicker, more durable version of the 3M™ Polyester Tape 8402, the 8403 offers superior durability and longer service life in high-stress environments. The silicone adhesive formulation ensures clean, one-piece removal from most surfaces without residue, making it perfect for temporary masking applications. The tape's chemical-resistant backing provides exceptional durability in harsh environments such as anodization processes, acid baths, and caustic chemical milling operations.
This industrial-grade tape meets multiple aerospace specifications and is engineered for professional use in composite bonding, metal surface masking, flash breaker applications, and protective wrapping during handling and shipping. The 12-inch width and 144-yard length provide substantial coverage for production environments, with each roll packaged individually for convenience and inventory management.
Key Features
- Silicone adhesive provides clean one-piece removal from most surfaces without residue
- Operates reliably from -60°F to 425°F (-50°C to 218°C) for demanding temperature environments
- Chemical-resistant polyester backing withstands anodization, acid baths, and caustic processes
- Translucent green color enables easy identification for splicing and masking applications
- Thicker, more durable formulation than 8402 model for extended service life and durability
- Meets aerospace specifications including ASTM D3330, D3652, and D3759 standards
- Excellent adhesion to difficult surfaces including silicone-coated papers and films
- 140% elongation at break provides flexibility and conformability during application
Technical Specifications
| Specification |
Value |
| Product Number | 8403 |
| Backing Material | Polyester |
| Adhesive Type | Silicone |
| Product Color | Translucent Green |
| Overall Width (Imperial) | 12 inches |
| Overall Width (Metric) | 304.8 mm |
| Overall Length (Imperial) | 144 yards |
| Overall Length (Metric) | 131.67 meters |
| Backing Thickness (Metric) | 0.04 mm |
| Backing Thickness (Imperial) | 1.4 mil |
| Tensile Strength (Imperial) | 46 lb/in |
| Tensile Strength (Metric) | 71.8 N/100mm |
| Elongation at Break | 140% |
| Minimum Operating Temperature (Fahrenheit) | -60°F |
| Minimum Operating Temperature (Celsius) | -50°C |
| Maximum Operating Temperature (Fahrenheit) | 425°F |
| Maximum Operating Temperature (Celsius) | 218°C |
| Specifications Met | ASTM D3330, ASTM D3652, ASTM D3759 |
| Units per Case | 1 Roll |
| Smallest Saleable Unit | Roll |
| UPC | 00021200387180 |
| 3M ID | 7010333758 |
| Applications | High Temperature Masking, Splicing, Composite Bonding, Chemical Milling |
| Industries | Aerospace, Automotive, Electronics, Construction, Manufacturing, Metalworking, Military, Marine, Transportation |
Order 3M Polyester Tape 8403 Green High Temperature Masking at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
