Thin transparent polyester protective tape with low tack rubber adhesive for surface protection during production, shipping, and installation. Offers excellent abrasion, tear, and scratch resistance with clean removal.

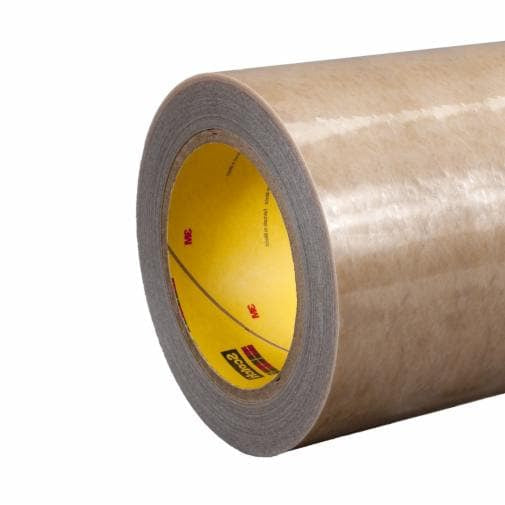

3M™ Polyester Protective Tape 336 is a thin, transparent polyester film tape specifically designed to protect finished surfaces from light abrasion, nicks, scratches, and damage during production, packing, shipping, and installation. The tape features a low tack rubber adhesive that adheres to a wide variety of surfaces including polished metal, stainless steel, aluminum, and plastic surfaces with minimal adhesion build-up and clean removal without leaving sticky residue. The transparent backing provides excellent visibility through the tape to the protected area, enabling easy application and monitoring of the protected surface.
This protective tape offers exceptional performance characteristics including excellent abrasion, tear, scratch, puncture, and moisture resistance. The extensible and abrasion-resistant polyester backing is ideal for forming operations and provides superior durability. The tape can withstand extended exposure to temperatures up to 150°F (66°C) for prolonged periods and short-term exposure up to 250°F (121°C) for 30 minutes or less, making it suitable for various industrial applications.
The product comes in a convenient roll format with dimensions of 11.8 inches (298.5 mm) width and 144 yards (131.7 meters) length, packaged as 1 roll per case. Commonly used applications include protection during plating processes on printed wiring boards, protection of polished stainless steel and aluminum in fabrication and shipping, protection of nameplates and instrument panels during installation, and protection of finished non-metallic surfaces. This industrial-grade tape is designed for occupational use only and is not intended for consumer sale or use.
Key Features
- Low tack rubber adhesive with minimal adhesion build-up and clean removal
- Transparent backing provides easy visibility through tape for simple application
- Extensible and abrasion resistant polyester backing ideal for forming operations
- Excellent abrasion, tear, scratch, puncture and moisture resistance
- Temperature resistant up to 150°F (66°C) for extended periods and 250°F (121°C) for short term exposure
Technical Specifications
| Specification |
Value |
| Product Name | 3M Polyester Protective Tape 336 |
| Part Number | 336 |
| UPC | 50021200383750 |
| Color | Transparent |
| Adhesive Type | Rubber - Low Tack |
| Backing Material | Polyester |
| Overall Width (Imperial) | 11.8 inches |
| Overall Width (Metric) | 298.5 mm |
| Overall Length (Imperial) | 144 yards |
| Overall Length (Metric) | 131.7 meters |
| Overall Thickness (Imperial) | 1.5 mil |
| Overall Thickness (Metric) | 0.038 mm |
| Backing Thickness (Imperial) | 0.9 mil |
| Backing Thickness (Metric) | 0.02 mm |
| Adhesive Thickness (Imperial) | 0.906 mil |
| Adhesive Thickness (Metric) | 0.023 mm |
| Adhesion Strength (Imperial) | 13 oz/in |
| Adhesion Strength (Metric) | 0.5 N/100mm |
| Tensile Strength (Imperial) | 26 lb/in |
| Tensile Strength (Metric) | 43.8 N/100mm |
| Elongation at Break | 115% |
| Maximum Operating Temperature (Celsius) | 65°C (150°F extended, 250°F short term) |
| Minimum Operating Temperature (Fahrenheit) | 40°F |
| Shelf Life | 12 months |
| Packaging | 1 Roll/Case |
| Application | Surface Protection |
| Smallest Saleable Unit | Roll |
| Brand | 3M |
| Industries | Aerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Military, Print, Specialty Vehicles, Transportation |
| Use Type | Industrial/Occupational Use Only |
