Transparent polyester protective tape with low tack rubber adhesive for surface protection during production, shipping and installation. Offers excellent abrasion, tear and scratch resistance with temperature capability to 150°F.

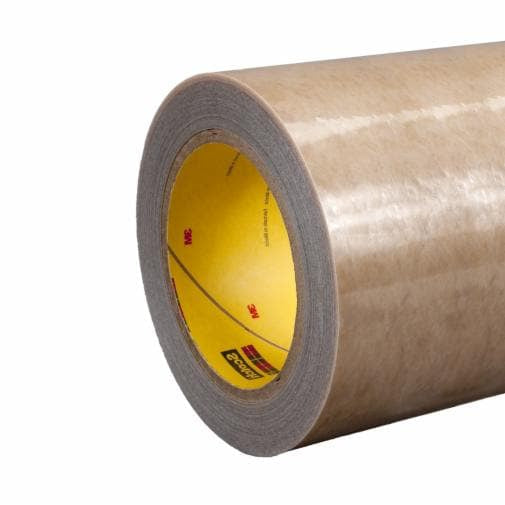

3M™ Polyester Protective Tape 336 is a thin, transparent polyester film tape specifically designed to protect finished surfaces from light abrasion, nicks, scratches, and damage during production, packing, shipping, and installation. This high-performance protective tape features a low tack rubber adhesive that adheres to a wide variety of surfaces with minimal adhesion build-up and leaves no sticky residue behind, making it ideal for polished metals, stainless steel, aluminum, and plastic surfaces. The transparent backing provides excellent visibility through the tape to the protected area, allowing for easy and precise application while maintaining visual inspection of the underlying surface.
The tape offers exceptional protection with excellent heat, abrasion, tear, scratch, impact, and puncture resistance. It performs reliably at temperatures up to 150°F (66°C) for extended periods and can withstand short-term exposure up to 250°F (121°C). The extensible, abrasion-resistant polyester backing is ideal for forming operations and contoured surfaces. With a total thickness of 1.5 mils and dimensions of 7.5 inches wide by 144 yards long, this product comes in a convenient 4-roll case format, making it perfect for high-volume industrial applications.
This tape is specifically engineered for industrial and occupational use, including protection during plating processes on printed wiring boards, protection of nameplates and instrument panels during shipping and installation, and protection of non-metallic finished surfaces. The combination of superior adhesion, flexibility, and protective qualities makes 3M Polyester Protective Tape 336 an essential product for manufacturing, aerospace, automotive, electronics, and construction industries.
Key Features
- Low tack rubber adhesive with minimal adhesion build-up and clean removal
- Transparent backing provides easy visibility through tape for precise application
- Extensible, abrasion resistant polyester backing ideal for forming operations
- Excellent heat, abrasion, tear, scratch, impact and puncture resistance
- Performs at temperatures up to 150°F (66°C) for extended periods with short-term capability to 250°F (121°C)
Technical Specifications
| Specification |
Value |
| Product Name | 3M Polyester Protective Tape 336 |
| Part Number | 336 |
| UPC Code | 05054180004049 |
| Color | Transparent |
| Backing Material | Polyester |
| Adhesive Type | Rubber - Low Tack |
| Overall Width | 7.5 inches (190.5 mm) |
| Overall Length | 144 yards (131.7 meters) |
| Total Thickness | 1.5 mils (0.038 mm) |
| Backing Thickness | 0.9 mils (0.02 mm) |
| Adhesive Thickness | 0.906 mils (0.023 mm) |
| Tensile Strength | 26 lb/in (43.8 N/100mm) |
| Elongation at Break | 115% |
| Adhesion Strength | 13 oz/in (0.5 N/100mm) |
| Maximum Operating Temperature | 150°F (65°C) extended, 250°F (121°C) short-term |
| Minimum Operating Temperature | 40°F (4°C) |
| Shelf Life | 12 months |
| Package Format | 4 rolls per case |
| Application Type | Surface Protection |
| Industries | Aerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Military, Print, Specialty Vehicles, Transportation |
