Premium transparent polyester film tape with aggressive acrylic adhesive, solvent-resistant, ideal for aerospace and industrial applications requiring chemical and moisture protection.

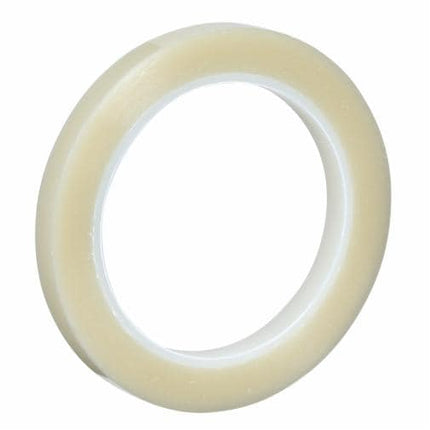

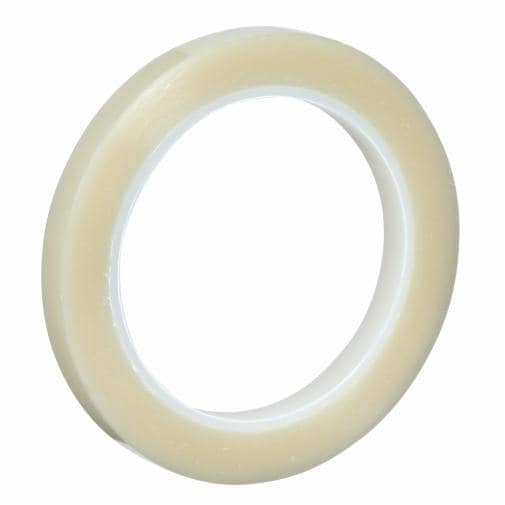

3M™ Polyester Film Tape 853 is a premium transparent polyester film tape engineered for demanding industrial applications where solvent resistance is critical. Comprised of a thin yet high-strength polyester backing combined with an aggressive acrylic adhesive, this tape delivers exceptional performance in harsh chemical environments. The transparent backing allows visibility of protected information and labels, making it ideal for critical label protection applications. This solvent-resistant tape is specifically designed to withstand exposure to jet engine fuel, hydraulic fluid, lubricating oils, and other aggressive chemicals without degradation.
The tape features a low moisture vapor transmission rate, enabling extended use in moisture-sensitive applications. With an operating temperature range from -60°F/-50°C to 300°F/150°C, it performs reliably across extreme temperature variations. Meeting demanding aerospace and government specifications including FAR 25.853(a) Appendix F Part I (a)(1)(ii) flammability requirements, Federal Spec. L-T-100 Type 1, and ASTM standards (D3330, D3652, D3759), this tape is qualified for the most stringent industrial applications.
Each case contains 72 rolls of tape, each measuring 1/2 inch wide by 72 yards long with a 2.2 mil thickness. The aggressive acrylic adhesive provides quick stick and excellent long-term holding power, ensuring reliable performance in aerospace, automotive, construction, electronics, military, and specialty vehicle applications. Perfect for sealing critical areas from moisture intrusion and protecting surfaces from abrasion and chemical damage.
Key Features
- Thin, high-strength polyester backing resists tearing and protects surfaces from abrasion
- Transparent backing allows visibility of information protected by the tape
- Resistant to many solvents including jet engine fuel, hydraulic fluid and lubricating oils
- Temperature resistance enables tape to perform in high temperature operations from -60°F to 300°F
- Aggressive acrylic adhesive provides quick stick and excellent long-term holding
- Meets several U.S. government and aerospace specifications including FAR 25.853(a) flammability requirements
- Low moisture vapor transmission rate for extended use in moisture-sensitive applications
- Meets ASTM standards D3330, D3652, and D3759
- Qualified to meet Federal Spec. L-T-100 Type 1
- Ideal for critical label protection, sealing, and surface protection applications
Technical Specifications
| Specification |
Value |
| Product Type | Polyester Film Tape |
| Model Number | 853 |
| Color | Transparent |
| Width (Imperial) | 0.5 inches |
| Width (Metric) | 12.7 millimeters |
| Length per Roll (Imperial) | 72 yards |
| Length per Roll (Metric) | 65.83 meters |
| Tape Thickness (Imperial) | 2.2 mil |
| Tape Thickness (Metric) | 0.06 millimeters |
| Backing Material | Polyester |
| Adhesive Type | Aggressive Acrylic |
| Minimum Operating Temperature (Fahrenheit) | -60°F |
| Minimum Operating Temperature (Celsius) | -50°C |
| Maximum Operating Temperature (Fahrenheit) | 300°F |
| Maximum Operating Temperature (Celsius) | 150°C |
| Tensile Strength (Imperial) | 25 lb/in |
| Tensile Strength (Metric) | 43.4 N/100mm |
| Elongation at Break | 83% |
| Backing Thickness (Metric) | 0.03 millimeters |
| Backing Thickness (Imperial) | 1.1 inches |
| Units per Case | 72 rolls |
| Smallest Saleable Unit | Roll |
| Part Number | 853 |
| 3M Product Number | 853 |
| 3M ID | 7000047523 |
| UPC Code | 00021200035869 |
| Applicable Standards | ASTM D3330, ASTM D3652, ASTM D3759, Federal Spec. L-T-100 Type 1, FAR 25.853(a) Appendix F Part I (a)(1)(ii) |
| Application Type | General Industrial |
| Solvent Resistance | Resistant to jet engine fuel, hydraulic fluid, lubricating oils, and many other solvents |
| Moisture Vapor Transmission | Low moisture vapor transmission rate |
| Brand | 3M™ |
| Industries Served | Appliance, Automotive, Construction, Electronics, General Industrial, Military & Government, Print, Specialty Vehicles, Transportation |
