Professional-grade transparent polyester film tape with solvent-resistant acrylic adhesive for aerospace, industrial, and chemical-resistant applications. 4in x 72yd rolls, temperature range -60°F to 300°F, meets FAR and government specifications.

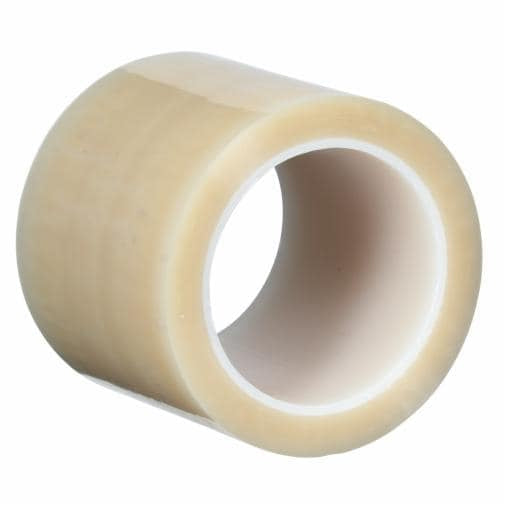

3M™ Polyester Film Tape 853 is a premium transparent polyester film tape engineered with aggressive acrylic adhesive for demanding industrial applications. This solvent-resistant tape features a thin, high-strength polyester backing that resists tearing while maintaining transparency to protect surfaces from abrasion without obscuring vital information. The tape is specifically designed for applications where exposure to harsh chemicals is a concern, including jet engine fuel, hydraulic fluid, and lubricating oils.
With a temperature resistance range from -60°F/-50°C to 300°F/150°C, this tape performs reliably in high-temperature operations and critical aerospace applications. The low moisture vapor transmission rate of the polyester backing makes it ideal for extended use in challenging environments. The aggressive acrylic adhesive provides quick stick and excellent long-term holding power, ensuring secure bonding even under extreme conditions.
Meeting demanding specifications including Federal Spec. L-T-100 Type 1 and FAR 25.853(a) Appendix F Part I (a)(1)(ii) flammability requirements, this tape is qualified for aerospace and government applications. Each case contains 12 rolls of 4-inch wide tape, with each roll measuring 72 yards in length. The 2.2 mil thickness provides optimal balance between durability and flexibility for various industrial bonding and sealing applications.
Key Features
- Thin, high-strength polyester backing resists tearing and protects surfaces from abrasion
- Transparent backing allows visibility of information protected by the tape
- Resistant to jet engine fuel, hydraulic fluid, lubricating oils and many industrial solvents
- Temperature resistance enables performance from -60°F to 300°F (-50°C to 150°C)
- Aggressive acrylic adhesive provides quick stick and excellent long-term holding power
- Meets FAR 25.853(a) Appendix F Part I flammability requirements for aerospace applications
- Low moisture vapor transmission rate ideal for extended use in challenging environments
- Meets Federal Spec. L-T-100 Type 1 and multiple government specifications
- Ideal for critical label protection without obscuring vital information
- Qualified for aerospace, military, and industrial manufacturing applications
Technical Specifications
| Specification |
Value |
| Product Name | 3M Polyester Film Tape 853 |
| Part Number | 853 |
| UPC Code | 00051128999264 |
| Overall Width (Imperial) | 4 inches |
| Overall Width (Metric) | 101.6 millimeters |
| Overall Length (Imperial) | 72 yards |
| Tape Thickness (Imperial) | 2.2 mil |
| Tape Thickness (Metric) | 0.06 millimeters |
| Backing Material | Polyester |
| Adhesive Type | Acrylic |
| Product Color | Transparent |
| Minimum Operating Temperature (Fahrenheit) | -60°F |
| Minimum Operating Temperature (Celsius) | -50°C |
| Maximum Operating Temperature (Fahrenheit) | 300°F |
| Maximum Operating Temperature (Celsius) | 150°C |
| Tensile Strength (Imperial) | 25 lb/in |
| Tensile Strength (Metric) | 43.4 N/100mm |
| Elongation at Break | 83% |
| Backing Thickness (Metric) | 0.03 millimeters |
| Backing Thickness (Imperial) | 1.1 mil |
| Smallest Saleable Unit | Roll |
| Quantity per Case | 12 rolls |
| Application Type | General Industrial |
| Specifications Met | ASTM D3330, ASTM D3652, ASTM D3759, Federal Spec. L-T-100 Type 1, FAR 25.853(a) |
| Brand | 3M |
| Industries | Appliance, Automotive, Construction, Electronics, General Industrial, Military & Government, Print, Specialty Vehicles, Transportation |
Order 3M Polyester Film Tape 853 Transparent 4in x 72yd at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
