Premium transparent polyester film tape with solvent-resistant acrylic adhesive, ideal for aerospace and industrial applications requiring chemical resistance and high-temperature performance.

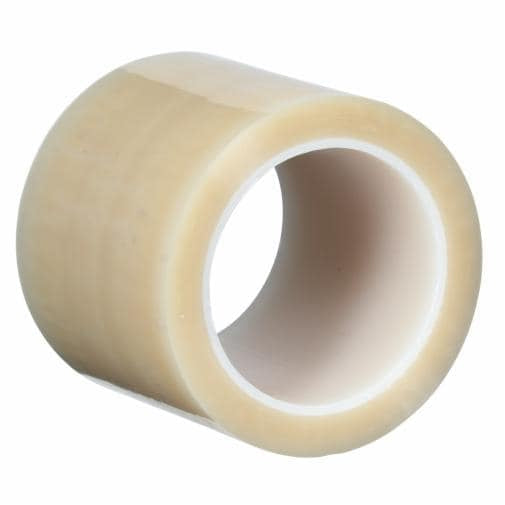

3M™ Polyester Film Tape 853 is a premium industrial-grade transparent polyester film tape engineered for demanding applications where solvent exposure and chemical resistance are critical concerns. This high-performance tape features a thin yet durable polyester backing combined with an aggressive acrylic adhesive formulation, providing quick stick and excellent long-term holding power even in challenging environments. The transparent backing allows visibility of information protected by the tape, making it ideal for critical label protection applications.
Designed to withstand extreme conditions, this tape offers exceptional resistance to many solvents including jet engine fuel, hydraulic fluid, and lubricating oils, making it the preferred choice for aerospace and industrial applications. The tape operates reliably across a wide temperature range from -60°F (-50°C) to 300°F (150°C), ensuring consistent performance in both extreme cold and high-temperature operations. With a low moisture vapor transmission rate, this tape provides extended protection against moisture intrusion in sealed applications.
Meeting several U.S. government and aerospace specifications, including Federal Spec. L-T-100 Type 1 and FAR 25.853(a) Appendix F Part I (a)(1)(ii) flammability requirements, 3M™ Polyester Film Tape 853 is engineered for mission-critical applications. Each case contains 12 rolls, with each roll measuring 3.5 inches wide by 72 yards long with a thickness of 2.2 mil, providing reliable performance for industrial, aerospace, automotive, and construction applications.
Key Features
- Thin, high-strength polyester backing resists tearing and protects surfaces from abrasion
- Transparent backing allows visibility of information protected by the tape for critical label applications
- Resistant to many solvents including jet engine fuel, hydraulic fluid and lubricating oils
- Temperature resistance enables tape to perform in high temperature operations from -60°F to 300°F
- Aggressive acrylic adhesive provides quick stick and excellent long-term holding power
- Meets U.S. government and aerospace specifications including Federal Spec. L-T-100 Type 1
- Meets flammability requirements of FAR 25.853(a) Appendix F Part I (a)(1)(ii)
- Low moisture vapor transmission rate for extended use in sealed applications
Technical Specifications
| Specification |
Value |
| Brand | 3M™ |
| Product Number | 853 |
| UPC | 00051128999257 |
| 3M ID | 7010048689 |
| Overall Width (Imperial) | 3.5 in |
| Overall Width (Metric) | 88.9 mm |
| Overall Length (Imperial) | 72 yd |
| Total Tape Thickness without Liner (Imperial) | 2.2 mil |
| Total Tape Thickness without Liner (Metric) | 0.06 mm |
| Backing (Carrier) Material | Polyester |
| Backing (Carrier) Thickness (Metric) | 0.03 mm |
| Backing (Carrier) Thickness (Imperial) | 1.1 in |
| Product Color | Transparent |
| Adhesive Type | Acrylic |
| Application | General Industrial |
| Minimum Operating Temperature (Fahrenheit) | -60 ℉ |
| Minimum Operating Temperature (Celsius) | -50 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 300 ℉ |
| Tensile Strength (Imperial) | 25 lb/in |
| Tensile Strength (Metric) | 43.4 N/100mm |
| Elongation at Break | 83% |
| Smallest Saleable Unit | Roll |
| Quantity per Case | 12 Roll/Case |
| Specifications Met | ASTM D3330, ASTM D3652, ASTM D3759, Federal Spec. L-T-100 Type 1 |
| Flammability Rating | FAR 25.853(a) Appendix F Part I (a)(1)(ii) |
| Industries | Appliance, Automotive, Construction, Electronics, General Industrial, Military & Government, Print, Specialty Vehicles, Transportation |
| Moisture Vapor Transmission Rate | Low |
Order 3M Polyester Film Tape 853 Transparent 3.5 inch 72 yard at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
