Shop 3M Membrane Switch Spacer Double Linered 9059MP Clear 9mil In Iraq Best Prices
Industrial-grade 9 mil double-coated membrane switch spacer with 3M High Performance Acrylic Adhesive 200MP on polyester film carrier, featuring heavy 94# PCK paper liners for superior stability and processing efficiency in switch assembly applications.

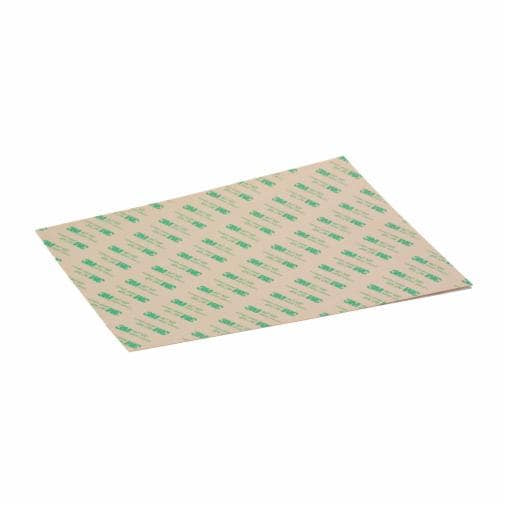

The 3M™ Membrane Switch Spacer Double Linered 9059MP is a premium industrial-grade adhesive spacer designed specifically for membrane switch applications requiring exceptional durability and precision. This 9 mil double-coated spacer features 3M™ High Performance Acrylic Adhesive 200MP applied at 2 mils on each side of a robust 5 mil polyester film carrier, delivering excellent shear strength and resistance to slippage and edge lifting. The product is engineered to withstand the repeated stress of switch actuation while maintaining clean edges for precise slitting and die-cutting operations.
Constructed with heavy 94# polycoated kraft (PCK) paper liners on both sides, this membrane switch spacer provides superior handling and lay-flat properties compared to standard liners. The double-linered design resists humidity, curling, tunneling, and buckling, ensuring dimensional stability for high-speed rotary die-cutting and efficient storage and processing. The adhesive formulation is specifically engineered to resist oozing at slits and die-cuts, enabling faster part processing and minimal waste while maintaining consistent coverage for full bonding performance after application.
This versatile spacer is ideal for a wide range of industrial applications including membrane switch assembly, switch mounting, circuit layer assembly, metal dome placement, lead protection, and die-cut laminations. With excellent high-temperature resistance up to 400°F (204°C) for short-term exposure, combined with outstanding chemical and UV resistance, the 3M™ Membrane Switch Spacer Double Linered 9059MP performs reliably through difficult environmental conditions and millions of actuations. The product comes with an 18-month shelf life and is available in sheet format, making it suitable for both small-scale and large-scale industrial manufacturing operations.
Key Features
- 9 mil double-coated spacer ideal for withstanding repeated stress of switch actuation
- 2 mil 3M High Performance Acrylic Adhesive 200MP on each side delivers excellent shear strength
- 5 mil polyester film carrier provides structural strength and dimensional stability
- Heavy 94# polycoated kraft paper liners resist humidity, curling, tunneling and buckling
- Adhesive resists oozing at slits and die-cuts for faster processing and minimal waste
- High-temperature resistance up to 400°F (204°C) short-term with chemical and UV resistance
- Enhanced rotary die-cutting performance at high speeds
- 18-month shelf life for extended storage capability
Technical Specifications
| Specification |
Value |
| Product Number | 9059MP |
| 3M ID | 7100073034 |
| Total Tape Thickness without Liner (Imperial) | 9 mil |
| Total Tape Thickness without Liner (Metric) | 0.23 mm |
| Backing (Carrier) Material | Polyester Film (PET) |
| Backing (Carrier) Thickness (Imperial) | 5 mil |
| Backing (Carrier) Thickness (Metric) | 0.13 mm |
| Face Side Adhesive Type | High Performance Acrylic Adhesive 200MP |
| Back Side Adhesive Type | High Performance Acrylic Adhesive 200MP |
| Face Side Adhesive Thickness (Imperial) | 2 mil |
| Face Side Adhesive Thickness (Metric) | 0.05 mm |
| Back Side Adhesive Thickness (Imperial) | 2 mil |
| Back Side Adhesive Thickness (Metric) | 0.05 mm |
| Product Color | Transparent/Clear |
| Primary Liner Material | 94# Polycoated Kraft Paper (PCK) |
| Primary Liner Color | White |
| Primary Liner Thickness (Imperial) | 7 mil |
| Primary Liner Thickness (Metric) | 0.18 mm |
| Secondary Liner Material | 94# Polycoated Kraft Paper (PCK) |
| Secondary Liner Color | White |
| Secondary Liner Thickness (Imperial) | 7 mil |
| Secondary Liner Thickness (Metric) | 0.18 mm |
| Maximum Operating Temperature (Fahrenheit) | 400°F |
| Maximum Operating Temperature (Celsius) | 204°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Shelf Life | 18 Months |
| Smallest Saleable Unit | Sheet |
| Brand | 3M |
| Application Format | Sheet Configuration |
| Industries Served | Aerospace, Appliance, Automotive, Electronics, General Industrial, MRO, Medical, Military & Government, Transportation |
