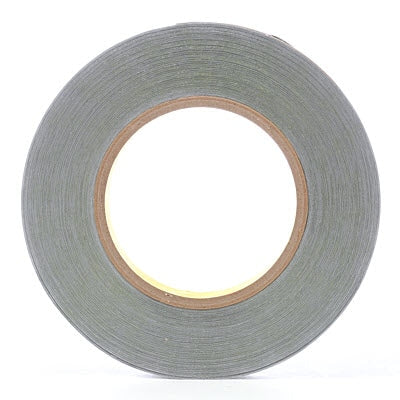

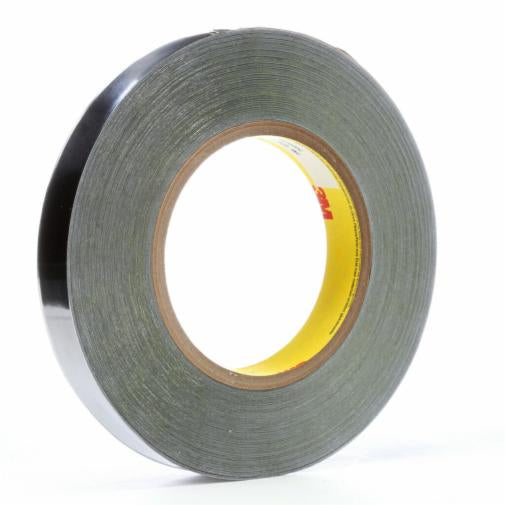

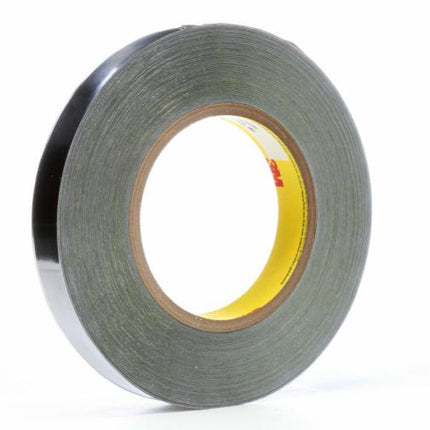

Shop 3M Lead Foil Tape 420 Dark Silver 1.25 inch 36 Yard Roll In Iraq Best Prices
Electrically and thermally conductive lead foil tape with rubber adhesive, flame and chemical resistant, ideal for electroplating masking and radiation shielding applications.
3M™ Lead Foil Tape 420 is an electrically and thermally conductive tape designed for industrial applications requiring superior performance in demanding environments. This highly conformable tape features a dark gray lead foil backing coated with a distinctive green rubber adhesive that provides excellent initial grab and long-lasting bond strength while removing cleanly from most surfaces. The tape resists flame, moisture, weather, UV degradation, and many chemicals used in electroplating and anodizing processes, making it ideal for specialized industrial masking and shielding applications.
The pliable and malleable construction of this lead foil tape allows it to be formed into detailed and intricate shapes and patterns, or die-cut into specific shapes to meet assembly and manufacturing process requirements. The lead foil backing can be burnished to fully cover the adhesive and allow full metal-to-metal contact with the base, resulting in a continuation of the electrical path and reducing build-up at the adhesive interface. With an easy-release film liner, this tape facilitates efficient application and handling in production environments.
With strong acid and base resistance, excellent electrical and thermal conductivity, and performance across a wide temperature range from -60°F to 225°F, this tape is formulated for use in aerospace, automotive, electronics, metalworking, and specialty vehicle manufacturing. Each case contains 36 rolls, providing ample supply for high-volume industrial operations requiring reliable masking, radiation barrier, moisture barrier, and chemical milling applications.
Key Features
- Electrically and thermally conductive lead foil backing for superior performance
- Conformable and pliable construction allows shaping into complex patterns and die-cutting
- Resists flame, moisture, weather, UV degradation, and electroplating/anodizing chemicals
- Rubber-based adhesive provides excellent initial grab and long-lasting bond with clean removal
- Wide operating temperature range from -60°F to 225°F (-51°C to 107°C)
- Strong acid and base resistance for chemical milling applications
- Easy-release film liner for efficient application and handling
- Burnishable lead foil for metal-to-metal contact and electrical path continuation
- Industrial-grade quality meeting ASTM D3652, D3759, and D3833 specifications
- Case quantity of 36 rolls provides ample supply for high-volume production
Technical Specifications
| Specification |
Value |
| Product Number | 420 |
| Brand | 3M™ |
| Color | Dark Silver |
| Backing Material | Lead Foil |
| Adhesive Type | Rubber |
| Overall Width (Imperial) | 1.25 in |
| Overall Width (Metric) | 31.75 mm |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 32.91 m |
| Total Tape Thickness without Liner (Imperial) | 6.8 mil |
| Total Tape Thickness without Liner (Metric) | 0.17 mm |
| Backing Thickness (Imperial) | 5 mil |
| Backing Thickness (Metric) | 0.13 mm |
| Adhesive Thickness (Imperial) | 2.1 mil |
| Tensile Strength (Imperial) | 20 lb/in |
| Tensile Strength (Metric) | 35 N/100mm |
| Elongation at Break | 12% |
| Maximum Operating Temperature (Fahrenheit) | 225°F |
| Maximum Operating Temperature (Celsius) | 107°C |
| Minimum Operating Temperature (Fahrenheit) | -60°F |
| Minimum Operating Temperature (Celsius) | -51°C |
| Shelf Life | 18 Months |
| Units per Case | 36 Rolls |
| Smallest Saleable Unit | Roll |
| Specifications Met | ASTM D3652, ASTM D3759, ASTM D3833 |
| UPC Code | 00051138954871 |
| 3M ID | 7000049108 |
| Suitable Industries | Aerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military & Government, Specialty Vehicles, Transportation |
Order 3M Lead Foil Tape 420 Dark Silver 1.25 inch 36 Yard Roll at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
