Premium electrically conductive lead foil tape with rubber adhesive, ideal for electroplating masking, radiation barriers, and industrial shielding applications. Conforms to complex shapes, resists chemicals and UV, operates from -60°F to 225°F.

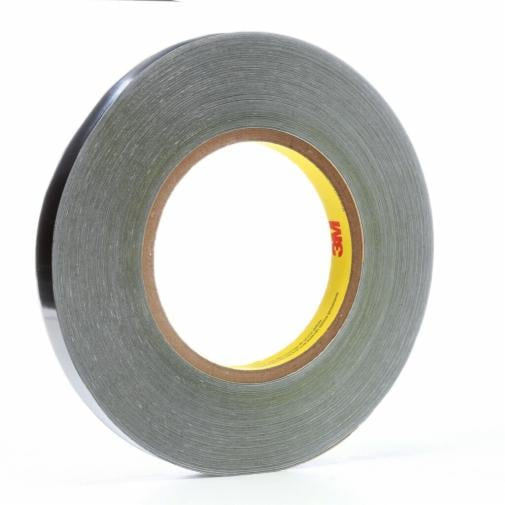

3M™ Lead Foil Tape 420 is a premium electrically and thermally conductive tape designed for demanding industrial applications. This highly conformable tape features a dark gray lead foil backing coated with a distinctive green rubber adhesive that provides excellent initial grab and long-lasting bonds while removing cleanly from most surfaces. The tape resists flame, moisture, weather, UV degradation, and many chemicals commonly used in electroplating and anodizing processes, making it ideal for critical masking and shielding applications.
The lead foil backing can be burnished to fully cover the adhesive and allow complete contact of the lead foil to the metal base, resulting in metal-to-metal contact that continues the electrical path and reduces build-up at the adhesive interface. This extremely conformable and pliable tape can be formed into detailed and intricate shapes and patterns, or die-cut into specific shapes to meet assembly and manufacturing process requirements. With an easy-release film liner, the tape enables precision cutting and application for complex geometric patterns.
This specialized tape is formulated to deliver strong acid and base resistance, making it exceptionally suitable for electroplating operations, radiation barrier applications, moisture barriers, and chemical milling processes. The rubber-based adhesive bonds well to a variety of surfaces, including most metals, and performs reliably over a wide temperature range from -60°F to 225°F. Each case contains 12 rolls, providing ample supply for production environments.
Key Features
- Electrically and thermally conductive lead foil backing for superior electrical path continuity
- Highly conformable and pliable design allows shaping into complex patterns and die-cutting capabilities
- Rubber-based adhesive with excellent initial grab and clean removal from most surfaces
- Resists flame, moisture, weather, UV degradation, and chemicals used in electroplating and anodizing
- Wide operating temperature range from -60°F to -225°F with strong acid and base resistance
- Easy-release film liner enables precision cutting and application for detailed assembly processes
- Metal-to-metal contact capability when burnished reduces adhesive interface build-up
- Suitable for industrial/occupational use with 18-month shelf life
- Case contains 12 rolls with 36 yards per roll for efficient production supply
Technical Specifications
| Specification |
Value |
| Product Name | 3M™ Lead Foil Tape 420, Dark Silver |
| Part Number | 420 |
| UPC Code | 00051138954123 |
| 3M ID | 7000029006 |
| Backing Material | Lead Foil |
| Adhesive Type | Rubber-based with green color |
| Overall Width (Imperial) | 0.8 inches |
| Overall Width (Metric) | 1.9 centimeters |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.9 meters |
| Backing Thickness (Imperial) | 5 mil |
| Backing Thickness (Metric) | 0.13 millimeters |
| Adhesive Thickness (Imperial) | 2.1 mil |
| Total Tape Thickness (Imperial) | 6.8 mil |
| Total Tape Thickness (Metric) | 0.17 millimeters |
| Tensile Strength (Imperial) | 20 lb/in |
| Tensile Strength (Metric) | 35 N/100mm |
| Elongation at Break | 12% |
| Minimum Operating Temperature (Fahrenheit) | -60°F |
| Minimum Operating Temperature (Celsius) | -51°C |
| Maximum Operating Temperature (Fahrenheit) | 225°F |
| Maximum Operating Temperature (Celsius) | 107°C |
| Product Color | Dark Silver |
| Smallest Saleable Unit | Roll |
| Units per Case | 12 rolls |
| Shelf Life | 18 months |
| Brand | 3M™ |
| Specifications Met | ASTM D3652, ASTM D3759, ASTM D3833 |
| Industries Served | Aerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military & Government, Specialty Vehicles, Transportation |
| Primary Applications | Masking in electroplating, radiation barrier, moisture barrier, chemical milling |
| Electrical Conductivity | Electrically conductive |
| Thermal Conductivity | Thermally conductive |
| Chemical Resistance | Strong acid and base resistance |
| UV Resistance | Resists UV degradation |
| Flame Resistance | Flame resistant |
| Moisture Resistance | Moisture resistant |
| Weather Resistance | Weather resistant |
| Conformability | Highly conformable and pliable |
| Die-Cut Capability | Yes, can be die-cut into specific shapes |
| Liner Type | Easy-release film liner |
