High-performance double-coated industrial tape with 3.5 mil acrylic adhesive on each side, 0.5 inch width, 60 yard length, white tissue carrier, hand-tearable, ideal for bonding to textured surfaces, plastics, metal, glass and foam. 72 rolls per case.

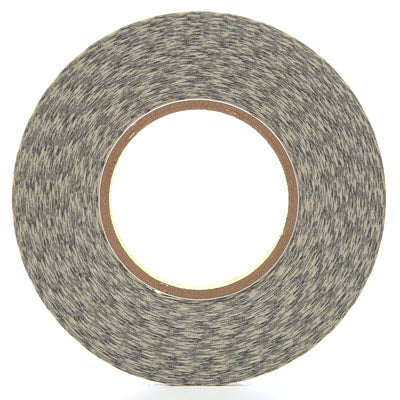

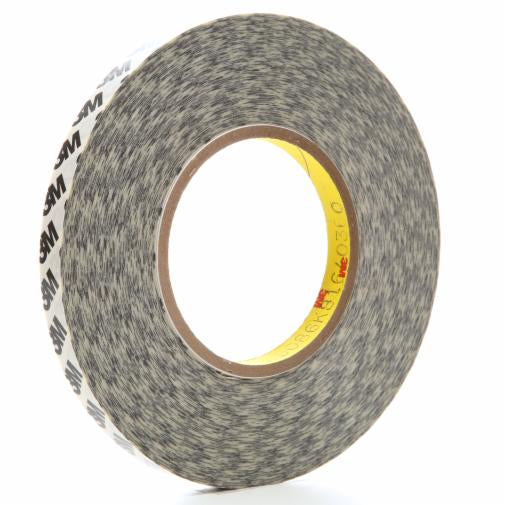

3M™ High Performance Double Coated Tape 9086 is a premium industrial adhesive tape featuring specially-formulated acrylic adhesive that delivers very high initial tack and excellent peel and shear performance on a wide range of surfaces and materials. This white double-coated tape comes in rolls measuring 0.5 inches wide by 60 yards long with a 7.5 mil total thickness, packaged in cases of 72 rolls for high-volume industrial applications. The tape features a 0.5 mil tissue carrier coated with 3.5 mils of high-performance adhesive on each side, making it ideal for bonding to smooth, rough, or textured surfaces including paint, stainless steel, glass, foams, and various plastics.
The 3M™ Adhesive 375 family formulation provides exceptional initial adhesion combined with excellent peel and shear resistance, making this tape suitable for demanding industrial applications. The conformable tissue carrier can be easily torn by hand for efficient processing and application, while the white 3.2 mil glassine paper liner ensures quick and clean release during application. This double-coated tape is suitable for both indoor and outdoor use, with an operating temperature range from -40°F to 250°F (-40°C to 121°C).
Recommended for zero-speed and general splicing, POP displays, fabric applications, blind manufacturing, and print finishing. The tape bonds to a wide variety of substrates including textured surfaces and difficult-to-stick-to plastics, making it a versatile solution for converter solutions, general industrial, point of purchase, and signage applications. For industrial and occupational use only.
Key Features
- Double-coated tissue carrier with 3.5 mil high-performance adhesive on each side
- 3M™ Adhesive 375 family formulation provides very high initial tack and excellent peel and shear performance
- Bonds to wide variety of substrates including textured surfaces and difficult-to-stick-to plastics
- Hand-tearable 0.5 mil tissue carrier for efficient handling and fast application
- White 3.2 mil glassine paper liner for quick release and clean application
- Operating temperature range from -40°F to 250°F (-40°C to 121°C)
- Suitable for both indoor and outdoor applications
- Compatible with hand dispenser for automated application
- 0.5 inch width by 60 yard length per roll with 72 rolls per case
Technical Specifications
| Specification |
Value |
| Product Number | 9086 |
| Brand | 3M™ |
| Product Form | Roll |
| Overall Width (Imperial) | 0.5 inches |
| Overall Width (Metric) | 12.7 millimeters |
| Overall Length (Imperial) | 60 yards |
| Overall Length (Metric) | 54.86 meters |
| Total Tape Thickness without Liner (Imperial) | 7.5 mil |
| Total Tape Thickness without Liner (Metric) | 0.19 millimeters |
| Backing (Carrier) Material | Tissue |
| Backing (Carrier) Thickness (Imperial) | 0.5 mil |
| Backing (Carrier) Thickness (Metric) | 0.013 millimeters |
| Face Side Adhesive Type | High Performance Adhesive 375 |
| Face Side Adhesive Thickness (Imperial) | 3.5 mil |
| Face Side Adhesive Thickness (Metric) | 0.09 millimeters |
| Back Side Adhesive Type | High Performance Adhesive 375 |
| Back Side Adhesive Thickness (Imperial) | 3.5 mil |
| Back Side Adhesive Thickness (Metric) | 0.09 millimeters |
| Adhesive Type | Modified Acrylic |
| Primary Liner | Glassine Paper |
| Primary Liner Color | White |
| Primary Liner Thickness (Imperial) | 3 mil |
| Primary Liner Thickness (Metric) | 0.08 millimeters |
| Product Color | White |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 250°F |
| Maximum Operating Temperature (Celsius) | 121°C |
| Indoor/Outdoor | Both |
| Application | Zero-Speed and General Splicing |
| Recommended Applications | Zero-speed splicing, general splicing, POP displays, fabrics, blind manufacturing, print finishing |
| Industries | Converter Solutions, General Industrial, Point of Purchase, Signage |
| Units per Case | 72 rolls |
| Smallest Saleable Unit | Roll |
| UPC Code | 00051128759196 |
| 3M ID | 7010375421 |
| Master Size Length (Metric) | 150.9 meters |
| Master Size Width (Metric) | 137 centimeters |
| Use Type | Industrial/Occupational use only |
Order 3M High Performance Double Coated Tape 9086 White Roll at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
