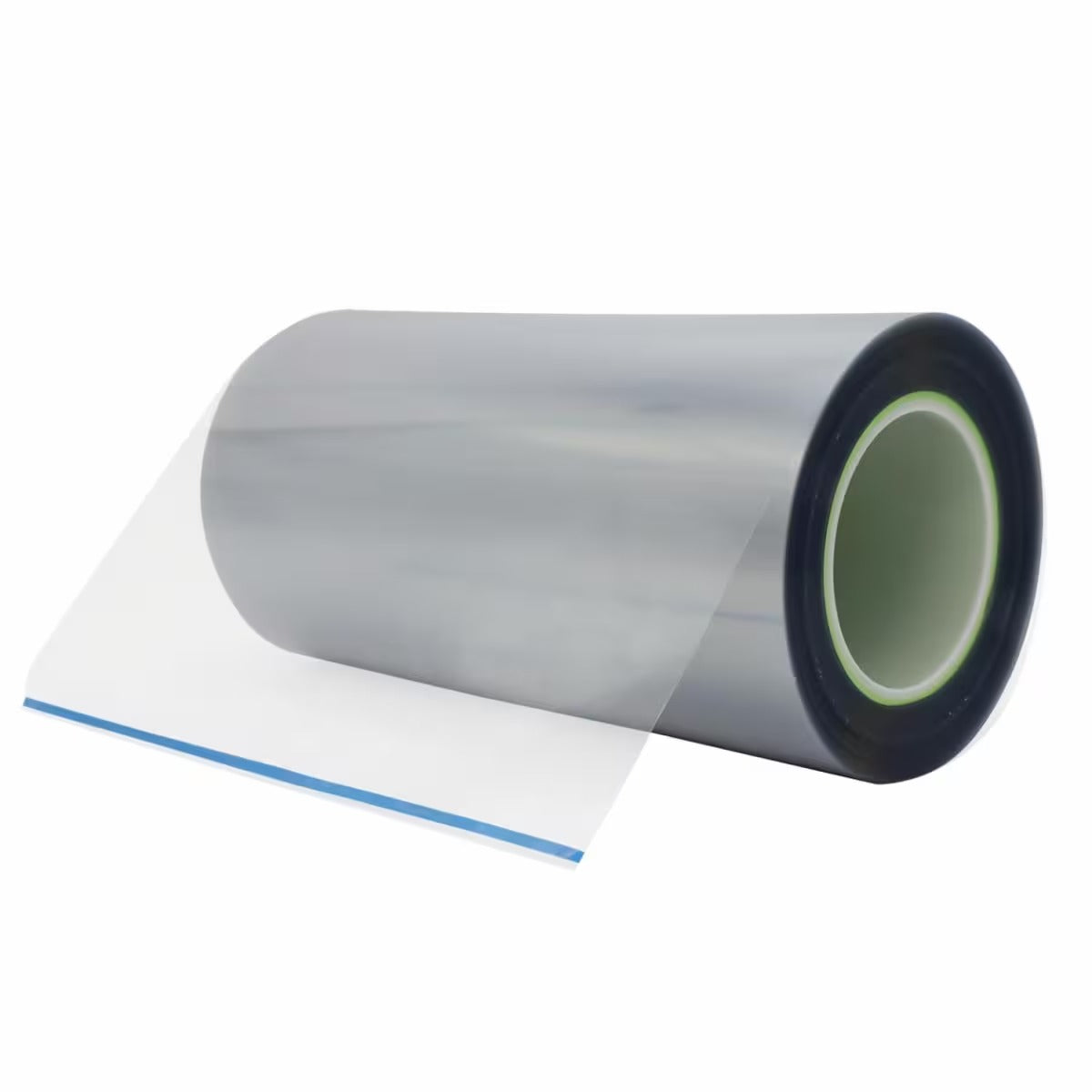

Shop 3M High Performance Clean Adhesive Transfer Tape 74911NH In Iraq Best Prices
High-performance adhesive transfer tape engineered for foldable OLED displays with exceptional adhesion, low modulus properties, and clean removal capabilities for reliable device bonding.
3M™ High Performance Clean Adhesive Transfer Tape 74911NH is specially engineered to overcome the stress and wear that foldable OLED displays face without compromising performance. This advanced adhesive transfer tape delivers outstanding adhesion to metals, high-surface energy (HSE) plastics, and other substrates including PET, SUS, and PI materials. The unique rheological properties of this tape make it ideally suited for foldable device bonding applications by effectively combating screen layer creep, thanks to its low modulus at low temperatures (-20°C: 0.7 MPa, 25°C: 0.07 MPa, 85°C: 0.05 MPa).
This tape maintains exceptional performance even under harsh conditions, including high humidity and temperature extremes, with minimal cockling and wrinkling. The high-performance acrylic adhesive formulation ensures reliable and consistent bonding across various manufacturing processes. With a low profile thickness of 110 micrometers (4.4 mil), it provides an optimal balance between structural integrity and flexibility for modern foldable display manufacturing.
The 3M™ High Performance Clean Adhesive Transfer Tape 74911NH is an ideal solution for manufacturers requiring a dust-free and particle-free lamination process. It demonstrates reliable liner release properties over time and offers clean removal from substrates like stainless steel at high temperatures (75°C for 15 minutes), significantly improving overall processability and manufacturing efficiency. This product is backed by 3M's commitment to innovation and quality in electronics manufacturing.
Key Features
- Foldable by Design - Rheological properties combat screen layer creep in foldable OLED device bonding applications
- Low Modulus - Delivers modulus values of 0.7 MPa at -20°C, 0.07 MPa at 25°C, and 0.05 MPa at 85°C for optimal flexibility
- Outstanding Adhesion - Bonds effectively to metals, high-surface energy plastics, PET, SUS, and PI substrates
- Resilient Performance - Maintains exceptional performance under harsh conditions including high humidity and temperature extremes with minimal cockling
- Clean Removal - Offers clean removal from display side at high temperatures (75°C for 15 minutes) with excellent liner release properties
- Dust-Free Process - Ensures particle-free lamination for improved manufacturing efficiency
- Low Profile Design - Ultra-thin 110 micrometer thickness provides structural integrity with enhanced flexibility
Technical Specifications
| Specification |
Value |
| Product Number | 74911NH |
| 3M ID | B5005551008 |
| Adhesive Type | High Performance Acrylic |
| Application | Bonding |
| Total Tape Thickness without Liner (Metric) | 0.11 mm (110 micrometers) |
| Total Tape Thickness without Liner (Imperial) | 4.4 mil |
| Modulus at -20°C | 0.7 MPa |
| Modulus at 25°C | 0.07 MPa |
| Modulus at 85°C | 0.05 MPa |
| Product Color | Transparent |
| Industry | Electronics |
| Brand | 3M™ |
| Suitable Substrates | Metals, high-surface energy plastics, PET, SUS, PI |
| Clean Removal Temperature | 75°C for 15 minutes |
| Primary Use | Foldable OLED Display Bonding |
Order 3M High Performance Clean Adhesive Transfer Tape 74911NH at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
