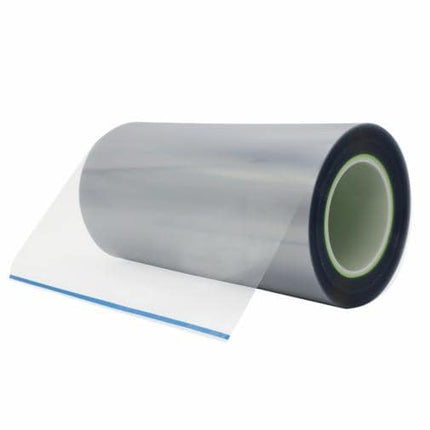

Shop 3M High Performance Clean Adhesive Transfer Tape 74207NH In Iraq Best Prices
High-performance adhesive transfer tape engineered for foldable OLED displays with low modulus properties, outstanding adhesion to multiple substrates, and clean removal at elevated temperatures.
3M™ High Performance Clean Adhesive Transfer Tape 74207NH is specially engineered for foldable OLED display applications, delivering exceptional adhesion performance without compromising on flexibility. This advanced tape features low modulus properties that combat screen layer creep, with values of 0.3 MPa at -20°C, 0.05 MPa at 25°C, and 0.03 MPa at 85°C, making it ideal for the demanding requirements of foldable device bonding. The tape maintains outstanding performance under harsh conditions including high humidity and extreme temperatures while minimizing cockling and wrinkling.
Designed for superior processability, this adhesive transfer tape offers clean removal on the display side at elevated temperatures (75°C, 15 minutes) and demonstrates reliable liner release properties over time. It provides outstanding adhesion to multiple substrates including metals, high-surface energy (HSE) plastics, PET, stainless steel (SUS), and polyimide (PI). The tape's low profile thickness of 75 micrometers (3 mil) ensures minimal bulk while delivering maximum performance, making it an ideal solution for manufacturers requiring dust-free and particle-free lamination processes.
With its high-performance acrylic adhesive formulation, this tape represents the pinnacle of adhesive transfer tape technology for next-generation foldable display manufacturing. Choose 3M™ High Performance Clean Adhesive Transfer Tape 74207NH to unlock the full potential of your foldable displays and ensure reliable, long-lasting performance in demanding applications.
Key Features
- Foldable by Design: Rheological properties combat screen layer creep in foldable OLED device bonding applications
- Low Modulus: Modulus of 0.3 MPa at -20°C, 0.05 MPa at 25°C, and 0.03 MPa at 85°C for superior flexibility
- Outstanding Adhesion: Excellent adhesion to metals, high-surface energy plastics, PET, stainless steel, and polyimide substrates
- Resilient Performance: Maintains performance under harsh conditions including high humidity and temperature extremes with minimal cockling
- Clean Removal: Easy removal on display side at high temperatures (75°C, 15 minutes) with excellent liner release properties
- Low Profile Design: Ultra-thin 75 micrometer (3 mil) thickness for minimal bulk without compromising performance
- Dust-Free Processing: Ideal for dust-free and particle-free lamination processes in manufacturing environments
Technical Specifications
| Specification |
Value |
| Product Number | 3M 74207NH |
| 3M ID | B5005551006 |
| Adhesive Type | High Performance Acrylic |
| Application | Bonding for Foldable OLED Displays |
| Total Tape Thickness (Imperial) | 3 mil |
| Total Tape Thickness (Metric) | 0.075 mm (75 micrometers) |
| Modulus at -20°C | 0.3 MPa |
| Modulus at 25°C | 0.05 MPa |
| Modulus at 85°C | 0.03 MPa |
| Product Color | Transparent |
| Compatible Substrates | Metals, HSE plastics, PET, Stainless Steel (SUS), Polyimide (PI) |
| Clean Removal Temperature | 75°C for 15 minutes |
| Industry | Electronics |
| Brand | 3M™ |
| Performance Conditions | High humidity and temperature extremes resistant |
Order 3M High Performance Clean Adhesive Transfer Tape 74207NH at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
