Professional-grade 3M EMI copper foil shielding tape with conductive acrylic adhesive, rated for 600V applications, featuring flame-retardant properties and UL/RoHS compliance for industrial electromagnetic interference protection.

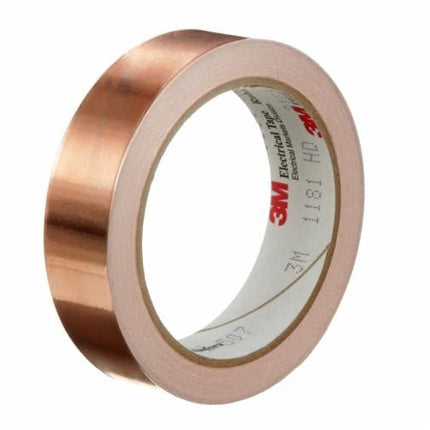

3M™ EMI Copper Foil Shielding Tape 1181 is a professional-grade conductive adhesive shielding tape engineered for demanding electromagnetic interference (EMI) shielding, grounding, and static charge draining applications. This specialized tape features a deadsoft copper foil backing combined with a pressure-sensitive, electrically conductive acrylic adhesive that ensures firm adherence and reliable point-to-point electrical contact. The tape is rated for 600V dry applications, making it suitable for a wide range of industrial and occupational uses in equipment, components, and shielded rooms.
The copper foil backing provides excellent resistance against oxidation and discoloration, ensuring long-term performance and reliability. The conductive particles embedded in the acrylic adhesive deliver low electrical resistance between the substrate and the backing, enabling effective EMI shielding. This flame-retardant tape comes on a removable liner for easy die cutting and handling, streamlining installation and customization for various applications. The product is UL Listed and RoHS 2011/65/EU Compliant, meeting stringent industry standards for safety and environmental responsibility.
Each case contains 9 rolls of tape, with each roll measuring 1 inch (25.4 mm) in width and 18 yards (16.5 meters) in length. The tape maintains its performance characteristics with a maximum operating temperature of 130°C and offers a 5-year shelf life. With a tensile strength of 44 N/cm and 20% elongation at break, this professional-grade tape delivers the durability and flexibility required for critical shielding applications in industrial settings.
Key Features
- Conductive acrylic adhesive ensures secure electrical contact and reliable point-to-point grounding
- Deadsoft copper foil backing with superior oxidation and discoloration resistance
- Rated for 600V dry applications with flame-retardant properties
- UL Listed and RoHS 2011/65/EU Compliant for industrial safety standards
- Removable liner backing enables easy die cutting and custom handling
- 5-year shelf life with maximum operating temperature of 130°C
- 44 N/cm tensile strength with 20% elongation for durability and flexibility
- Professional-grade construction for EMI shielding, grounding, and static charge draining
Technical Specifications
| Specification |
Value |
| Product Name | 3M EMI Copper Foil Shielding Tape 1181 |
| Part Number | 1181-1"X18YD |
| 3M ID | 7000132169 |
| UPC | 00054007274681 |
| Overall Width (Imperial) | 1 inch |
| Overall Width (Metric) | 25.4 mm |
| Overall Length (Imperial) | 18 yards |
| Overall Length (Metric) | 16.5 meters |
| Tape Thickness (without Liner) | 0.066 mm |
| Backing Material | Copper Foil |
| Adhesive Type | Conductive Acrylic |
| Product Color | Copper |
| Tensile Strength | 44 N/cm |
| Elongation at Break | 20% |
| Maximum Operating Temperature | 130°C |
| Voltage Rating | 600V (Dry Applications) |
| Tape Grade | Professional |
| Shelf Life | 5 Years |
| Flame Retardant | Yes |
| UL Listed | Yes |
| RoHS Compliant | 2011/65/EU |
| Quantity per Case | 9 rolls |
| Application | EMI Shielding, Grounding, Static Charge Draining |
| Liner | Removable |
| Brand | 3M™ |
Order 3M EMI Copper Foil Shielding Tape 1181 Conductive at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
