Professional-grade copper foil EMI shielding tape with acrylic adhesive for industrial grounding and electromagnetic interference protection. 3/8 inch x 18 yard rolls with embossed backing, 600V rated, UL Listed and RoHS compliant.

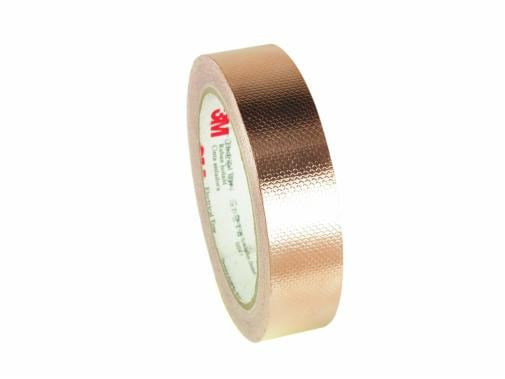

3M™ Embossed Copper Foil EMI Shielding Tape 1245 is a professional-grade acrylic adhesive EMI shielding tape designed for industrial and occupational applications requiring outstanding electrical conductivity and electromagnetic interference protection. This flame-retardant tape features embossed, deadsoft copper foil backing with pressure-sensitive acrylic adhesive that ensures firm adherence and stable contact resistance. The tape comes on a removable liner for easy die-cutting and handling, making it ideal for precision applications in equipment, components, and shielded rooms.
The embossed backing design cuts through the adhesive layer to establish direct contact between the backing and application substrate, providing excellent shielding effectiveness and reliable grounding. With a backing thickness of 1.6 mil (0.04 mm) and width of 3/8 inch (9.53 mm), each roll provides 18 yards (16.5 meters) of continuous coverage. The copper foil backing offers superior resistance against oxidation and discoloration, ensuring long-term performance and reliability in demanding industrial environments.
Rated for 600V dry applications, this tape is UL Listed and RoHS 2011/65/EU Compliant, meeting stringent industry standards for safety and environmental compliance. With a shelf life of 5 years and professional-grade construction, the 3M EMI Shielding Tape 1245 is the ideal choice for applications demanding superior electrical conductivity, EMI shielding, and grounding performance in industrial and occupational settings.
Key Features
- Embossed copper foil backing cuts through adhesive for reliable substrate contact and grounding
- Stable contact resistance with excellent EMI shielding effectiveness for equipment protection
- Flame-retardant construction suitable for grounding and shielding in sensitive applications
- Removable liner for easy die-cutting, handling, and precision application placement
- 600V dry rated with UL Listed and RoHS 2011/65/EU compliance for industrial standards
- Superior oxidation and discoloration resistance with 5-year shelf life
- Pressure-sensitive acrylic adhesive ensures firm, long-lasting adherence
Technical Specifications
| Specification |
Value |
| Product Type | EMI Shielding Tape |
| Brand | 3M™ |
| Model Number | 1245 |
| Part Number | 1245-3/8"X18YD |
| UPC Code | 00051138495916 |
| 3M ID | 7010350291 |
| Backing Material | Embossed Copper Foil, Deadsoft |
| Adhesive Type | Pressure-Sensitive Acrylic |
| Product Color | Copper |
| Overall Width (Imperial) | 3/8 inch (0.375 in) |
| Overall Width (Metric) | 9.53 mm |
| Overall Length (Imperial) | 18 yards |
| Overall Length (Metric) | 16.5 meters |
| Backing Thickness (Imperial) | 1.6 mil |
| Backing Thickness (Metric) | 0.04 mm |
| Total Tape Thickness without Liner (Metric) | 0.1016 mm |
| Tensile Strength (Metric) | 44 N/cm |
| Voltage Rating | 600V Dry Applications |
| Core Size | 3 inch Paper Core |
| Quantity per Case | 24 Rolls |
| Tape Grade | Professional |
| Shelf Life | 5 Years |
| Liner | Removable |
| Flame Retardant | Yes |
| Certifications | UL Listed, UL Recognized, RoHS 2011/65/EU Compliant |
| Applications | EMI Shielding, Grounding, Equipment Protection, Shielded Rooms |
| Use Type | Industrial/Occupational Use Only |
Order 3M Embossed Copper Foil EMI Shielding Tape 1245 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
