Premium 5 mil double coated tissue tape with high tack acrylic adhesive for superior bonding to HSE materials. Features excellent temperature, chemical and humidity resistance from -40°F to 150°F. 72 rolls per case, 1/2 inch width, 72 yards per roll. Ideal for industrial applications including bonding, end-tabbing, and foam attachment.

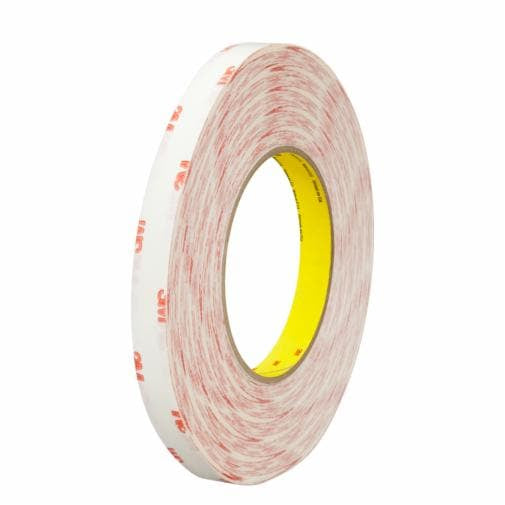

3M™ Double Coated Tissue Tape 9456 is a premium industrial-grade adhesive tape featuring a 5.0 mil thickness with high tack acrylic adhesive (Adhesive 340) on both sides. This versatile tape is specifically designed for demanding bonding applications requiring excellent adhesion to high surface energy (HSE) materials including plastics, foams, and other substrates. The tissue carrier provides exceptional dimensional stability and improved handling characteristics while maintaining the flexibility of a free film adhesive, making it ideal for precision applications that require consistent performance.
The tape features a 55# densified Kraft (DK) paper liner with a 3.2 mil thickness, which is compatible with rotary die cutting equipment for automated applications. With outstanding temperature, chemical, and humidity resistance, this tape performs reliably across a wide operating temperature range from -40°F (-40°C) to 150°F (66°C). The high initial adhesion and excellent shear strength of Adhesive 340 ensure superior bond strength and holding power, making it suitable for end-tabbing, bonding fabric to rigid cardboard, attaching foam to plastics, and closing chipboard mailers.
Each case contains 72 rolls of tape, with each roll measuring 1/2 inch (12.7 mm) in width and 72 yards (65.83 meters) in length. This product is specifically formulated for industrial and occupational use only and is not intended for consumer applications. It is widely used across multiple industries including paper, converter solutions, automotive, medical, general industrial, retail, print, point of purchase, and packaging sectors.
Key Features
- 5 mil double coated tape with tissue carrier for dimensional stability and improved handling
- High tack acrylic adhesive (340) with excellent initial adhesion and shear strength
- Good adhesion to high surface energy (HSE) materials including plastics and foams
- Superior temperature, chemical and humidity resistance operating from -40°F to 150°F
- 55# densified kraft paper liner compatible with rotary die cutting equipment
- Transparent clear color for discreet bonding applications
- Versatile applications including end-tabbing, fabric bonding, foam attachment and mailer closure
- Suitable for multiple industries: automotive, medical, packaging, paper and general industrial
Technical Specifications
| Specification |
Value |
| Product Number | 9456 |
| Adhesive Type | High Tack Acrylic Adhesive 340 |
| Carrier Material | Tissue |
| Overall Width (Imperial) | 0.5 in |
| Overall Width (Metric) | 12.7 mm |
| Overall Length (Imperial) | 72 yd |
| Overall Length (Metric) | 65.83 m |
| Total Tape Thickness without Liner (Imperial) | 4 mil |
| Total Tape Thickness without Liner (Metric) | 0.1 mm |
| Face Side Adhesive Thickness (Imperial) | 2 mil |
| Face Side Adhesive Thickness (Metric) | 0.05 mm |
| Back Side Adhesive Thickness (Imperial) | 2 mil |
| Back Side Adhesive Thickness (Metric) | 0.051 mm |
| Primary Liner Material | 55# Densified Kraft Paper (DK) |
| Primary Liner Thickness (Imperial) | 3.5 mil |
| Primary Liner Thickness (Metric) | 0.09 mm |
| Primary Liner Color | White |
| Product Color | Transparent/Clear |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 180°F |
| Maximum Operating Temperature (Celsius) | 82°C |
| Product Form | Roll |
| Smallest Saleable Unit | Roll |
| Units per Case | 72 Rolls |
| Indoor/Outdoor Rating | Indoor/Outdoor |
| UPC Code | 00021200406102 |
| 3M ID | 7010312376 |
Order 3M Double Coated Tissue Tape 9456 Clear 1/2 in x 72 yd at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
