Premium 5 mil double coated tissue tape with high-tack acrylic adhesive for industrial bonding. Features excellent adhesion to HSE materials, wide temperature range, and superior chemical resistance. Ideal for foam-to-plastic bonding, fabric attachment, and general industrial applications. Case of 48 rolls.

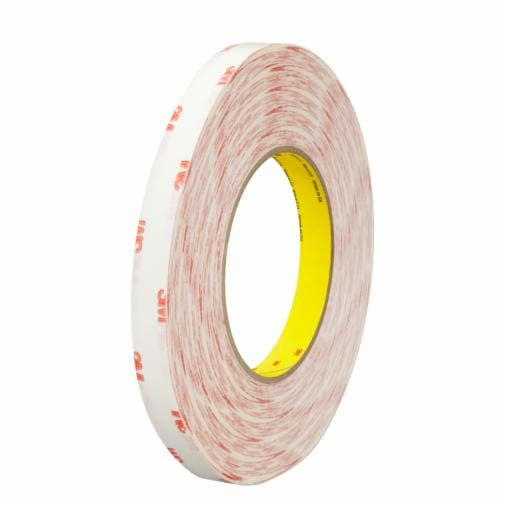

3M™ Double Coated Tissue Tape 9456 is a high-performance 5 mil double coated tape with tissue carrier designed for industrial bonding and joining applications. This premium adhesive tape features 3M's proprietary Adhesive 340, a high-tack acrylic formulation that delivers excellent initial adhesion and superior shear holding power. The tape is specifically engineered for applications requiring strong adhesion to high surface energy (HSE) materials including plastics, foams, and rigid substrates. The tissue carrier provides dimensional stability and improved handling characteristics while maintaining the flexibility of a free film adhesive, making it ideal for precision applications.
The 9456 tape is constructed with a 55# densified kraft paper (DK) liner that is fully compatible with rotary die cutting equipment, making it suitable for high-volume converter and packaging applications. Operating across a wide temperature range from -40°F (-40°C) to 150°F (66°C), this tape demonstrates excellent chemical and humidity resistance, ensuring reliable performance in demanding work conditions. The transparent color and 0.75-inch width make it suitable for both visible and hidden bonding applications across multiple industries including automotive, medical, packaging, paper converting, retail, and general industrial manufacturing.
This case contains 48 rolls of 72-yard length tape, providing substantial coverage for production environments. The double-coated construction means adhesive is applied to both sides of the tissue carrier, with the peel-away liner protecting the adhesive until application. Recommended applications include end-tabbing, bonding fabric to rigid cardboard, attaching foam to plastics, closing chipboard mailers, and general industrial joining and bonding tasks. The combination of high initial tack, good shear strength, and excellent environmental resistance makes this tape an excellent choice for converters and manufacturers seeking reliable bonding solutions.
Key Features
- 5 mil double coated tape with tissue carrier for dimensional stability and improved handling
- High-tack acrylic adhesive (Adhesive 340) delivers excellent initial adhesion and shear strength
- Superior adhesion to high surface energy (HSE) materials including plastics, foams, and cardboard
- Wide operating temperature range from -40°F to 150°F with excellent chemical and humidity resistance
- 55# densified kraft paper liner compatible with rotary die cutting equipment for converter applications
Technical Specifications
| Specification |
Value |
| Product Type | Double Coated Tissue Tape |
| Model Number | 9456 |
| Brand | 3M |
| Adhesive Type | High Tack Acrylic Adhesive 340 |
| Backing Material | Tissue |
| Overall Width (Imperial) | 0.75 inches |
| Overall Width (Metric) | 19.05 mm |
| Overall Length (Imperial) | 72 yards |
| Overall Length (Metric) | 65.83 meters |
| Total Tape Thickness without Liner (Imperial) | 4 mil |
| Total Tape Thickness without Liner (Metric) | 0.1 mm |
| Face Side Adhesive Thickness (Imperial) | 2 mil |
| Face Side Adhesive Thickness (Metric) | 0.05 mm |
| Back Side Adhesive Thickness (Imperial) | 2 mil |
| Back Side Adhesive Thickness (Metric) | 0.051 mm |
| Primary Liner Material | 55# Densified Kraft Paper (DK) |
| Primary Liner Thickness (Imperial) | 3.5 mil |
| Primary Liner Thickness (Metric) | 0.09 mm |
| Primary Liner Color | White |
| Product Color | Transparent/Clear |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 180°F |
| Maximum Operating Temperature (Celsius) | 82°C |
| Product Form | Roll |
| Smallest Saleable Unit | Roll |
| Units per Case | 48 rolls |
| Indoor/Outdoor | Indoor/Outdoor |
| Part Number | 9456 |
| 3M Product Number | 9456 |
| 3M ID | 7010373847 |
| UPC Code | 00021200406119 |
Order 3M Double Coated Tissue Tape 9456 Clear 0.75 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
