Premium double-coated industrial adhesive tape with PET carrier, solvent-free acrylic adhesive, and heavy-duty kraft liner for superior bonding on plastics, foams, and wood substrates.

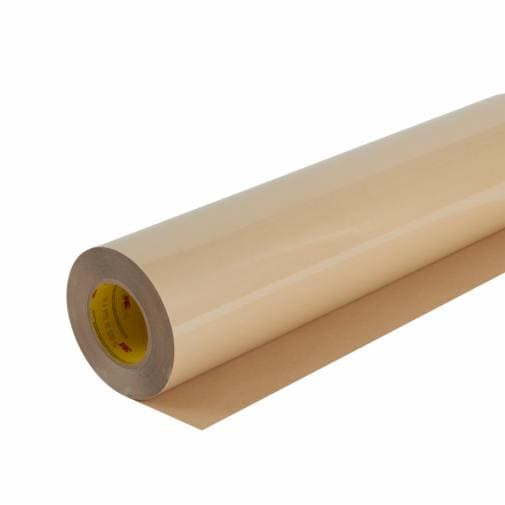

3M™ Double Coated Tape 9832HL+ is a premium industrial-grade adhesive tape designed for high-performance bonding applications across diverse substrates. This professional-grade tape features a thin polyester film (PET) carrier that provides exceptional dimensional stability and improved handling during slitting and die-cutting operations. The tape offers excellent initial adhesion and reliable holding power on a wide variety of materials including particle board, melamine, HPL, wood, plywood, plastics, and foam substrates.
The tape utilizes a solvent-free acrylic adhesive (300MP+) formulation that delivers consistent, permanent bonding with excellent shear strength at elevated temperatures. It features a heavy 83 lb. polycoated kraft paper liner that enhances handling capabilities and makes it ideal for die-cutting and laminating applications. With temperature performance up to 250°F (121°C) for short-term exposure and up to 150°F (66°C) for long-term exposure, this tape is suitable for demanding industrial environments.
3M™ Double Coated Tape 9832HL+ serves as an effective alternative to traditional fastening methods such as glue, screws, and rivets. It is commonly used in general-purpose foam lamination, edge banding, gasket attachment, and melamine bonding applications. The product is specifically formulated for industrial and occupational use, making it an essential solution for manufacturers and converters seeking reliable bonding performance.
Key Features
- Excellent adhesion to wide variety of substrates including plastics, foams, wood, and melamine
- Polyester film (PET) carrier provides dimensional stability and improved handling during die-cutting
- Heavy 83 lb. polycoated kraft paper liner for superior die-cutting and converting process capability
- Solvent-free acrylic adhesive (300MP+) with excellent shear strength at elevated temperatures
- Temperature performance up to 250°F (121°C) short-term and 150°F (66°C) long-term exposure
- Ideal for foam lamination, edge banding, gasket attachment, and melamine bonding applications
- 24-month shelf life for extended storage and availability
- Industrial-grade formulation for professional manufacturing and converting applications
Technical Specifications
| Specification |
Value |
| Product Number | 9832HL+ |
| 3M ID | 7100308765 |
| Adhesive Type | Acrylic Adhesive 300MP+ |
| Back Side Adhesive Type | Acrylic Adhesive 300MP+ |
| Backing (Carrier) Material | Polyester Film (PET) |
| Backing (Carrier) Thickness | 0.5 mil (0.013 mm) |
| Face Side Adhesive Thickness | 2.3 mil (0.058 mm) |
| Back Side Adhesive Thickness | 2 mil (0.05 mm) |
| Total Tape Thickness without Liner | 4.8 mil (0.12 mm) |
| Primary Liner | 83# Polycoated Kraft Paper |
| Primary Liner Color | Tan |
| Primary Liner Thickness | 6.2 mil (0.157 mm) |
| Product Color | Transparent/Clear |
| Application | Bonding |
| Industries | General Industrial |
| Brand | 3M™ |
| Temperature Performance (Short-term) | 250°F (121°C) |
| Temperature Performance (Long-term) | 150°F (66°C) |
| Shelf Life | 24 Months |
| Smallest Saleable Unit | Roll |
| Recommended Applications | General purpose foam lamination, edge banding, gasket attachment, melamine bonding |
| Substrate Compatibility | Particle board, melamine, HPL, wood, plywood, plastics, foam |
| Use Classification | Industrial/Occupational use only - Not for consumer sale or use |
