Industrial-grade double coated acrylic tape with 0.5 mil polyester carrier, 54 inches wide by 60 yards long, designed for foam lamination, gasket attachment, and plastic bonding with high initial adhesion and excellent shear strength.

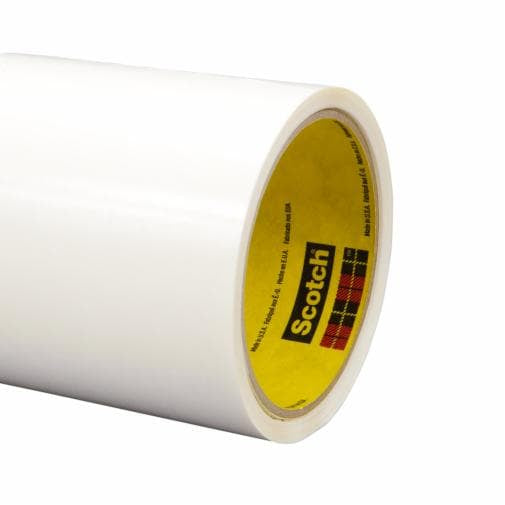

3M™ Double Coated Tape 9828 is a premium industrial adhesive tape featuring a thin, consistent film carrier with medium-firm acrylic adhesive formulation. This professional-grade tape is specifically engineered for applications requiring high initial adhesion and excellent holding power across a wide variety of materials, including high surface energy (HSE) plastics and foam substrates. The tape combines a 0.5 mil clear polyester (PET) film carrier that provides dimensional stability with 3M™ Adhesive 340 applied at 1.5 mils on the liner side and 2.0 mils on the face side for optimal wet-out and bonding performance.
The 54-inch width and 60-yard length configuration makes this tape ideal for industrial lamination, gasket attachment, and fabricated parts assembly. The white 55# densified kraft paper liner is specifically compatible with rotary die-cutting equipment, enabling efficient conversion and application processes. This double coated tape operates effectively in both indoor and outdoor environments with a maximum operating temperature of 120°F (49°C) and minimum temperature of -40°F, ensuring reliable performance across diverse manufacturing conditions.
Designed for industrial and occupational use, 3M™ Double Coated Tape 9828 offers significant advantages over traditional mechanical fasteners or liquid adhesives, including even regular bonding without gaps, reduced corrosion risk, rapid application capability, more flexible product design options, and superior aesthetic appearance. The tape's versatility makes it an essential solution for automotive, aerospace, electronics, and general industrial manufacturing applications requiring dependable, long-term adhesive bonding.
Key Features
- Medium-firm acrylic adhesive delivers superior adhesion to plastics, foams, and high surface energy substrates
- 0.5 mil clear polyester film carrier adds dimensional stability and improved handling during die-cutting operations
- Dual adhesive coating with 1.5 mil on liner side and 2.0 mil on face side for optimal wet-out and bonding
- 55# densified kraft paper liner compatible with rotary die-cutting equipment for efficient conversion
- Operates effectively in both indoor and outdoor environments with temperature range from -40°F to 120°F
Technical Specifications
| Specification |
Value |
| Product Number | 9828 |
| 3M ID | 7010536062 |
| Overall Width (Imperial) | 54 inches |
| Overall Width (Metric) | 137 centimeters |
| Overall Length (Imperial) | 60 yards |
| Overall Length (Metric) | 54.86 meters |
| Core Size (Imperial) | 3 inches |
| Core Size (Metric) | 76.2 millimeters |
| Carrier Type | 0.5 mil clear polyester (PET) film |
| Carrier Thickness (Imperial) | 0.5 mil |
| Carrier Thickness (Metric) | 0.013 millimeters |
| Total Tape Thickness without Liner (Imperial) | 3.3 mil |
| Total Tape Thickness without Liner (Metric) | 0.084 millimeters |
| Adhesive Type | 3M Adhesive 340 acrylic |
| Back Side Adhesive Thickness (Imperial) | 1.5 mil |
| Back Side Adhesive Thickness (Metric) | 0.038 millimeters |
| Face Side Adhesive Thickness (Imperial) | 2.0 mil |
| Face Side Adhesive Thickness (Metric) | 0.051 millimeters |
| Primary Liner Material | 55# Densified Kraft Paper |
| Primary Liner Color | White |
| Primary Liner Thickness (Imperial) | 3.2 mil |
| Primary Liner Thickness (Metric) | 0.08 millimeters |
| Product Color | Transparent/Clear |
| Maximum Operating Temperature (Fahrenheit) | 120°F |
| Maximum Operating Temperature (Celsius) | 49°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Indoor/Outdoor Use | Both |
| Automotive OEM Specification | Ford WSS-M11P62 |
| Smallest Saleable Unit | Roll |
| Brand | 3M™ |
