Description

Shop 3M Double Coated Tape 9828 Clear 54in 250yd In Iraq Best Prices

Premium industrial double-coated tape with 3M™ Adhesive 340 for superior bonding on plastics and foams. 54 inches wide, 250 yards long, 4 mil thickness with clear polyester carrier. Temperature rated -40°F to 120°F. Ideal for foam lamination, fabricated parts, and gasket attachment.

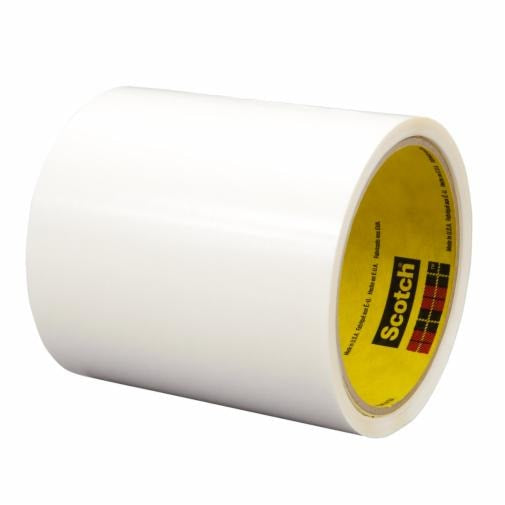

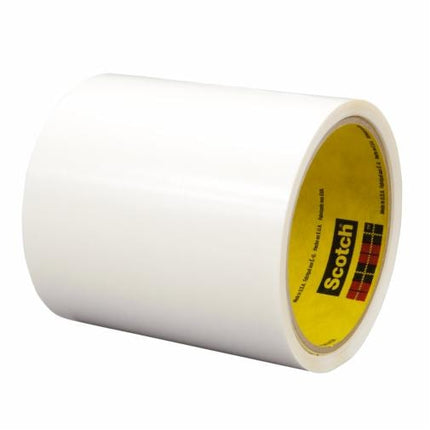

3M™ Double Coated Tape 9828 is a premium industrial adhesive tape featuring a thin film carrier and medium-firm acrylic adhesive (3M™ Adhesive 340) that delivers excellent bonding performance on a wide range of materials including plastics and foams. The tape measures 54 inches in width and 250 yards in length with a total thickness of 4 mil, making it ideal for high-volume industrial applications requiring consistent, reliable adhesion. This double-coated tape features a 0.5 mil clear polyester (PET) film carrier that provides dimensional stability and improved handling during slitting and die-cutting operations. The 55# densified kraft paper liner is white and compatible with rotary die-cutting equipment, ensuring seamless integration into automated manufacturing processes. With adhesive applied at 1.5 mils on the liner side and 2.0 mils on the face side, the tape delivers high initial adhesion and excellent holding power to high surface energy (HSE) substrates. The tape operates reliably across a wide temperature range from -40°F to 120°F (-40°C to 49°C), making it suitable for both indoor and outdoor applications. Recommended for general purpose foam lamination, fabricated parts lamination, and gasket attachment, 3M™ Double Coated Tape 9828 offers a thin, consistent alternative to traditional glues and mechanical fasteners. It conforms to Ford WSS-M11P62 automotive OEM specifications and is widely used in automotive, medical, packaging, and general industrial markets.

Key Features

Medium-firm acrylic adhesive (3M™ Adhesive 340) delivers high initial adhesion and excellent holding power
0.5 mil clear polyester (PET) film carrier provides dimensional stability and improved handling during processing
55# densified kraft paper liner compatible with rotary die-cutting equipment for automated manufacturing
Double-sided adhesive coating (1.5 mil liner side, 2.0 mil face side) ensures effective wet-out and bonding
Wide temperature range operation from -40°F to 120°F suitable for indoor and outdoor applications
Bonds effectively to high surface energy (HSE) plastics, foams, fabrics, and various industrial substrates
Conforms to Ford WSS-M11P62 automotive OEM specifications for quality assurance
Single roll per case configuration (1 Roll/Case) for convenient packaging and storage

Technical Specifications

Specification	Value
Product Type	Double Coated Tape
Brand	3M™
Part Number	9828
UPC Code	00021200599088
3M ID	7010374033
Overall Width (Imperial)	54 inches
Overall Width (Metric)	137 centimeters
Overall Length (Imperial)	250 yards
Overall Length (Metric)	228.6 meters
Carrier Material	Polyester Film (PET)
Carrier Thickness (Imperial)	0.5 mil
Carrier Thickness (Metric)	0.013 millimeters
Total Tape Thickness without Liner (Imperial)	3.3 mil
Total Tape Thickness without Liner (Metric)	0.084 millimeters
Overall Thickness (Imperial)	3.3 mil
Back Side Adhesive Thickness (Imperial)	1.5 mil
Back Side Adhesive Thickness (Metric)	0.038 millimeters
Face Side Adhesive Thickness (Imperial)	2.0 mil
Face Side Adhesive Thickness (Metric)	0.051 millimeters
Adhesive Type	3M™ Adhesive 340 (High Tack Acrylic)
Back Side Adhesive Type	High Tack Acrylic Adhesive 340
Face Side Adhesive Type	High Tack Acrylic Adhesive 340
Primary Liner Material	55# Densified Kraft Paper (DK)
Primary Liner Color	White
Primary Liner Thickness (Imperial)	3.2 mil
Primary Liner Thickness (Metric)	0.08 millimeters
Core Size (Imperial)	3 inches
Core Size (Metric)	76.2 millimeters
Product Color	Transparent/Clear
Product Form	Roll
Units per Case	1 Roll
Smallest Saleable Unit	Roll
Maximum Operating Temperature (Fahrenheit)	120°F
Maximum Operating Temperature (Celsius)	49°C
Minimum Operating Temperature (Fahrenheit)	-40°F
Indoor/Outdoor	Both
Automotive OEM Specification	Ford WSS-M11P62
Industries	Automotive, Converter Solutions, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Retail
Recommended Applications	General purpose foam lamination, fabricated parts lamination, gasket attachment
Master Size Length (Metric)	164.6 meters
Master Size Width (Metric)	137 centimeters

Order 3M Double Coated Tape 9828 Clear 54in 250yd at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
