Premium industrial double-coated polyester film tape with medium-firm acrylic adhesive, designed for foam lamination, fabric attachment, and gasket bonding. 54 inches wide, 250 yards long, temperature range -40°F to 120°F, compatible with rotary die-cutting equipment.

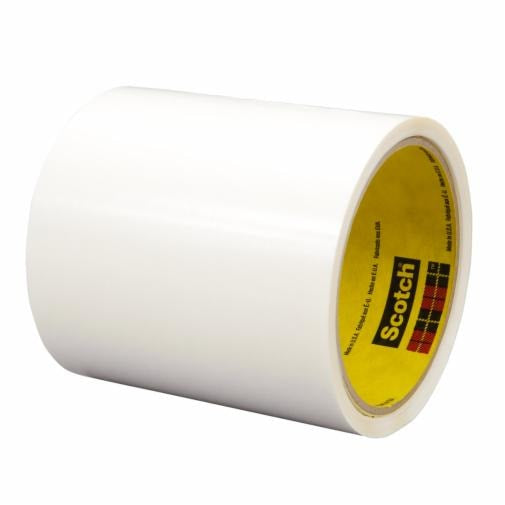

3M™ Double Coated Tape 9828 is a premium industrial adhesive tape featuring a thin, consistent polyester film carrier with medium-firm acrylic adhesive (Adhesive 340) applied to both sides. This professional-grade tape is specifically engineered for applications requiring high initial adhesion and excellent holding power across a wide variety of materials, particularly high surface energy (HSE) plastics and foams. The tape measures 54 inches wide by 250 yards long with a total thickness of 3.3 mils, making it ideal for foam lamination, fabric attachment, and gasket bonding in demanding industrial environments.
The 0.5 mil clear polyester (PET) film carrier provides exceptional dimensional stability and improved handling during slitting and die-cutting operations, while the 55# densified kraft paper liner ensures compatibility with rotary die-cutting equipment. With 1.5 mils of adhesive on the back side and 2.0 mils on the face side, this double-coated configuration delivers consistent, effective wet-out and superior bonding performance. The tape operates reliably at temperatures from -40°F to 120°F (-40°C to 49°C), making it suitable for both indoor and outdoor applications across automotive, medical, packaging, and general industrial sectors.
This industrial-use tape offers significant advantages over traditional mechanical fasteners and liquid adhesives, including even, regular bonding without gaps, reduced corrosion risk, fast application, more flexible product design options, and improved aesthetic appearance. Each case contains one 54-inch by 250-yard roll, with a 3-inch core size, providing substantial coverage for high-volume production environments. The product meets Ford WSS-M11P62 automotive OEM specifications and is protected by comprehensive regulatory documentation and technical support from 3M's Industrial Adhesives and Tapes Division.
Key Features
- Medium-firm acrylic adhesive (Adhesive 340) delivers excellent adhesion to plastics, foams, and high surface energy (HSE) substrates
- 0.5 mil clear polyester (PET) film carrier provides dimensional stability and improved handling during slitting and die-cutting operations
- 55# densified kraft paper liner compatible with rotary die-cutting equipment for efficient processing
- Double-sided adhesive coating with 1.5 mils on back and 2.0 mils on face side ensures consistent, effective wet-out and superior bonding
- Long-term temperature performance range from -40°F to 120°F suitable for both indoor and outdoor industrial applications
Technical Specifications
| Specification |
Value |
| Product Number | 9828 |
| Part Number | 9828 |
| UPC Code | 00021200442971 |
| 3M ID | 7010379075 |
| Overall Width (Imperial) | 54 inches |
| Overall Width (Metric) | 137 cm |
| Overall Length (Imperial) | 250 yards |
| Overall Length (Metric) | 228.6 meters |
| Total Tape Thickness without Liner (Imperial) | 3.3 mils |
| Total Tape Thickness without Liner (Metric) | 0.084 mm |
| Backing/Carrier Material | Polyester Film (PET) |
| Carrier Thickness (Imperial) | 0.5 mil |
| Carrier Thickness (Metric) | 0.013 mm |
| Product Color | Transparent/Clear |
| Adhesive Type | Adhesive 340 - High Tack Acrylic |
| Back Side Adhesive Thickness (Imperial) | 1.5 mils |
| Back Side Adhesive Thickness (Metric) | 0.038 mm |
| Face Side Adhesive Thickness (Imperial) | 2.0 mils |
| Face Side Adhesive Thickness (Metric) | 0.051 mm |
| Primary Liner Material | 55# Densified Kraft Paper (DK) |
| Primary Liner Color | White |
| Primary Liner Thickness (Imperial) | 3.2 mils |
| Primary Liner Thickness (Metric) | 0.08 mm |
| Core Size (Imperial) | 3 inches |
| Core Size (Metric) | 76.2 mm |
| Maximum Operating Temperature (Fahrenheit) | 120°F |
| Maximum Operating Temperature (Celsius) | 49°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Product Form | Roll |
| Units per Case | 1 Roll |
| Smallest Saleable Unit | Roll |
| Indoor/Outdoor Use | Both |
| Automotive OEM Specification | Ford WSS-M11P62 |
| Brand | 3M™ |
| Industries | Automotive, Converter Solutions, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Retail |
| Recommended Applications | General purpose foam lamination, fabric attachment, gasket attachment, fabricated parts lamination |
| Master Size Length (Metric) | 164.6 meters |
| Master Size Width (Metric) | 137 cm |
Order 3M Double Coated Tape 9828 Clear 54in x 250yd at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
