Professional-grade double-coated tape with 0.5 mil clear polyester carrier and medium-firm acrylic adhesive, delivering high initial adhesion and excellent shear strength for HSE plastics, foams, and industrial bonding applications. 24 rolls per case.

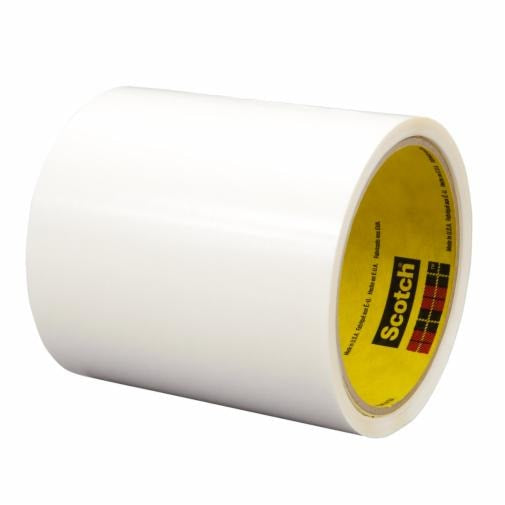

3M™ Double Coated Tape 9828 is a premium industrial adhesive tape featuring a thin 0.5 mil clear polyester (PET) film carrier with medium-firm acrylic adhesive (Adhesive 340) applied to both sides. This professional-grade tape delivers exceptional bonding performance on a wide range of materials including high surface energy (HSE) plastics, foams, fabrics, and gaskets. The innovative design combines high initial adhesion with excellent shear holding power, making it ideal for demanding industrial applications where reliable, long-lasting bonds are critical.
The tape is engineered with precision-coated adhesive layers: 1.5 mils on the liner side and 2.0 mils on the face side for optimal wet-out and coverage. The 55# densified kraft paper liner is white in color and specifically designed to be compatible with rotary die-cutting equipment, enabling efficient processing and conversion. With a maximum operating temperature of 120°F (49°C) and minimum temperature of -40°F, this tape maintains performance across diverse environmental conditions. Each case contains 24 rolls, providing substantial inventory for high-volume manufacturing and assembly operations.
This double-coated tape offers significant advantages over traditional mechanical fasteners and liquid adhesives, including even, gap-free bonding, reduced corrosion risk, rapid application, flexible product design capabilities, and superior aesthetic results. The clear polyester carrier adds dimensional stability while improving handling during slitting and die-cutting operations. Ideal for foam lamination, fabricated parts assembly, gasket attachment, and general industrial bonding applications across automotive, electronics, medical device, packaging, and general manufacturing sectors.
Key Features
- Medium-firm acrylic adhesive (3M Adhesive 340) delivers excellent adhesion to plastics, foams, and HSE substrates
- 0.5 mil clear polyester (PET) film carrier provides dimensional stability and improved handling during slitting and die-cutting
- Dual-sided adhesive coating: 1.5 mils on liner side and 2.0 mils on face side for optimal wet-out
- 55# densified kraft paper liner compatible with rotary die-cutting equipment for efficient processing
- Long-term temperature performance up to 120°F (49°C) with minimum operating temperature of -40°F
- High initial adhesion and superior shear holding power for reliable long-term bonding
- Even, gap-free bonding eliminates corrosion risk compared to mechanical fasteners
- Suitable for foam lamination, fabricated parts assembly, and gasket attachment applications
- Clear transparent design maintains aesthetic appearance on visible surfaces
- Case contains 24 rolls for high-volume manufacturing and production efficiency
Technical Specifications
| Specification |
Value |
| Part Number | 9828 |
| 3M Product Number | 9828 |
| 3M ID | 7010334478 |
| UPC | 00021200445514 |
| Adhesive Type | 3M Adhesive 340 - Medium-firm Acrylic |
| Backing/Carrier Material | Polyester Film (PET) |
| Carrier Thickness | 0.5 mil (0.013 mm) |
| Product Color | Transparent/Clear |
| Overall Width | 2 inches (50.8 mm) |
| Overall Length | 60 yards (54.86 meters) |
| Total Tape Thickness without Liner | 3.3 mil (0.084 mm) |
| Overall Thickness with Liner | 3.3 mil |
| Back Side Adhesive Thickness | 1.5 mil (0.038 mm) |
| Face Side Adhesive Thickness | 2.0 mil (0.051 mm) |
| Primary Liner Material | 55# Densified Kraft Paper (DK) |
| Primary Liner Color | White |
| Primary Liner Thickness | 3.2 mil (0.08 mm) |
| Core Size | 3 inches (76.2 mm) |
| Product Form | Roll |
| Units per Case | 24 rolls |
| Smallest Saleable Unit | Roll |
| Maximum Operating Temperature | 120°F (49°C) |
| Minimum Operating Temperature | -40°F |
| Indoor/Outdoor Use | Both |
| Automotive OEM Specification | Ford WSS-M11P62 |
| Master Roll Size Length | 164.6 meters |
| Master Roll Size Width | 137 cm (54 inches) |
| Industries | Automotive, Converter Solutions, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Retail |
| Recommended Applications | General purpose foam lamination, fabricated parts lamination, gasket attachment |
| Substrate Compatibility | HSE Plastics, Foams, Fabrics, Gaskets, Metal, Glass, Composites |
