Professional double-coated splicing tape with high-tack acrylic adhesive for industrial web processing applications. Clear 48mm x 55m rolls with excellent temperature performance and superior adhesion strength.

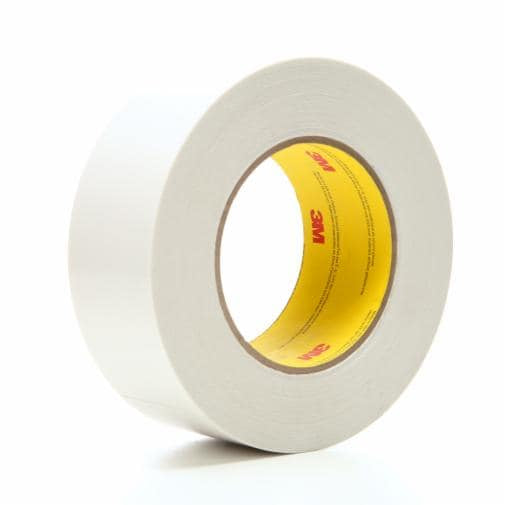

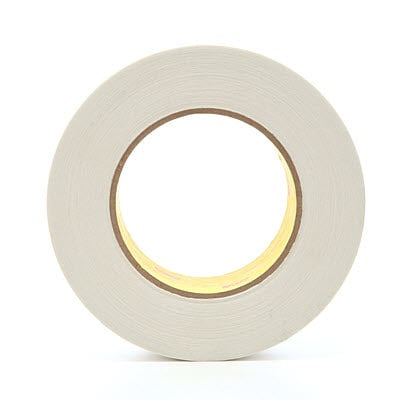

3M™ Double Coated Tape 9738 is a professional-grade double-sided tape specifically engineered for high-speed splicing applications in industrial web processing environments. This 4.3 mil thick tape features a non-woven tissue carrier mounted on a 55 lb. densified kraft paper liner, providing exceptional ease of release and manipulation during application. The pressure-sensitive acrylic adhesive delivers a superior balance of high initial adhesion and excellent holding power, making it ideal for demanding manufacturing operations.
The tape offers outstanding performance across a broad temperature range, with short-term capability up to 300°F (149°C) and extended performance up to 260°F (127°C) for days or weeks. Its versatile adhesion properties bond exceptionally well to kraft and coated papers, plastic films, and other continuous web materials. Available in both clear and red variants, the red option provides visible splicing identification for quality control and traceability purposes. The product is supplied in convenient 24-roll cases, making it practical for high-volume industrial operations.
Designed for industrial and occupational use only, this tape represents 3M's commitment to providing reliable solutions for paper mills, printing facilities, film converters, and other web processing industries. The excellent peel, tack, and shear strength characteristics ensure the tape withstands rigorous splicing applications without failure, while good moisture resistance guarantees consistent performance in diverse environmental conditions.
Key Features
- High-speed flying splice capability for maximum production efficiency
- High-tack acrylic adhesive with broad temperature range performance
- Excellent peel, tack, and shear strength for rigorous applications
- Superior adhesion to kraft paper, coated papers, and plastic films
- Good moisture resistance for consistent performance in varied environments
- Non-woven tissue carrier on densified kraft paper liner for easy release
- Available in clear and red for visibility and traceability options
- Short-term temperature capability to 300°F and extended use to 260°F
- Suitable for zero-speed and general splicing applications
- 24-roll case packaging for industrial volume requirements
Technical Specifications
| Specification |
Value |
| Product Number | 9738 |
| 3M ID | 7000029049 |
| UPC Code | 00051115316579 |
| Overall Width (Metric) | 48 mm |
| Overall Width (Imperial) | 1.9 inches |
| Overall Length (Metric) | 55 meters |
| Overall Length (Imperial) | 60.15 yards |
| Total Tape Thickness without Liner (Metric) | 0.11 mm |
| Total Tape Thickness without Liner (Imperial) | 4.3 mil |
| Backing/Carrier Material | Non-woven tissue |
| Carrier Thickness (Imperial) | 1.3 mil |
| Carrier Thickness (Metric) | 0.033 mm |
| Tissue Carrier Thickness (Metric) | 0.013 mm |
| Primary Liner | 55# Densified Kraft Paper (DK) |
| Primary Liner Color | White |
| Adhesive Type | Pressure-sensitive acrylic |
| Face Side Adhesive Type | Acrylic |
| Number of Adhesive Sides | Double-sided |
| Product Color | Clear/Transparent |
| Product Form | Roll |
| Tape Type | Double Coated |
| Application Type | Zero-Speed and General Splicing |
| Maximum Operating Temperature (Short-term) | 300°F (149°C) |
| Maximum Operating Temperature (Extended) | 260°F (127°C) for days or weeks |
| Units per Case | 24 rolls |
| Recommended Applications | High-speed flying splices, zero speed splices, core starting, splicing films, foils and corrugated paper |
| Industries | Appliance, Automotive, Electronics, General Industrial, Medical, Specialty Vehicles, Transportation |
| Brand | 3M |
| Suitable Substrates | Kraft paper, coated papers, plastic films, foils, corrugated paper |
| Use Classification | Industrial/Occupational use only |
Order 3M Double Coated Tape 9738 Clear 48mm x 55m at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
